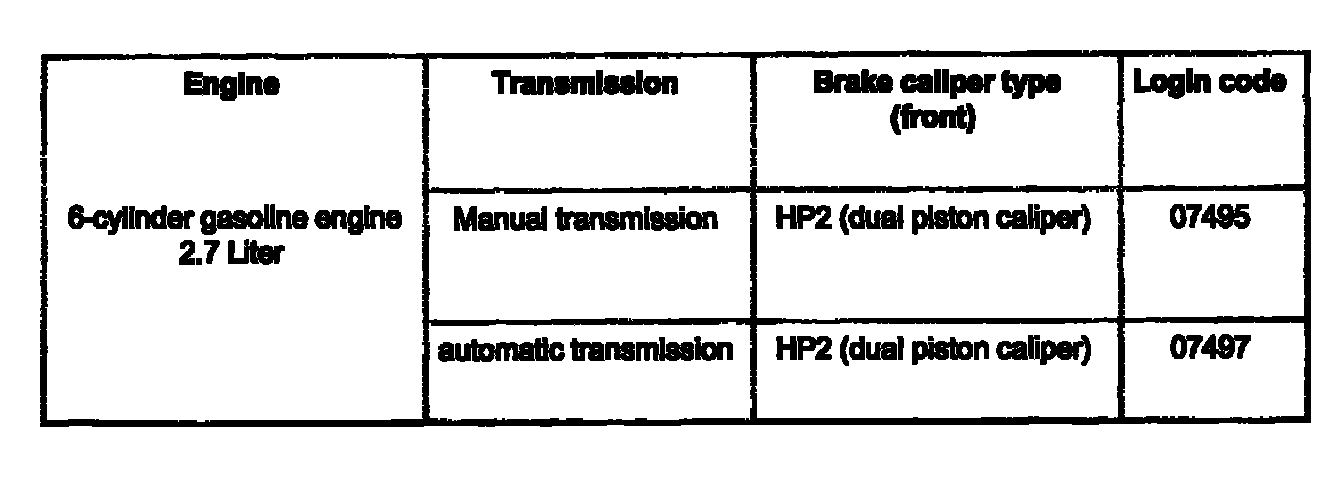

ESP Login Coding Table

Coding control module

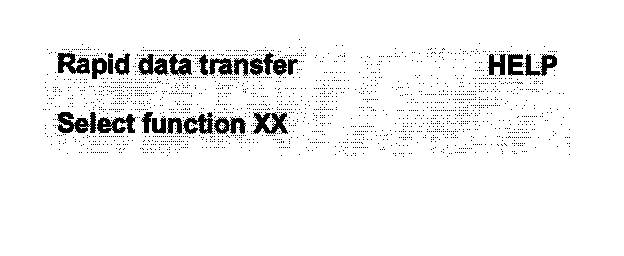

Indicated on display
- Press buttons -0- and -7- to select function "Code Control Module" and confirm with -Q button.

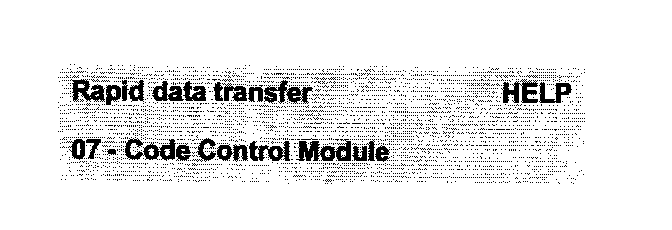

Indicated on display
- Press -Q- button to confirm input.

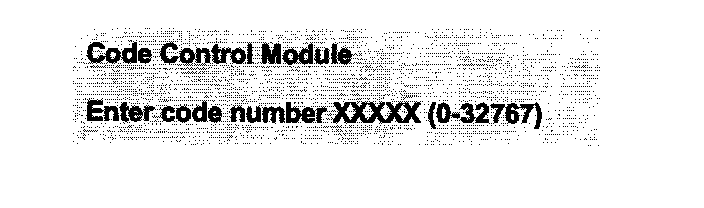

Indicated on display
- Enter the required code number according to the table and confirm entry with -Q- button.
