Fastener Tightening Specifications - Controls, Housing

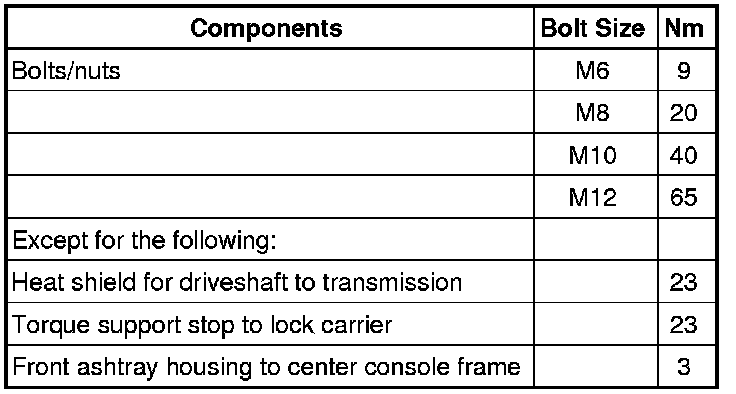

Fastener Tightening Specifications

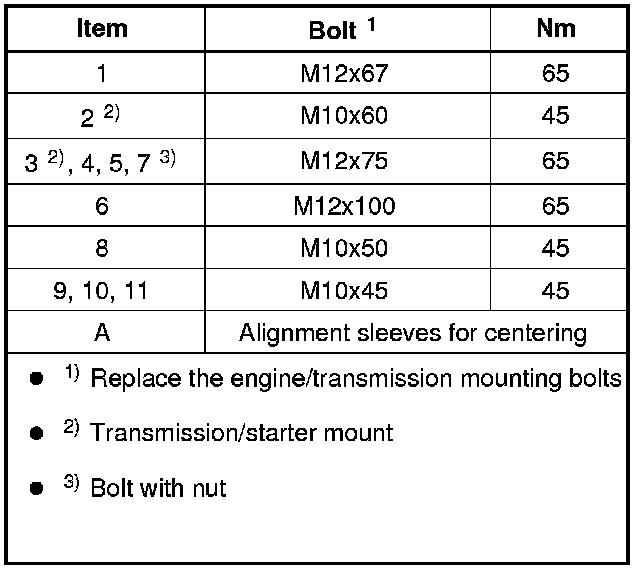

3.0L Torque specification, securing engine/transmission (transmission flange pattern)

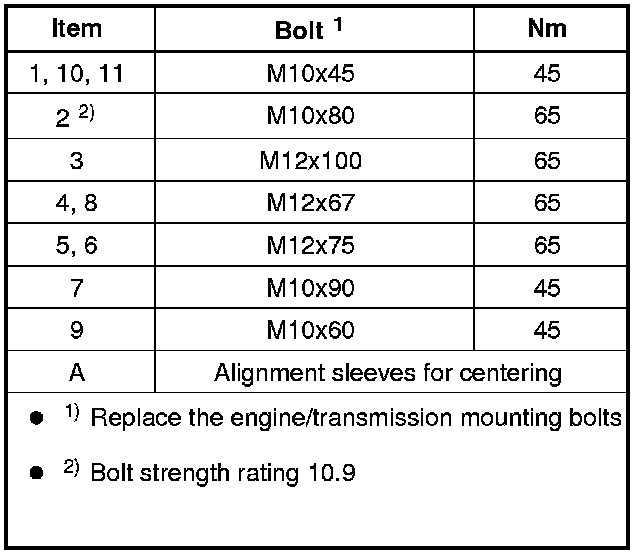

3.2L Torque specification, securing engine/transmission (transmission flange pattern)
