Fuel Injection System Component Location Overview






Fuel Injection System Component Location Overview

Components A through G are not depicted in the exploded view illustration.






1 - Heated Oxygen Sensor (HO2S) (G39) and Oxygen Sensor (O2S) Heater (Z19)

Component location, refer to => [ Heated Oxygen Sensor ]

Removing and installing, refer to => [ Heated Oxygen Sensor (G39) and Oxygen Sensor Heater (Z19) ] Heated Oxygen Sensor (G39) and Oxygen Sensor Heater (Z19)

2 - Connector

For the HO2S and O2S heater

Component location => [ Heated Oxygen Sensor ]

3 - Oxygen Sensor (O2S) after Three Way Catalytic Converter (TWC) (G130) and heater for O2S 1 after catalytic converter (Z29)

Component location, refer to => [ Heated Oxygen Sensor ]

Removing and installing, refer to => [ Oxygen Sensor after Three Way Catalytic Converter (G130) and Heater for Oxygen Sensor 1 after Catalytic Converter (Z29) ] Oxygen Sensor After Three Way Catalytic Converter (G130) and Heater For Oxygen Sensor 1 After Catalytic Converter (Z29)

4 - Fuel Pressure Regulator Valve (N276)

Component location, refer to => [ High Pressure Pump ]

5 - High Pressure Pump

Removing and installing, refer to => [ High Pressure Pump ]

6 - Connector

O2S sensor after TWC (G130) and heater for O2S 1 after catalytic converter (Z29)

Component location, refer to => [ Heated Oxygen Sensor ]

7 - Vacuum Diaphragm for the Intake Manifold Flap (charge-motion valves)

8 - Intake Manifold Runner Control (IMRC) Valve (N316)

9 - Engine Speed (RPM) Sensor (G28)

4.5 Nm

10 - Evaporative Emission (EVAP) Canister Purge Regulator Valve 1 (N80)

11 - Connectors

For Knock Sensor (KS) 1 (G61) , intake manifold runner control valve (N316) , fuel pressure sensor (G247) , intake manifold runner position sensor (G336) , Engine Coolant Temperature (ECT) sensor (G62) , Camshaft Position (CMP) sensor (G40) and fuel injectors N30...N33

Component location, refer to => [ Connectors ]

12 - After-Run Coolant Pump (V51)

Only in vehicles in warm climate countries

13 - Engine Control Module (ECM) (J623)

Removing and installing, refer to => [ Engine Control Module (J623) ] Service and Repair

14 - Charge Air Pressure Sensor (G31)

15 - Throttle Valve Control Module (J338) , Electronic Power Control (EPC) Throttle Drive (G186)

EPC throttle drive angle sensor 1 (G187) and EPC throttle drive angle sensor 2 (G188)

Each time the throttle valve control module (J338) is removed and installed or replaced, it must be adapted to the Engine Control Module (ECM) (J623). Use a vehicle diagnosis tester

Component location, refer to => [ Components ]

16 - Intake Air Temperature (IAT) Sensor (G42)

Component location, refer to => [ Components ]

17 - Engine Coolant Temperature (ECT) Sensor (G62)

18 - Knock Sensor (KS) 1 (G61)

Tightening Specifications: 20 Nm

In order to remove, the coolant pump and coolant thermostat must be removed

Removing and installing, refer to => [ Knock Sensor 1 (G61) ] Service and Repair

19 - Fuel Pressure Sensor (G247)

Removing and installing, refer to => [ Fuel Pressure Sensor (G247) ] Service and Repair

20 - Oil Pressure Switch (F22) and Reduced Oil Pressure Switch (F378)

Component location, refer to => [ Oil Pressure Switch ]

21 - Oil Pressure Regulation Valve (N428)

22 - Intake Manifold Runner Position Sensor (G336)

23 - Camshaft Position (CMP) Sensor (G40)

24 - Ignition Coils with Power Output Stages

Component location, refer to => [ Ignition Coils for Actuator Elements
for Cam Adjustment ]

The ignition coils must be pulled out of the cylinder head using the ignition coil puller (T40039)

Removing and installing, refer to => [ Ignition Coils with Power Output Stages ] Service and Repair

25 - Camshaft Adjustment Valve 1 (N205)

26 - Turbocharger Recirculation Valve (N249)

Installed directly on turbocharger, refer to => [ Components on Turbocharger ]

26 - Cam Adjustment Actuator

Cam adjustment actuator 1 (F366)

Cam adjustment actuator 2 (F367)

Cam adjustment actuator 3 (F368)

Cam adjustment actuator 4 (F369)

Cam adjustment actuator 5 (F370)

Cam adjustment actuator 6 (F371)

Cam adjustment actuator 7 (F372)

Cam adjustment actuator 8 (F373)

Component location, refer to => [ Ignition Coils for Actuator Elements
for Cam Adjustment ]

28 - Wastegate Bypass Regulator Valve (N75)

Installed directly on turbocharger, refer to => [ Components on Turbocharger ]

29 - Mass Airflow (MAF) Sensor (G70)

Removing and installing, refer to => [ Mass Airflow Sensor (G70) ] Service and Repair

A - Brake Lamp Switch (F) and Brake Pedal Switch (F47)

In footwell at brake pedal

B - Clutch Position Sensor (G476)

Only on vehicles with a manual transmission

C - Accelerator Pedal Position Sensor (G79) and Accelerator Pedal Position Sensor 2 (G185)

On accelerator pedal (both sensors are stored in one housing)

D - Fuel Pump (FP) Control Module (J538)

E - Coolant Fan Control Module (J293)

Installed inside the coolant fan

F - Fuel Injectors

Cylinder 1 fuel Injector (N30)

Cylinder 2 fuel Injector (N31)

Cylinder 3 fuel Injector (N32)

Cylinder 4 fuel Injector (N33)

Removing and installing, refer to => [ Fuel Injectors ] Fuel Injectors

G - Left Electrohydraulic Engine Mount Solenoid Valve (N144)

Not installed in all vehicles (depends on the transmission)

Engine Control Module (J623)





Inside the left E-box in the engine compartment.

Accelerator Pedal Position Sensor (G79) and Accelerator Pedal Position Sensor 2 (G185)





2 Connector

The accelerator pedal position sensor and accelerator pedal position sensor 2 are part of the accelerator pedal module and cannot be replaced separately.

Installed Location Brake Lamp Switch (F) / Brake Pedal Switch (F47) , Clutch Pedal Sensor (G476)





1. Brake lamp switch and brake pedal switch

2. Clutch position sensor with clutch pedal starter interlock switch (F194) and clutch pedal switch (F36) (clutch pedal switch only)

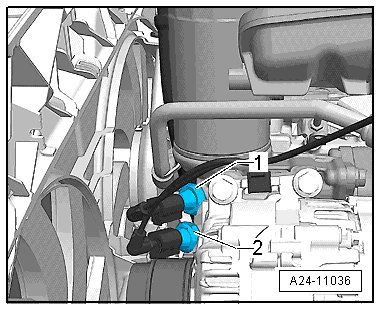

Oil Pressure Switch





1 Reduced Oil Pressure Switch (F378)
2 Oil Pressure Switch (F22)

Oil Pressure Regulation Valve (N428) - 3 -





Ignition Coils for Actuator Elements for Cam Adjustment





1 Ignition Coil 1 with Power Output Stage (N70)
2 Ignition Coil 2 with Power Output Stage (N127)
3 Ignition Coil 3 with Power Output Stage (N291)
4 Ignition Coil 4 with Power Output Stage (N292)
5 Cam adjustment actuator 2 (F367) (for cylinder 1)
6 Cam adjustment actuator 1 (F366) (for cylinder 1)
7 Cam adjustment actuator 3 (F368) (for cylinder 2)
8 Cam adjustment actuator 4 (F369) (for cylinder 2)
9 Cam adjustment actuator 6 (F371) (for cylinder 3)
10 Cam adjustment actuator 5 (F370) (for cylinder 3)
11 Cam adjustment actuator 7 (F372) (for cylinder 4)
12 Cam adjustment actuator 8 (F373) (for cylinder 4)

Fuel Pressure Sensor (G247) - 1 -





Tightening specifications of connection "25 Nm" must be checked before installing fuel pressure sensor.

Intake Manifold Runner Control Valve (N316) - 2 -





1 Intake manifold flap vacuum diaphragm

Intake Manifold Runner Position Sensor (G336) - 1 -





Camshaft Position (CMP) Sensor (G40) - 1 -





Connectors





1 From EVAP canister purge regulator valve 1 (N80)
2 From the KS 1
3 (14-pin) IMRC valve (N316) , fuel pressure sensor (G247) , intake manifold runner position sensor (G336) , ECT sensor (G62) and CMP sensor (G40)
4 (8-pin) from fuel injectors N30 to N33
5 from the throttle valve control module (J338)
6 IAT sensor (G42)

High Pressure Pump





1 Fuel Pressure Regulator Valve (N276)
2 High Pressure Pump
- arrows - bolts

Engine Speed (RPM) Sensor (G28) - 2 -





After-Run Coolant Pump (V51) - 1 -





Camshaft Adjustment Valve 1 (N205) - arrow -





Components





1 IAT sensor (G42)
2 Throttle Valve Control Module (J338)

Engine Coolant Temperature Sensor (G62) - 1 -





Installed below from the intake manifold inside the coolant pump.

Charge Air Pressure Sensor (G31) - 1 -





Heated Oxygen Sensor





1 Heated oxygen sensor (G39) and oxygen sensor heater (Z19)
2 Connector for heated oxygen sensor (G39)

Heated Oxygen Sensor





1 Connector for oxygen sensor after three way catalytic converter (G130)
2 Oxygen sensor after three way catalytic converter (G130) and heater for oxygen sensor 1 after catalytic converter (Z29)

Components on Turbocharger





1 Turbocharger
2 Turbocharger vacuum diaphragm
3 Wastegate bypass regulator valve (N75)
4 Turbocharger recalculating valve (N249) (note the installation position, next illustration)

Observe Installed Location of Turbocharger Recirculating Valve (N249)
