Fastener Tightening Specifications - Controls, Housing

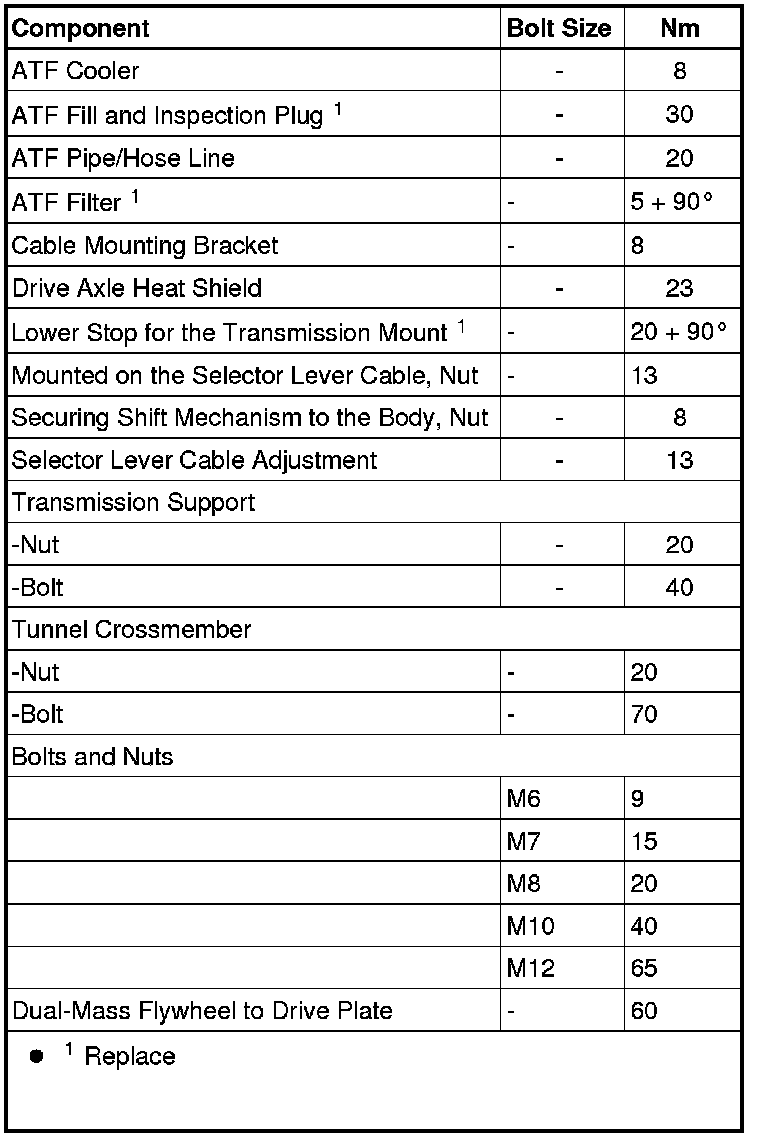

Fastener Tightening Specifications

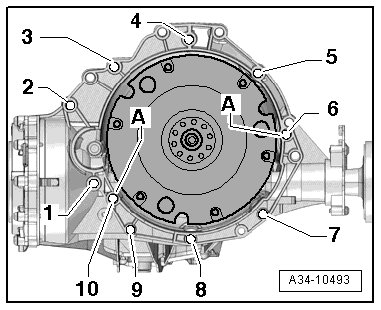

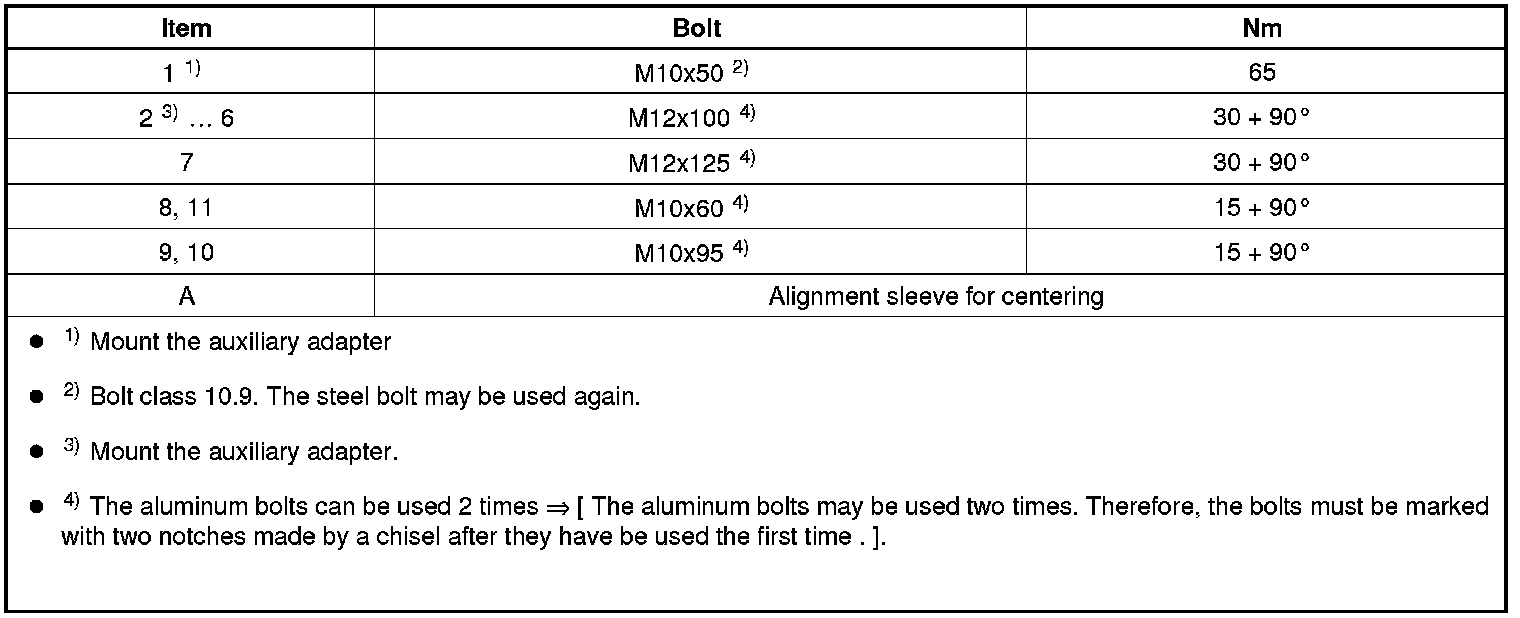

Securing the Multitronic 0AW FWD to the 2.0L TFSI Engine

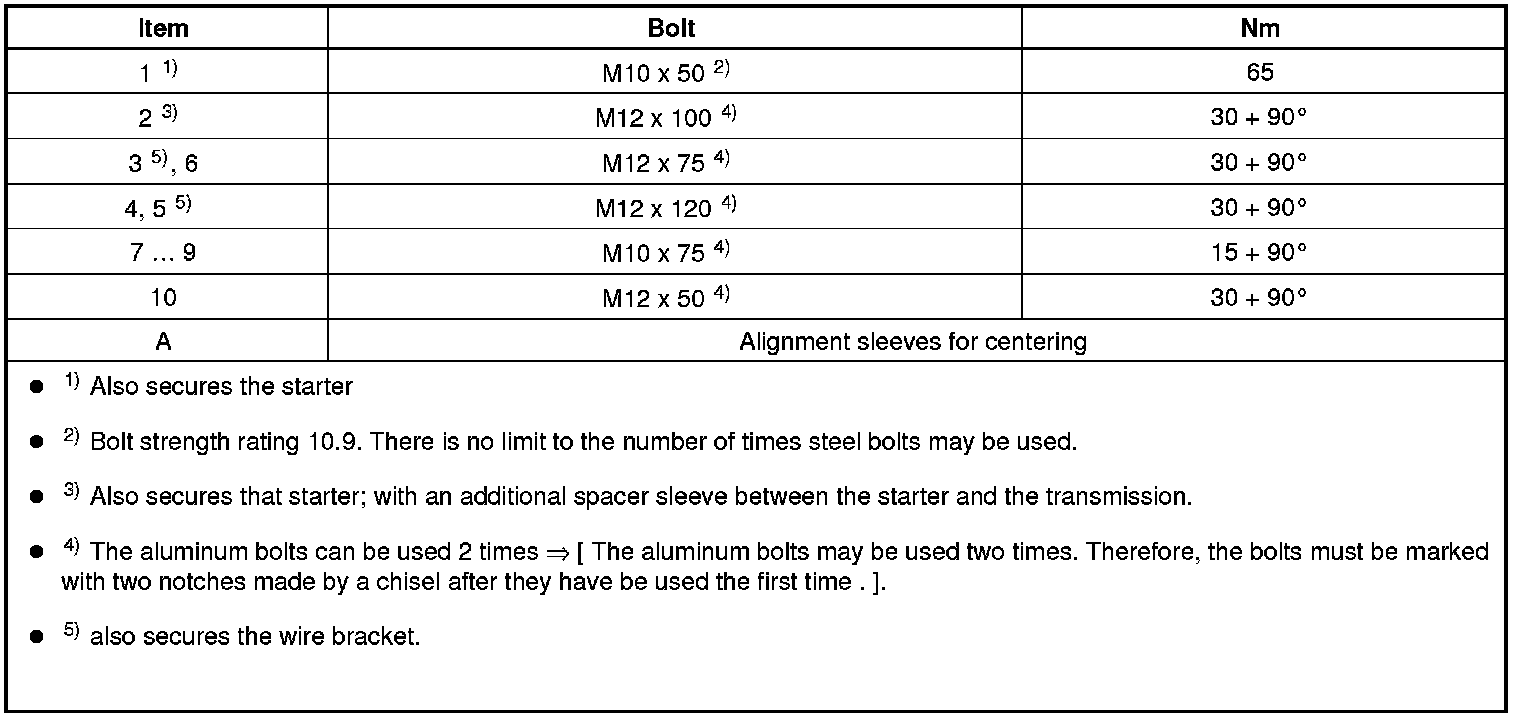

Mounting the Multitronic 0AW FWD to a 4-Cylinder TFSI Engine 2.0L











Attaching Multitronic 0AW FWD to 6-Cylinder TDI 3.0L Engines
