Generator Overview

Generator Overview

Observe notes on contact corrosion. Refer to=> [ Contact Corrosion ] Contact Corrosion.

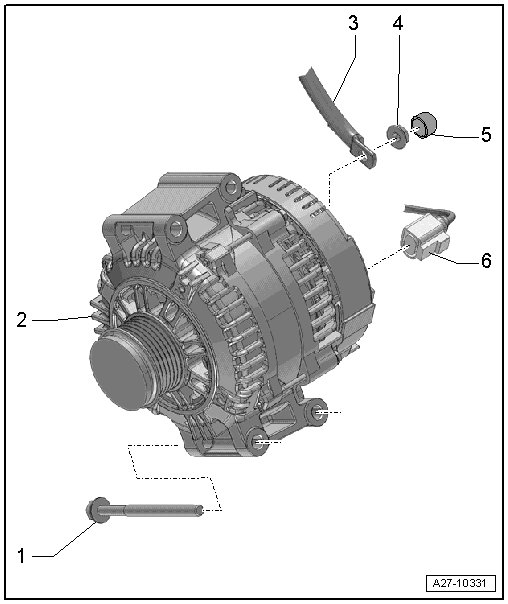

2.0L Generator Mount With Bolts






1 Screw

• 20 Nm

• Quantity: 4

2 Generator

• Removing and installing, refer to => [ Generator ] Generator.

3 Terminal 30/B+

4 Nut

• 16 Nm

5 Cap

6 Electrical Connector

3.0L Generator Mount With Bolts, Threaded Pins and Nuts






1 Screw

• 20 Nm

• Quantity: 2

2 Generator

• Removing and installing, refer to => [ Generator ] Generator.

3 Threaded Pin

• 10 Nm

• Quantity: 2

4 Nut

• 20 Nm

• Quantity: 2

5 Terminal 30/B+

6 Nut

• 16 Nm

7 Cap

8 Electrical Connector
