Electrical Specifications



ALLDATA Editor Note: The following image is taken from the E65 platform with the 4.4L N62 engine and is not shown for the E66 with the 4.4L N62 engine. The E66 platform shows no Technical data, this image is included for reference.

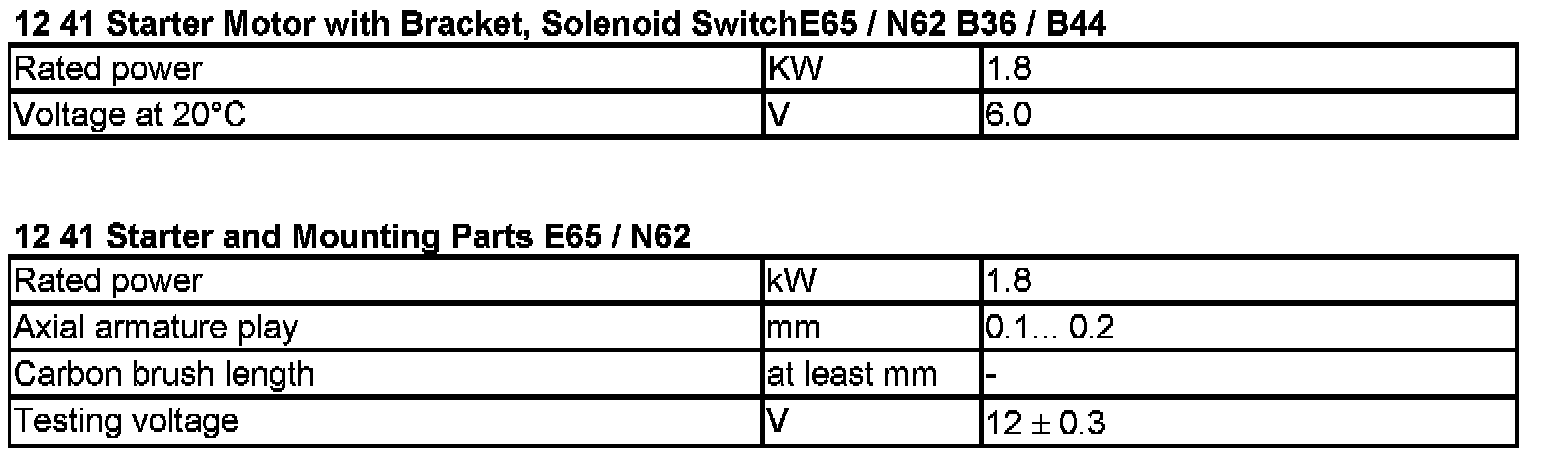

Electrical Specifications:
