Buick Truck
>>
2007
>>
Rendezvous V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Amplifier, Sound System
Amplifier, Sound System
Entertainment/Communication Connector End Views

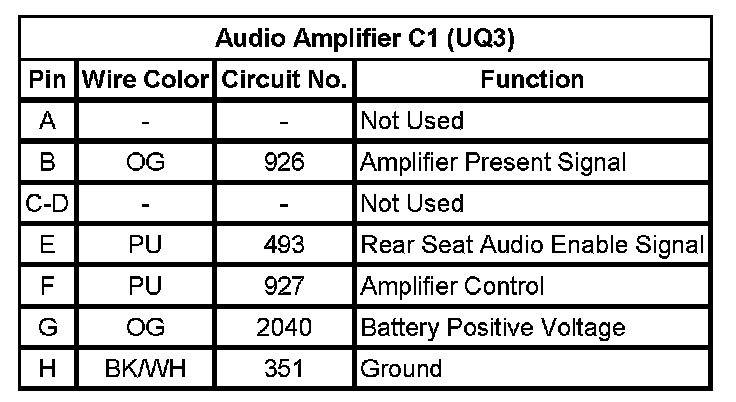

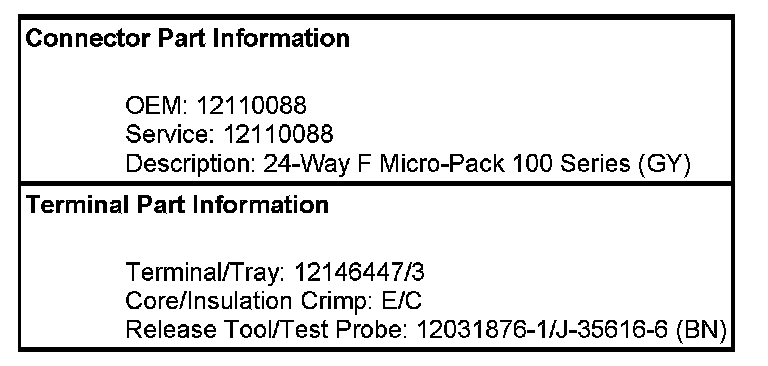

Audio Amplifier C1 (UQ3)

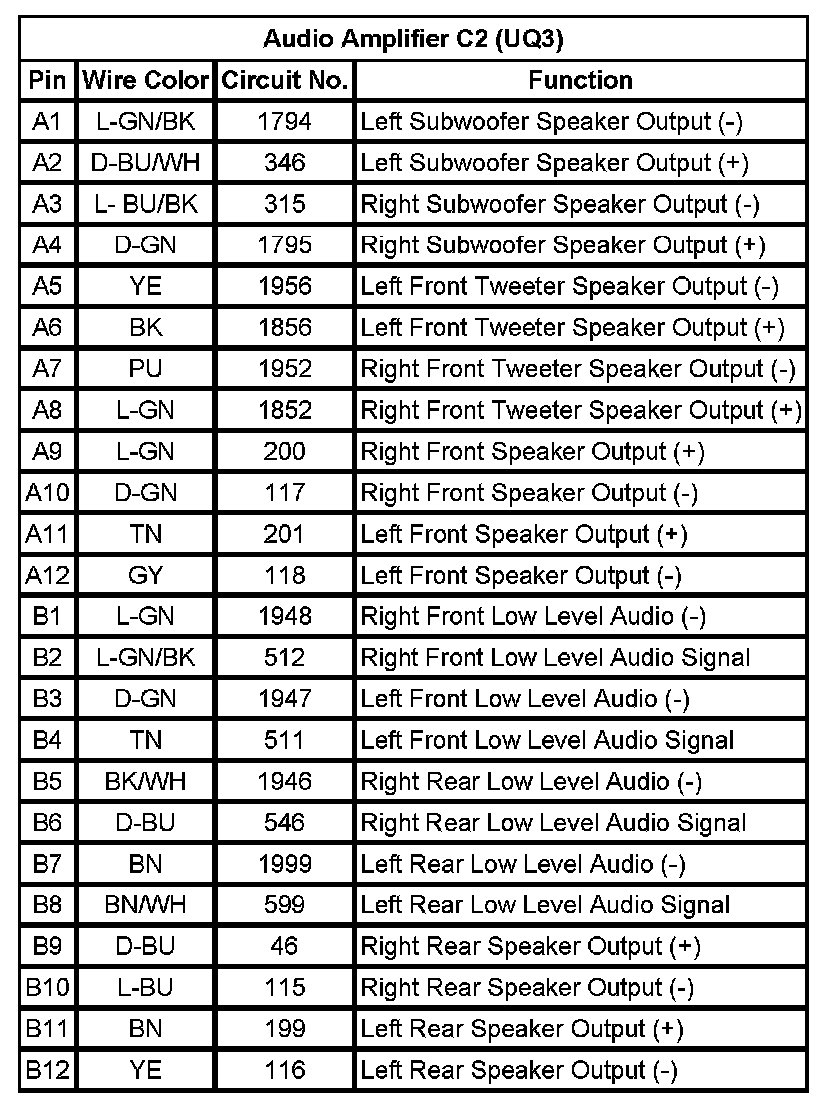

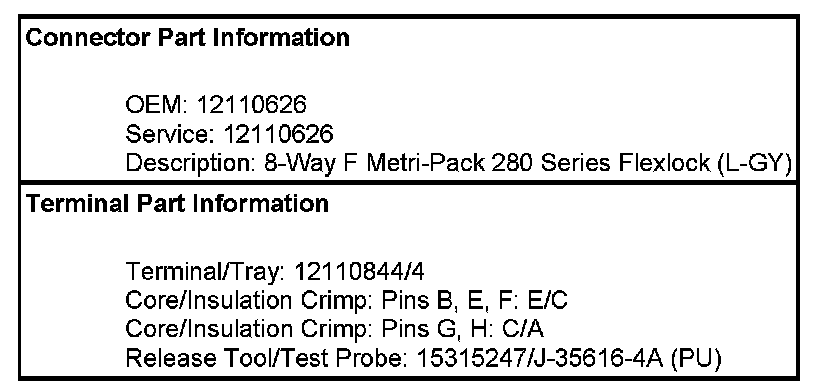

Audio Amplifier C2 (UQ3)
