Refrigerant Pressure Sensor / Switch: Service and Repair

Air Conditioning (A/C) Refrigerant Pressure Sensor Replacement

Tools Required

J39400-A Halogen Leak Detector

Removal Procedure

1. Raise and support the vehicle. Refer to Vehicle Lifting.




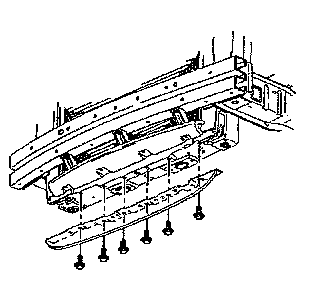

2. Remove the air baffle bolts.
3. Remove the air baffle.

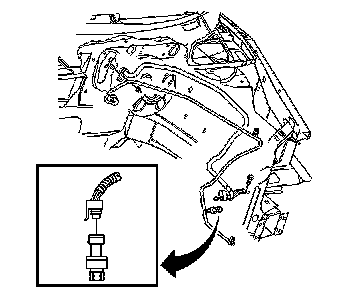

4. Disconnect the A/C refrigerant pressure sensor electrical connector.
5. Remove the A/C refrigerant pressure sensor from the evaporator inlet tube.

Installation Procedure

1. Using a lint-free clean, dry cloth, carefully clean the sealing surfaces of the evaporator inlet tube fitting.

Important: DO NOT allow any of the mineral base 525 viscosity refrigerant oil on the O-ring seal to enter the refrigerant system.

2. Lightly coat the O-ring seal with mineral base 525 viscosity refrigerant oil.






Notice: Refer to Fastener Notice.

3. Install the A/C refrigerant pressure sensor to the evaporator inlet tube.

Tighten the sensor to 5 N.m (44 lb in).

4. Connect the A/C refrigerant pressure sensor electrical connector.
5. Leak test the fittings of the component using J39400-A.




6. Install the air baffle.
7. Install the air baffle bolts.

Tighten the bolts to 20 N.m (15 lb ft).

8. Lower the vehicle.
