Home >> Buick >> 1985 >> Electra V6-260 4.3L DSL >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> System Diagram >> Exhaust Gas Recirculation (EGR) System >> California

California

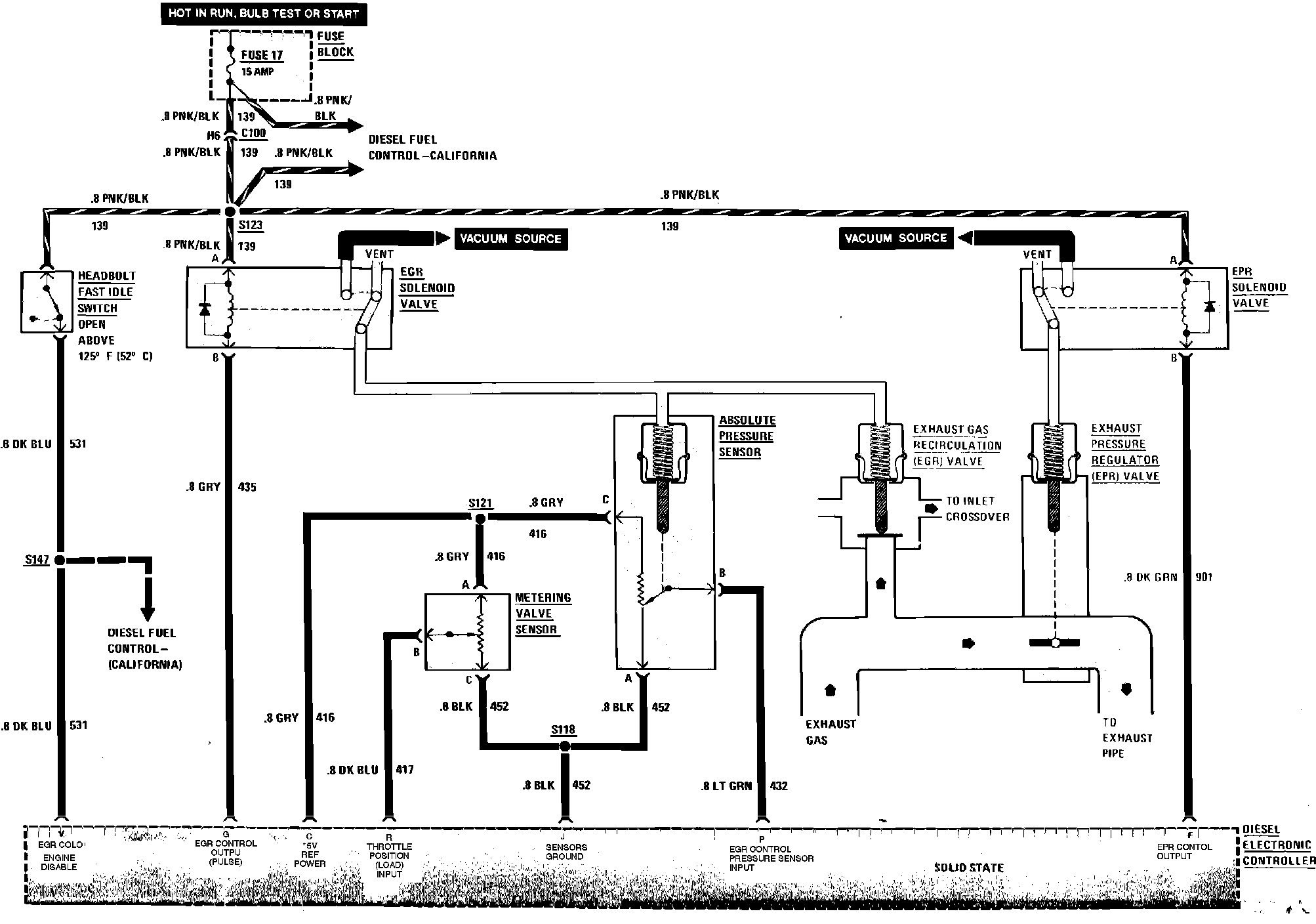

Exhaust Gas Recirculation Wiring Circuit, Electra, California:
