Suspension Control ( Automatic - Electronic )

Fig. 14 Typical electronic level control system wiring diagram. 1982---85 Regal Shown:

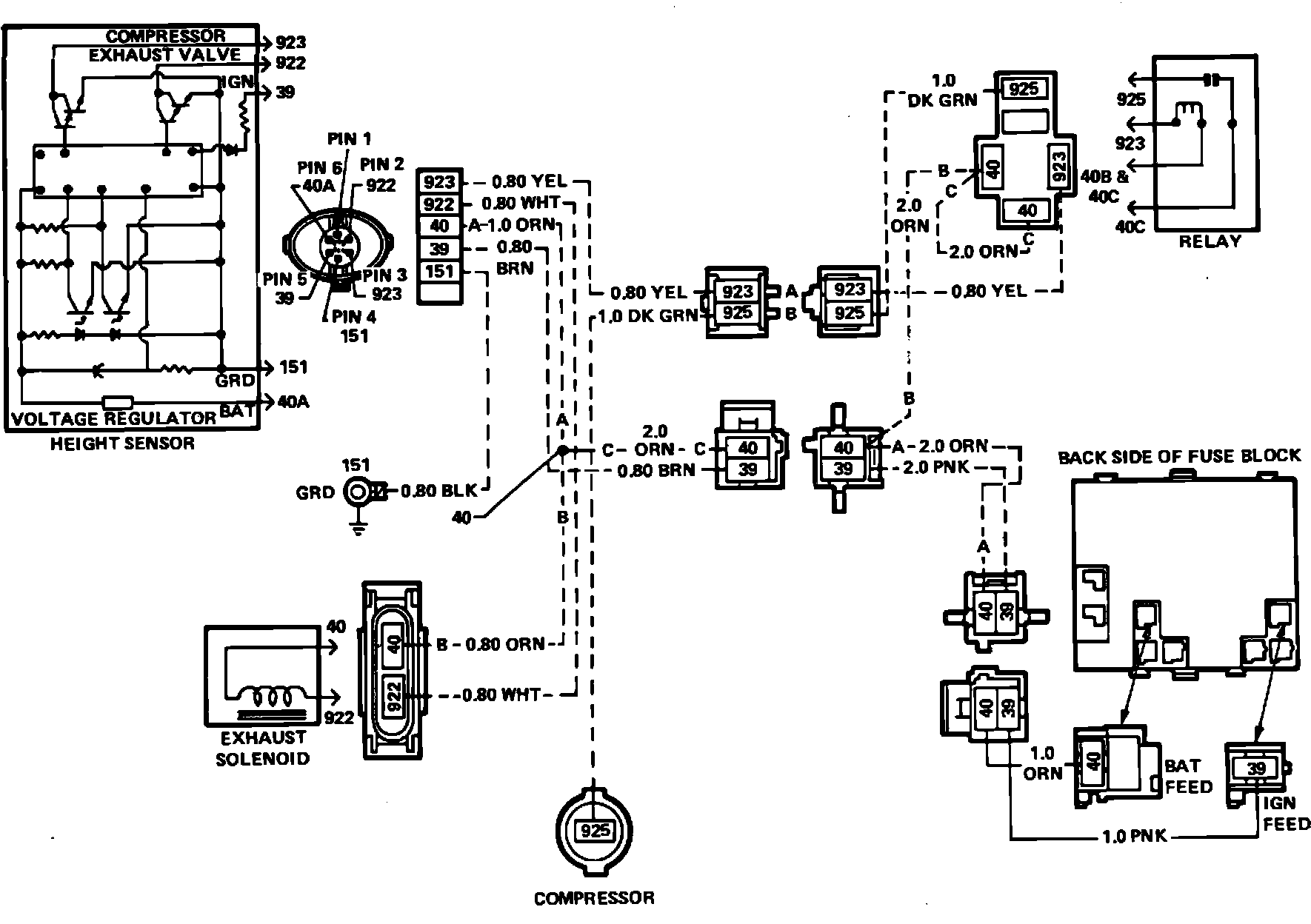

Fig. 15 Typical electronic level control wiring diagram. 1982---83 Century, Cutlass Ciera & 6000, 1984---85 Century & 6000 shown:
