Home >> Buick >> 1987 >> Skylark L4-151 2.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Instrument Panel, Gauges and Warning Indicators >> With AC Pod

With AC Pod

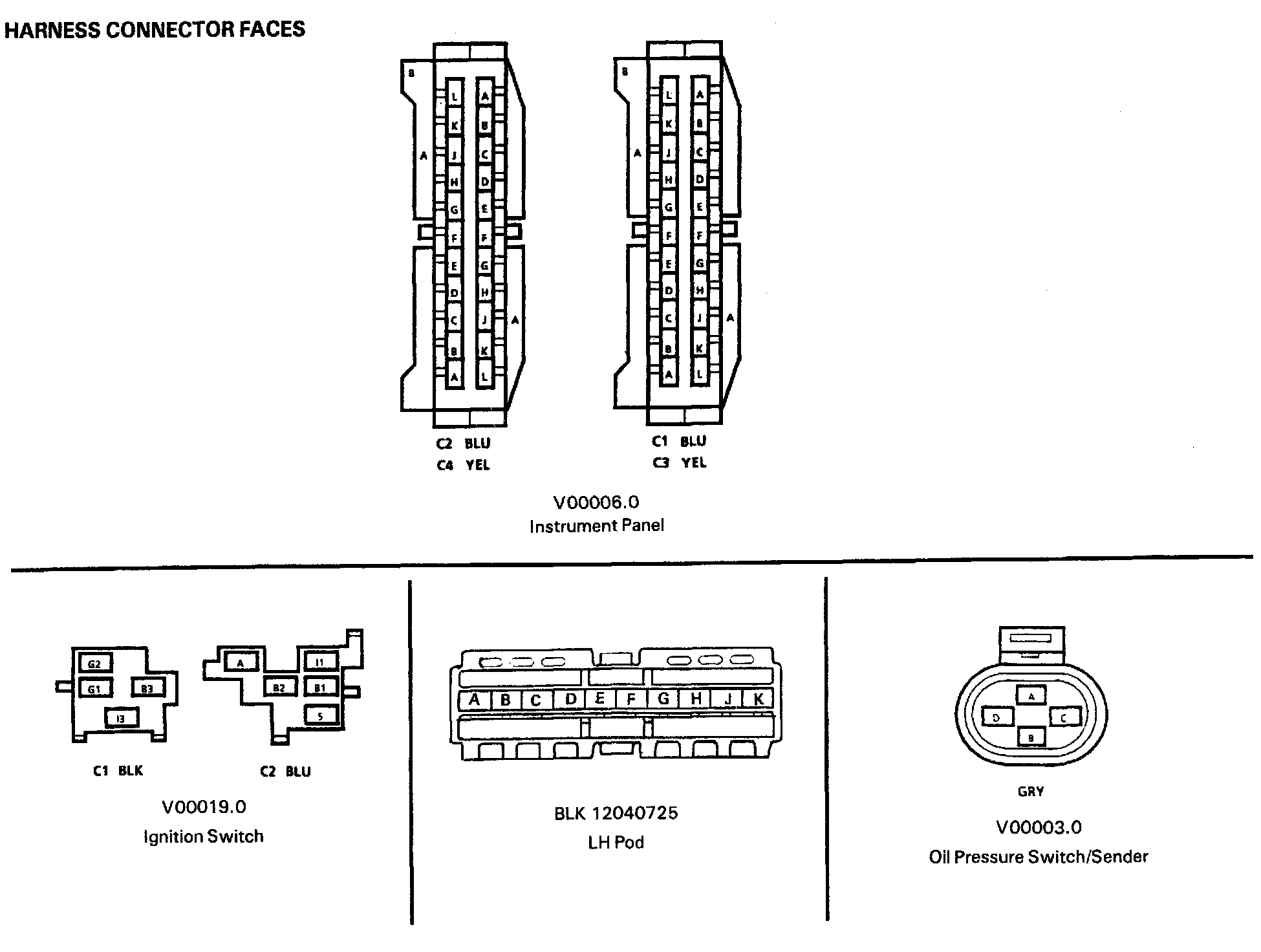

1 Of 3:

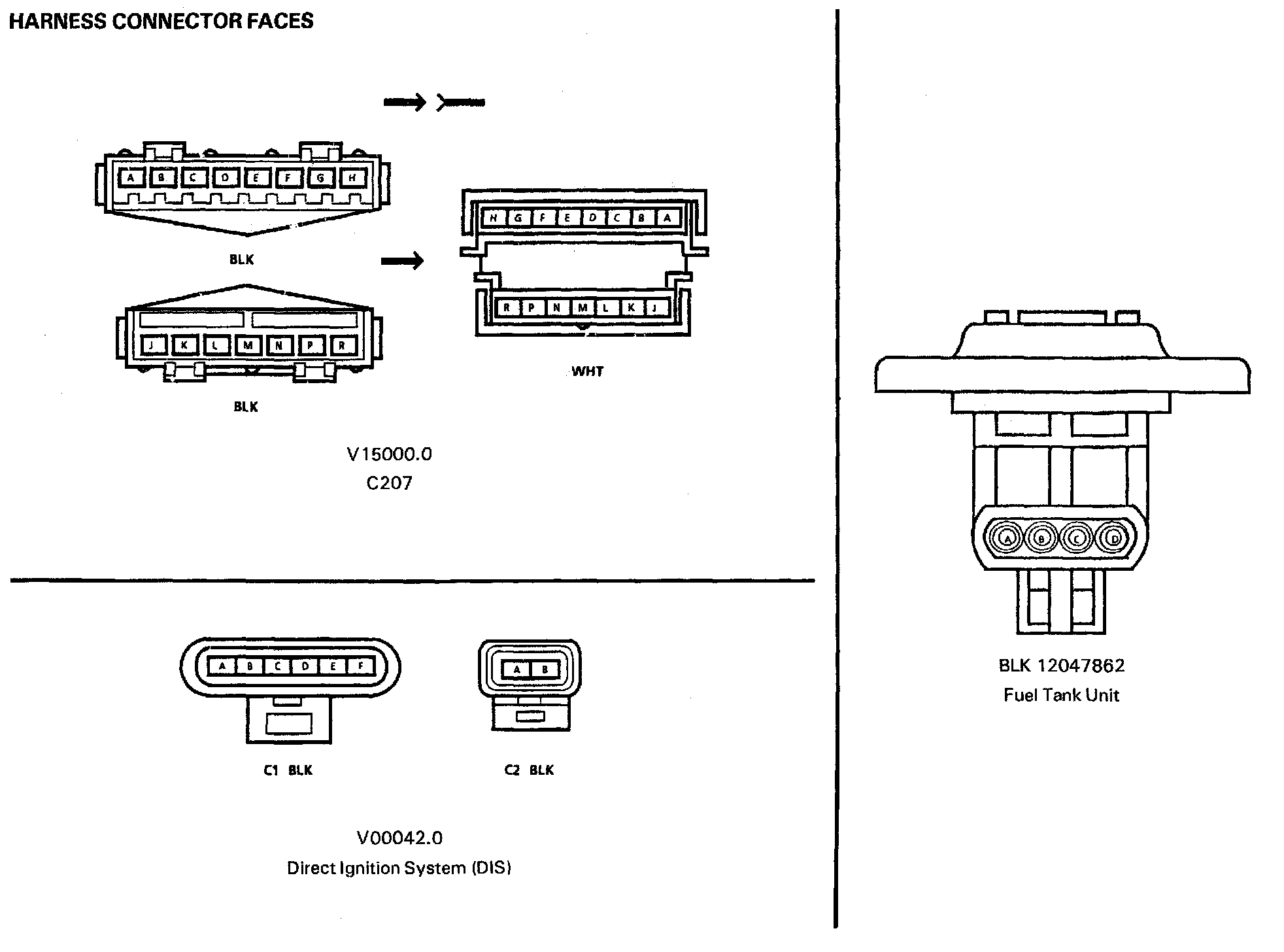

2 Of 3:

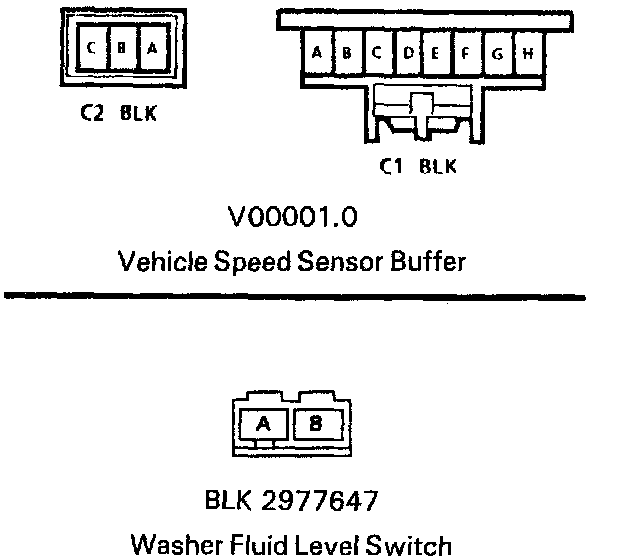

3 Of 3:
