Home >> Buick >> 1989 >> Regal V6-173 2.8L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Starting and Charging >> Power and Ground Distribution >> System Diagram >> Fuse Block Diagrams >> Right Side Electrical Center >> Part 2 of 3

Part 2 of 3

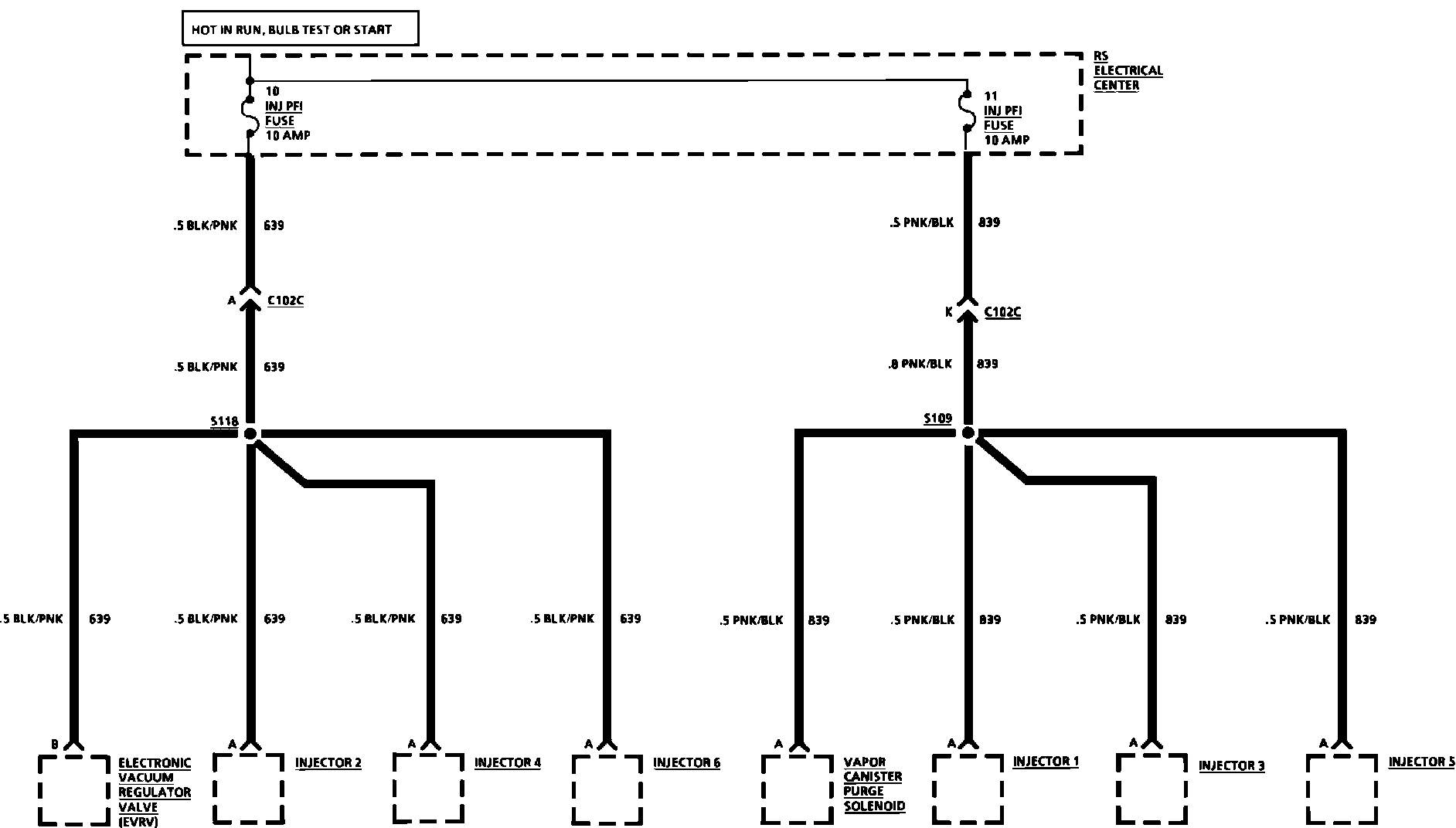

Fuse Block Details RS Electrical Center Part 2 Of 3:
