Operation CHARM
: Car repair manuals for everyone.
Home
>>
Buick
>>
1990
>>
Regal V6-191 3.1L
>>
Repair and Diagnosis
>>
Cruise Control
>>
Testing and Inspection
>>
System Diagnosis
System Diagnosis
Fig. 41 Cruise Control System Diagnostic Chart (Part 1 Of 2):

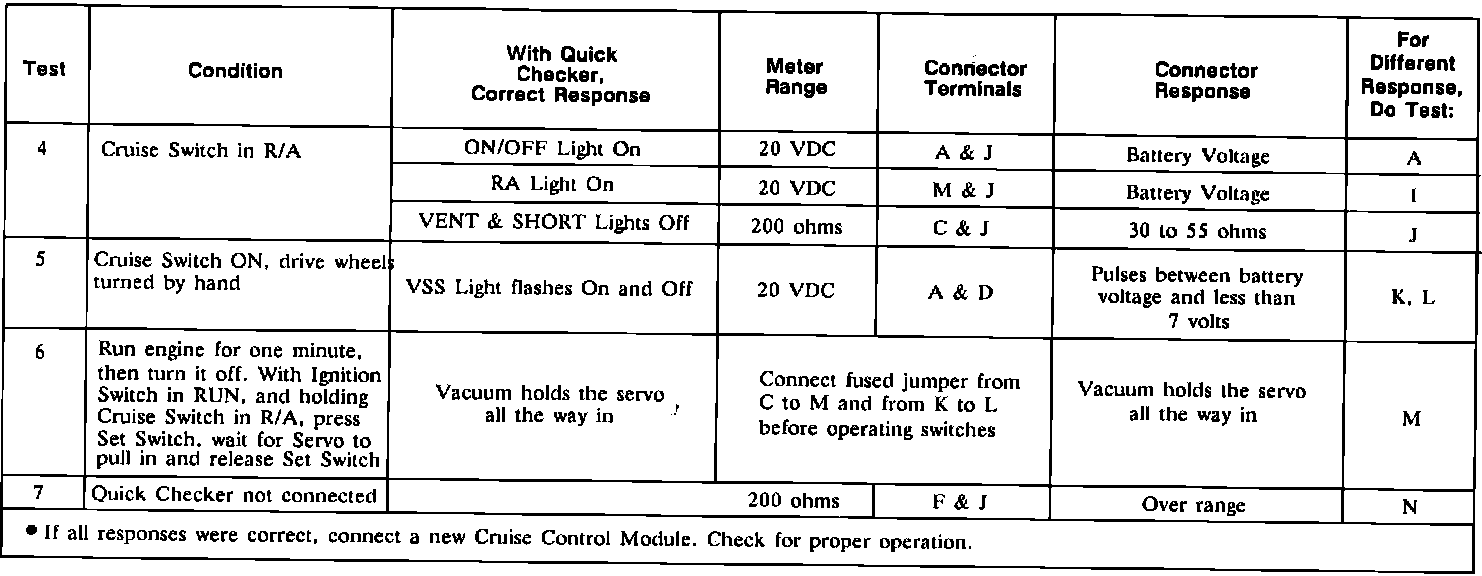

Fig. 41 Cruise Control System Diagnostic Chart (Part 2 Of 2):
