Antilock Brakes / Traction Control Systems
Antilock Brakes / Traction Control Systems

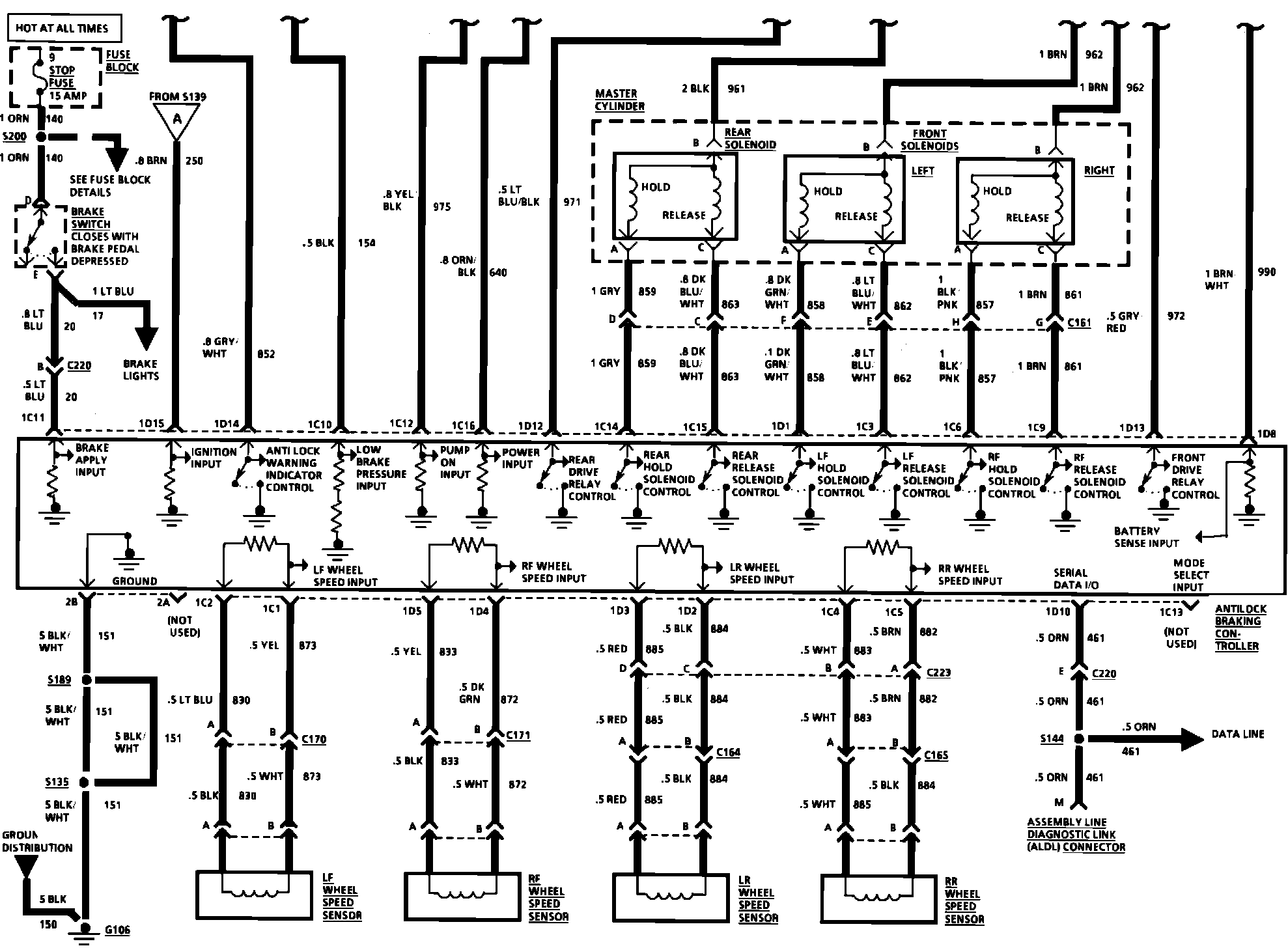

Anti-Lock Brake System Part 1 Of 2:

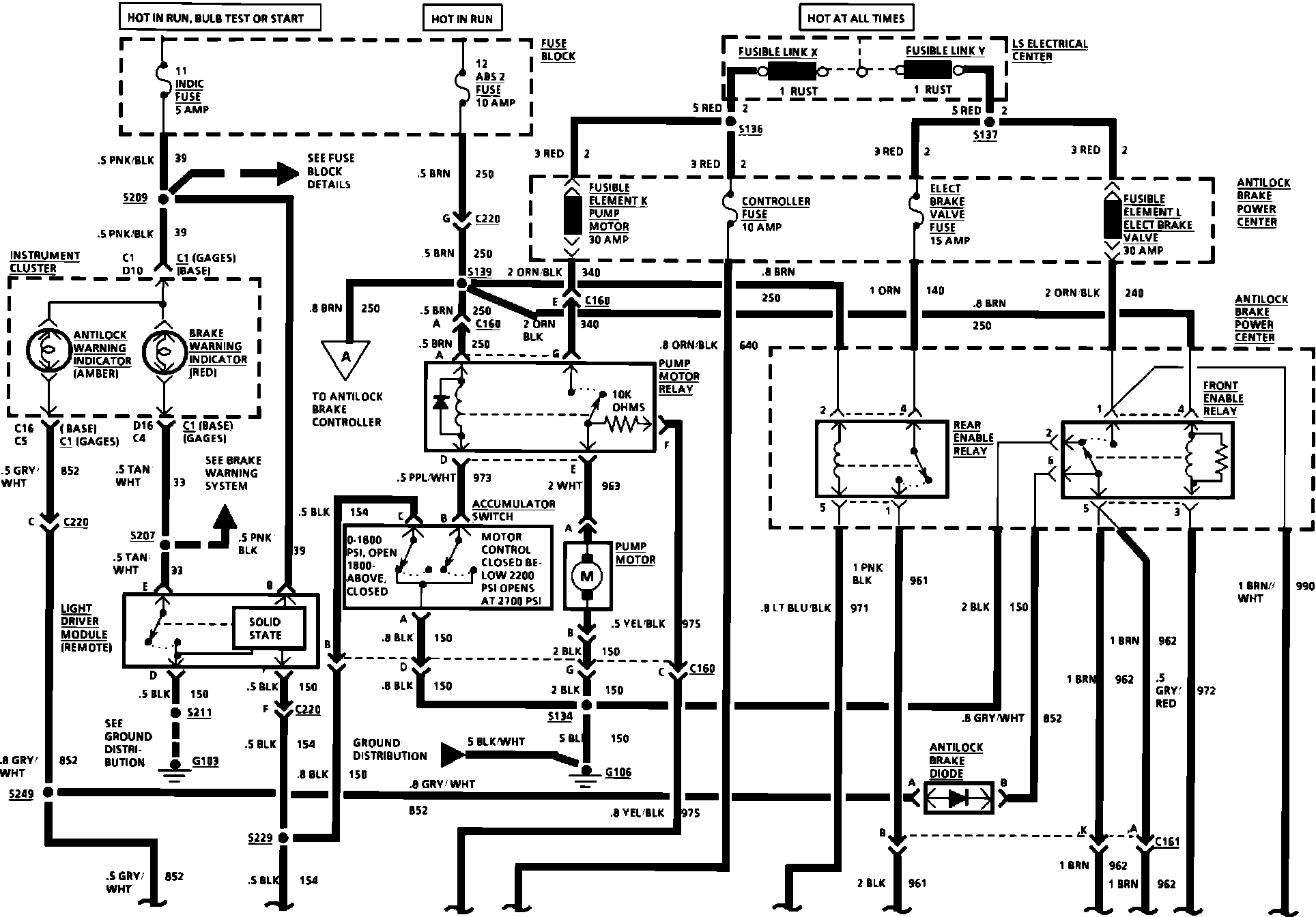

Anti-Lock Brake System Part 2 Of 2:
Anti-Lock Brake:
Anti-Lock Brake:
