Home >> Buick >> 1990 >> Regal V6-191 3.1L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Starting and Charging >> Power and Ground Distribution >> Fuse >> Fuses 2, 13 & 16

Fuses 2, 13 & 16

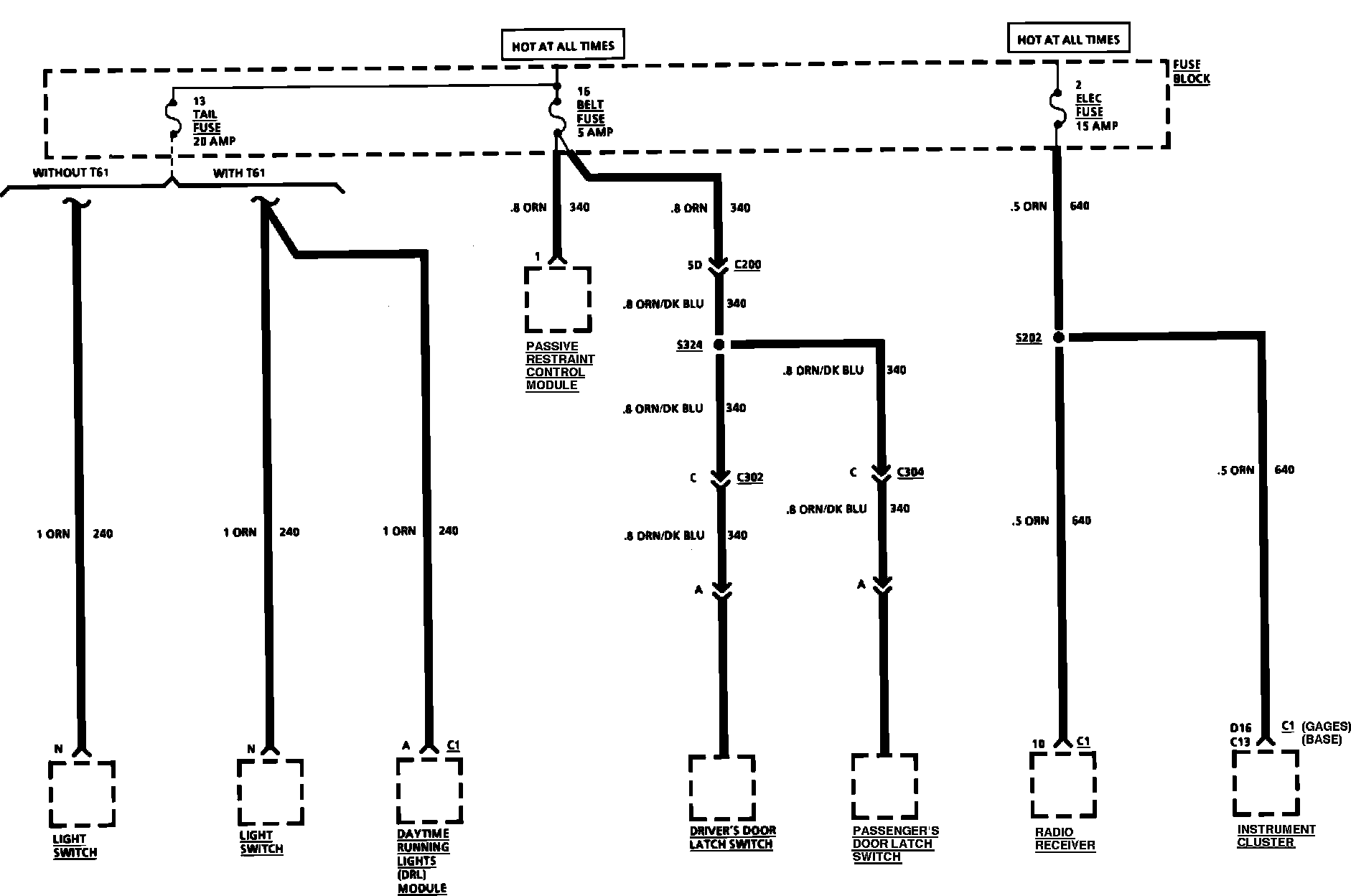

Fuse Block Details. Fuses 2, 13 & 16:
