Home >> Buick >> 1990 >> Regal V6-191 3.1L >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Component Tests and General Diagnostics >> Component Diagnostic Charts/Tests >> Air Delivery & Temperature Controls >> Test A - Solenoid >> Table 2 of 2

Table 2 of 2

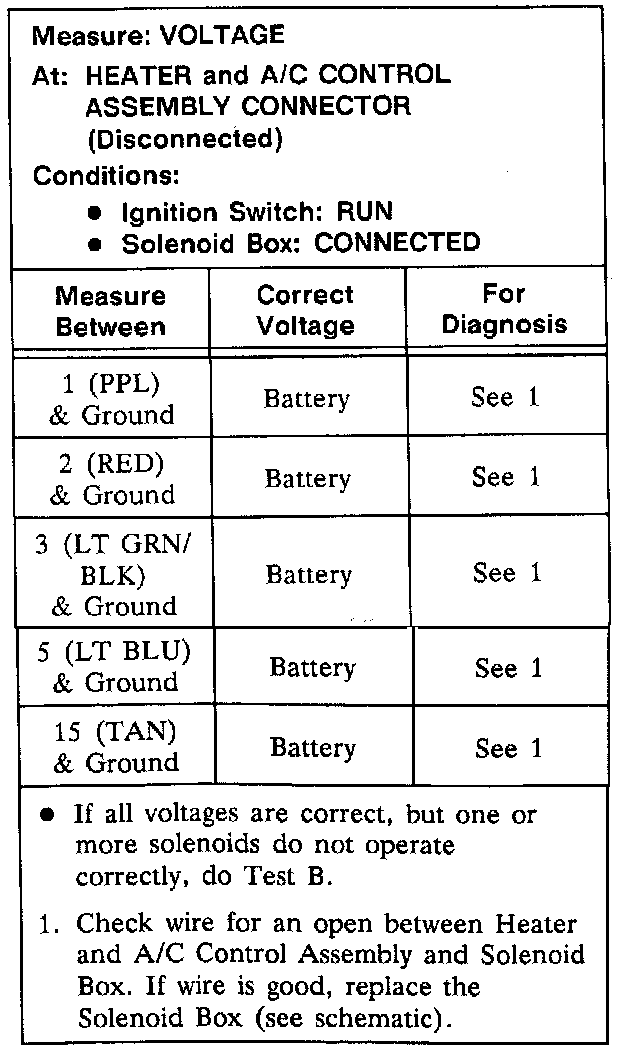

Solenoid Test (Table 2 Of 2):
