Instrument Clusters - Exchange/Repair Program

9225buick02

Bulletin: 90-8-6

Date: Feb., '90

Ref. No.: 90-060-8

Corp. Ref. No.: 908306R

SUBJECT:
ELECTRONIC INSTRUMENT CLUSTER EXCHANGE REPAIR PROGRAM

MODELS AFFECTED:
1990 SKYLARK, CENTURY, REGAL, LESABRE, ELECTRA/PARK AVENUE, RIVIERA, REATTA

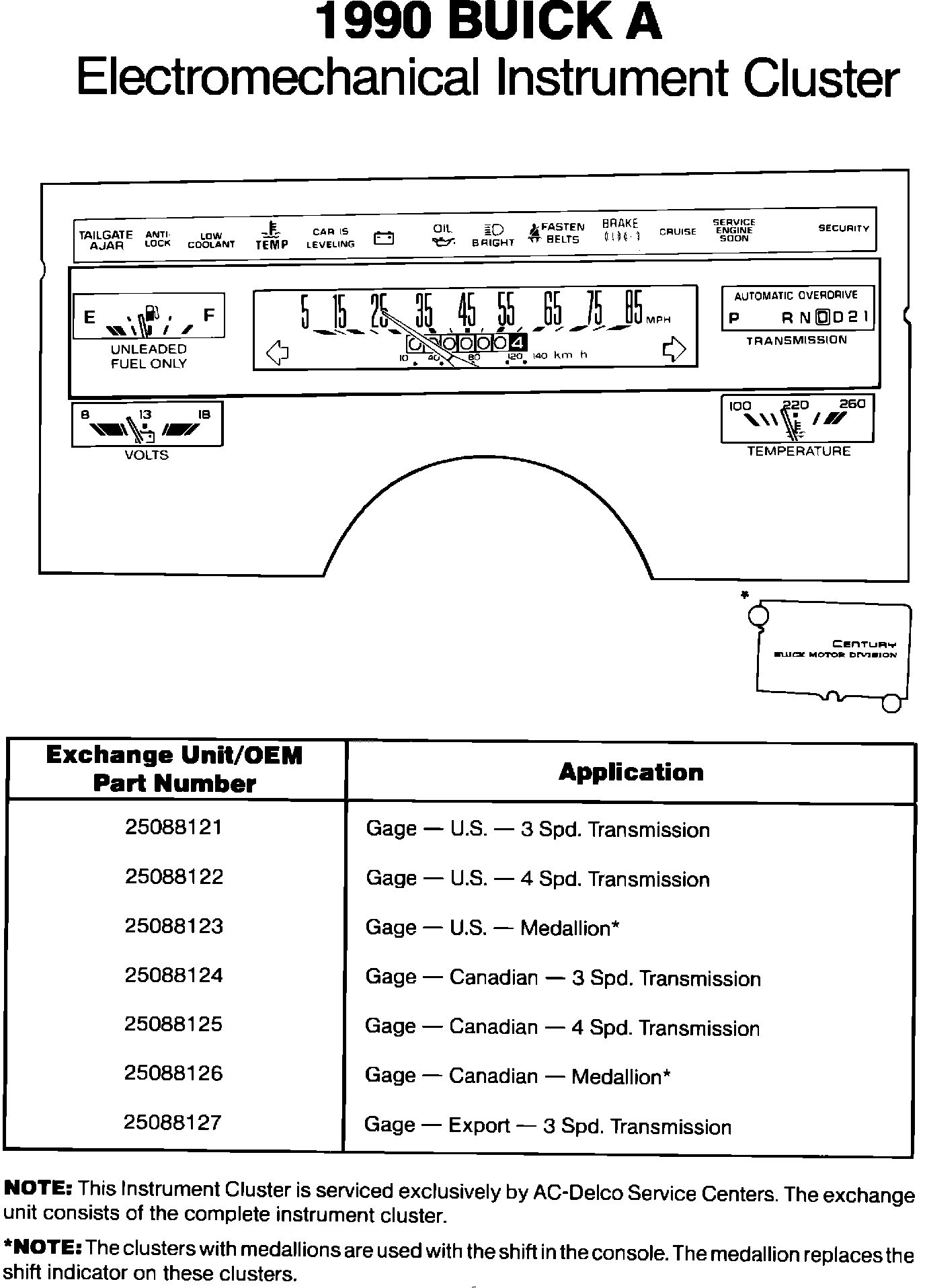

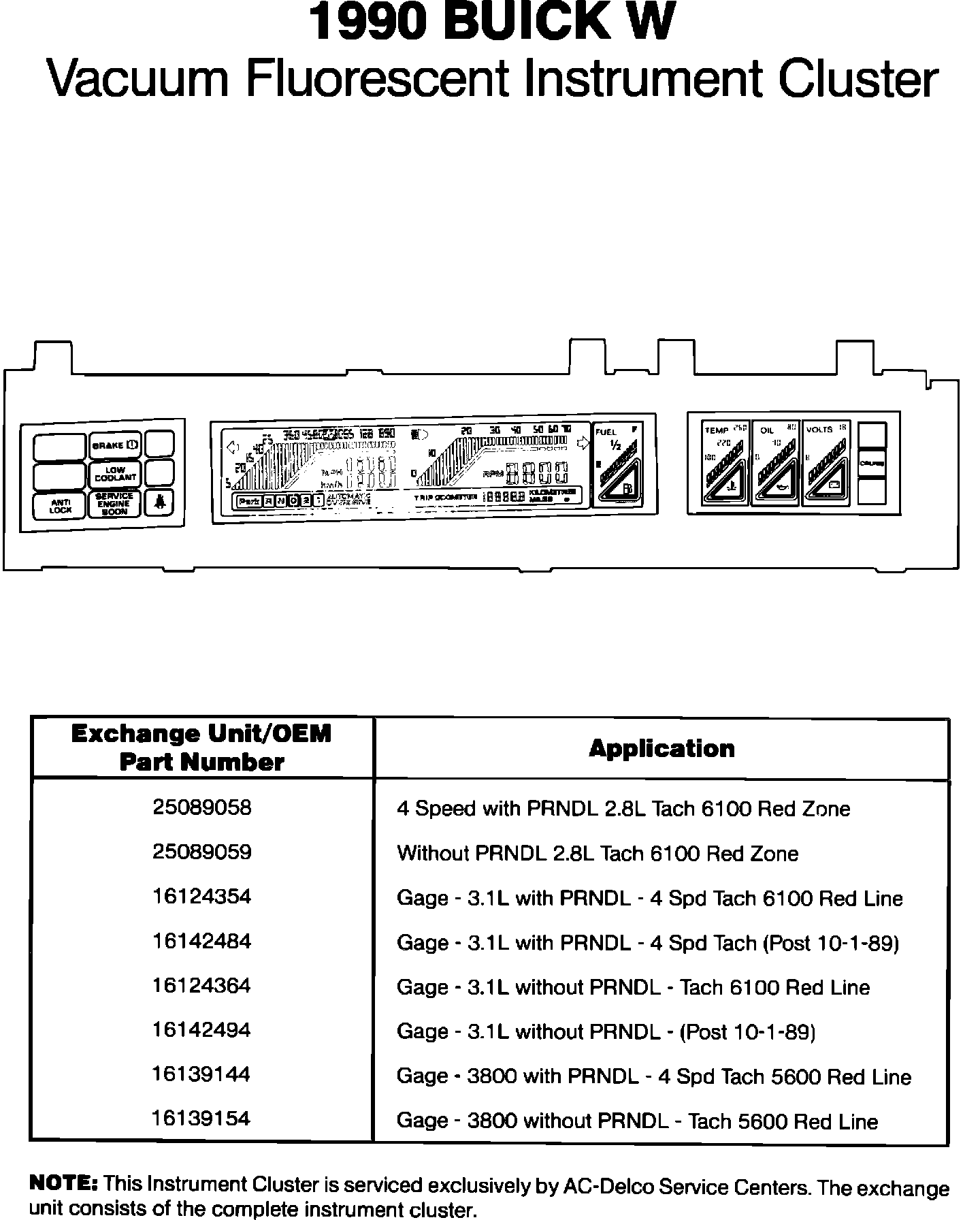

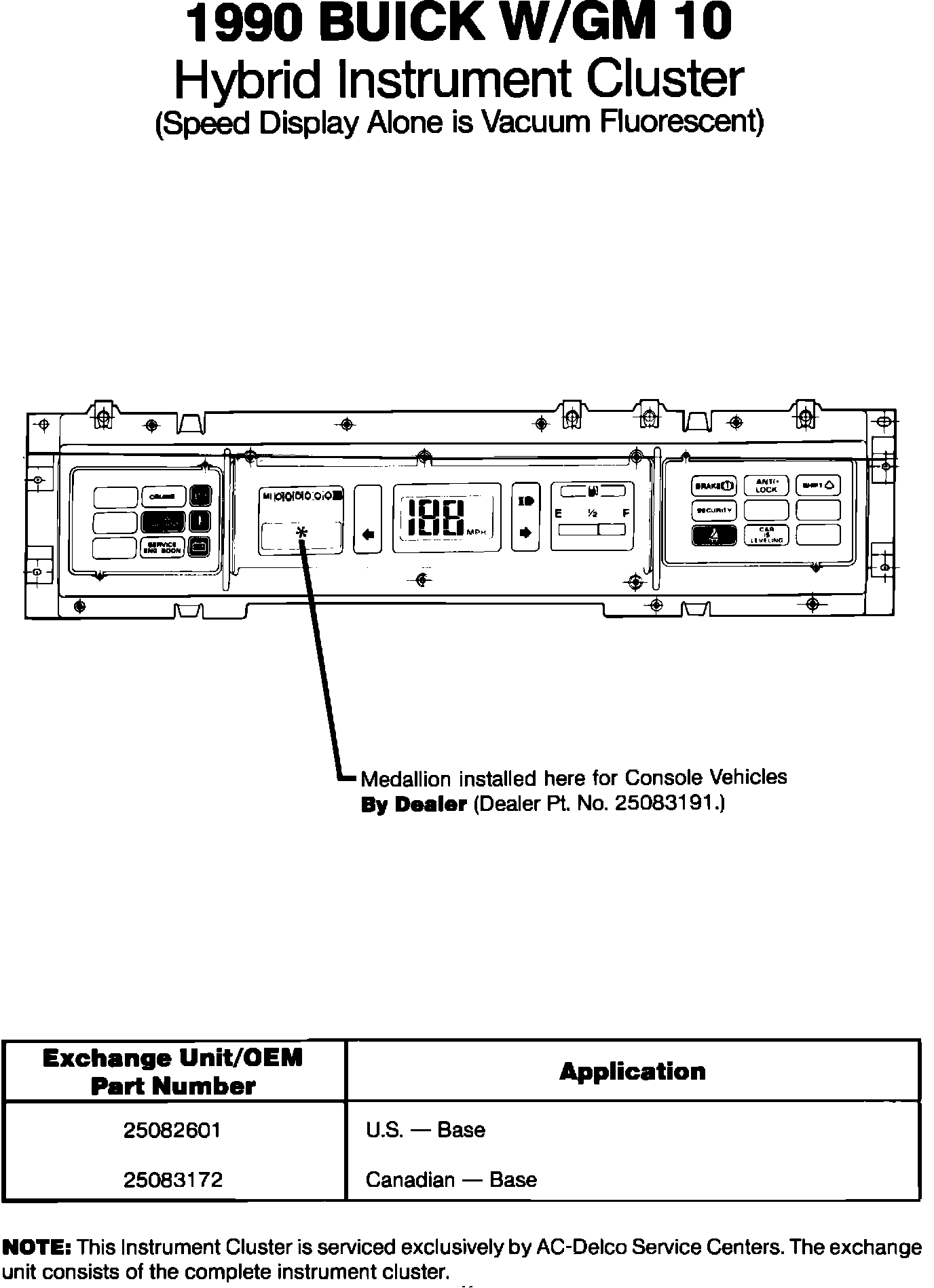

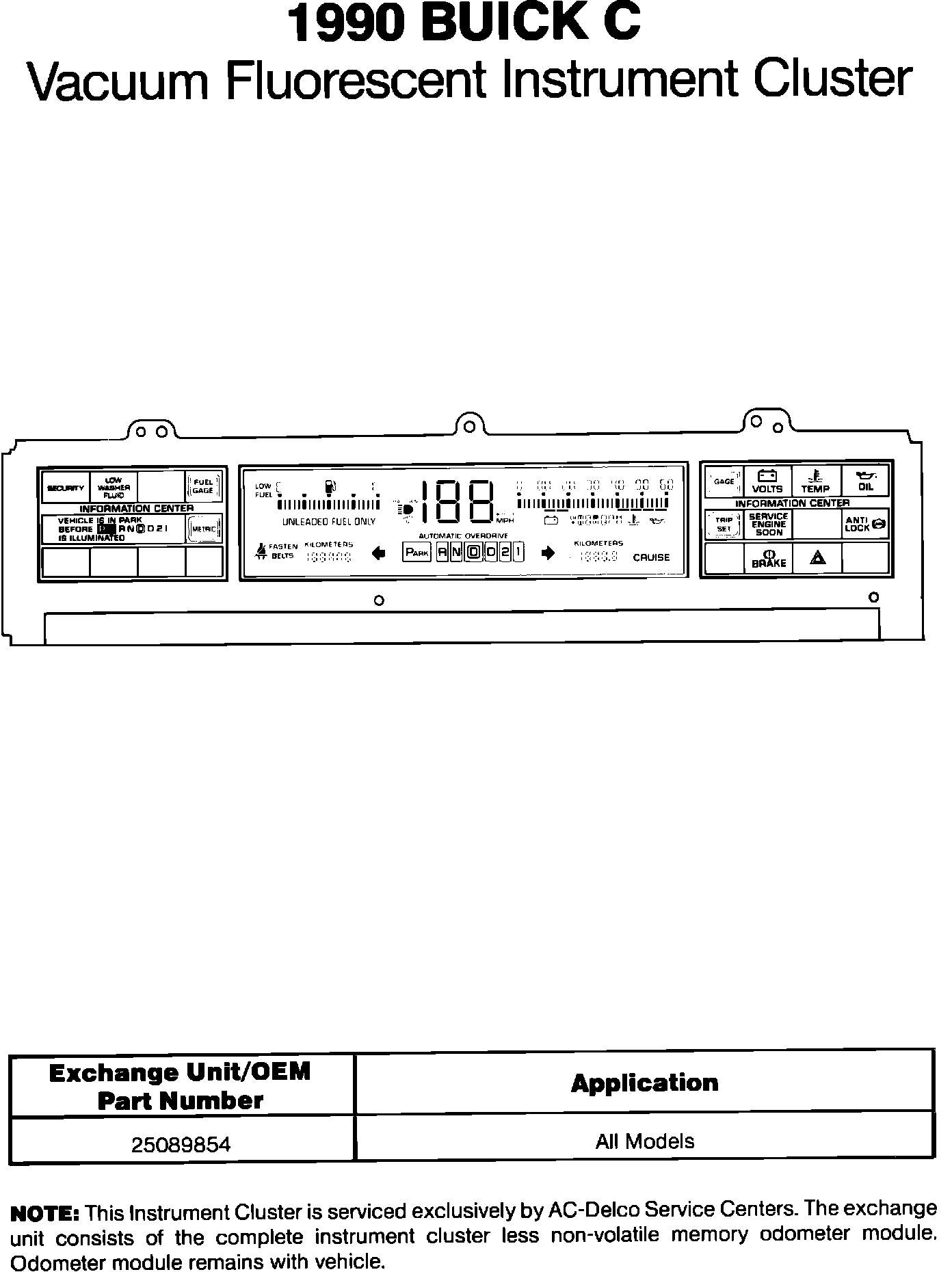

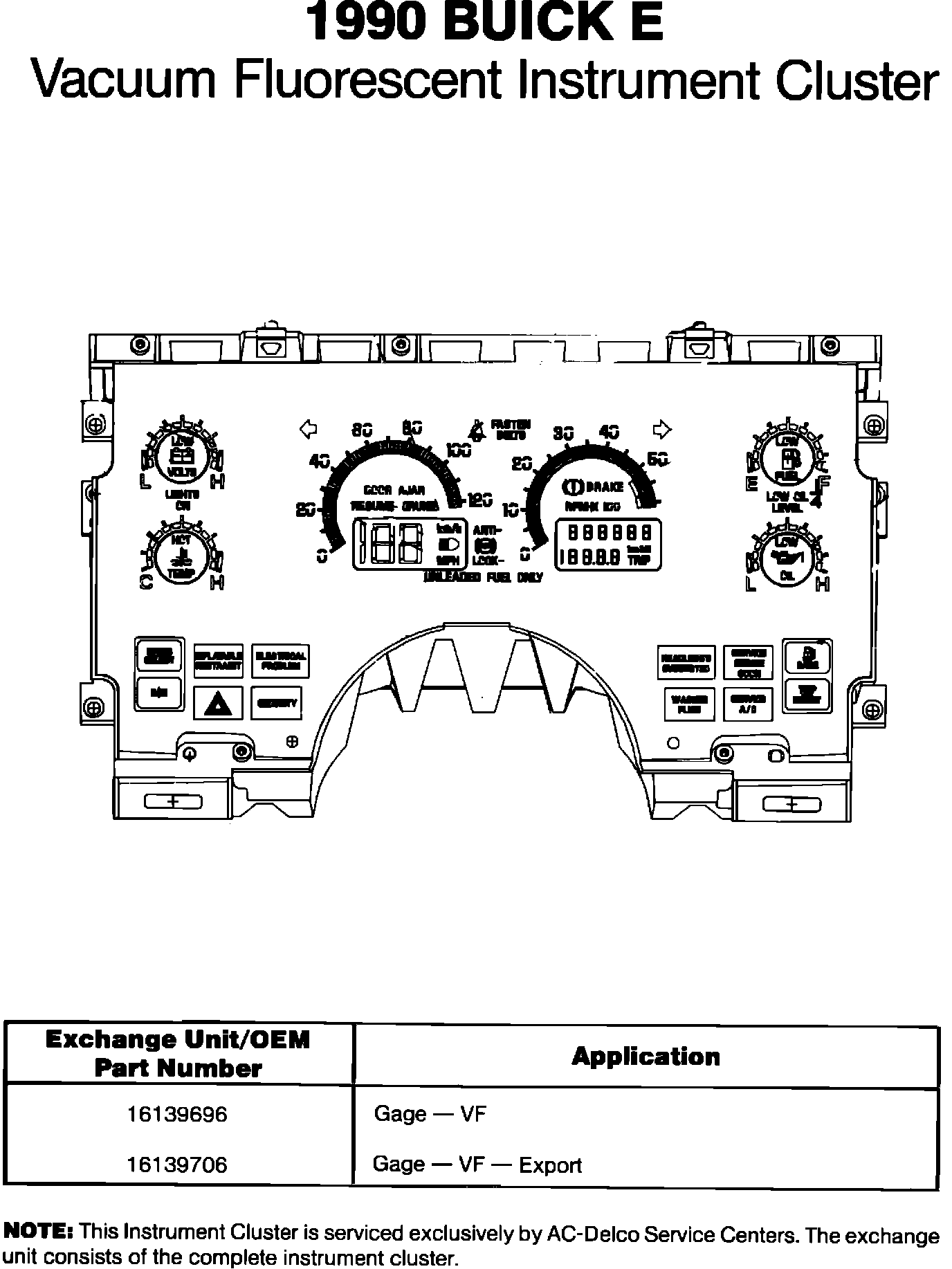

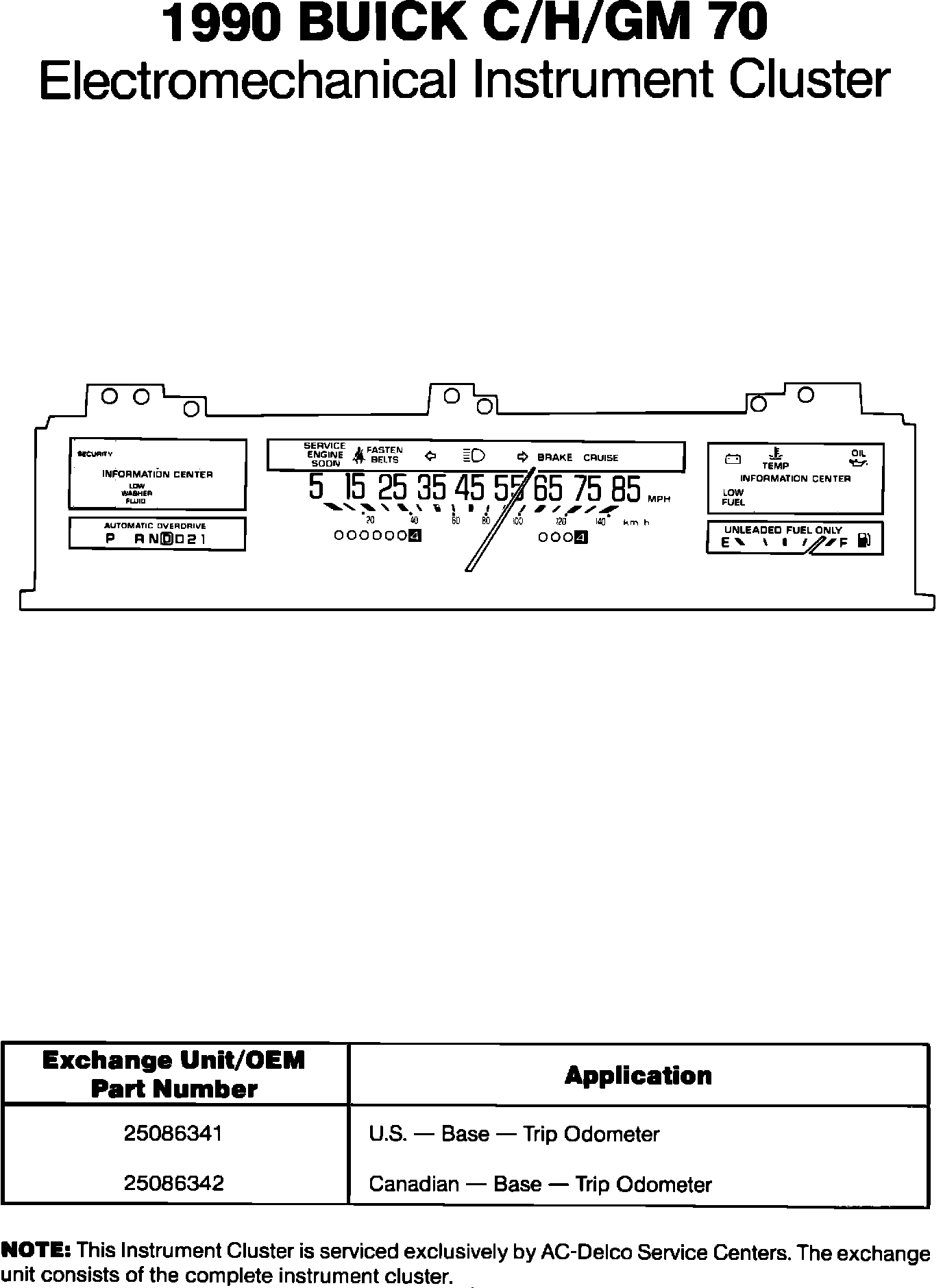

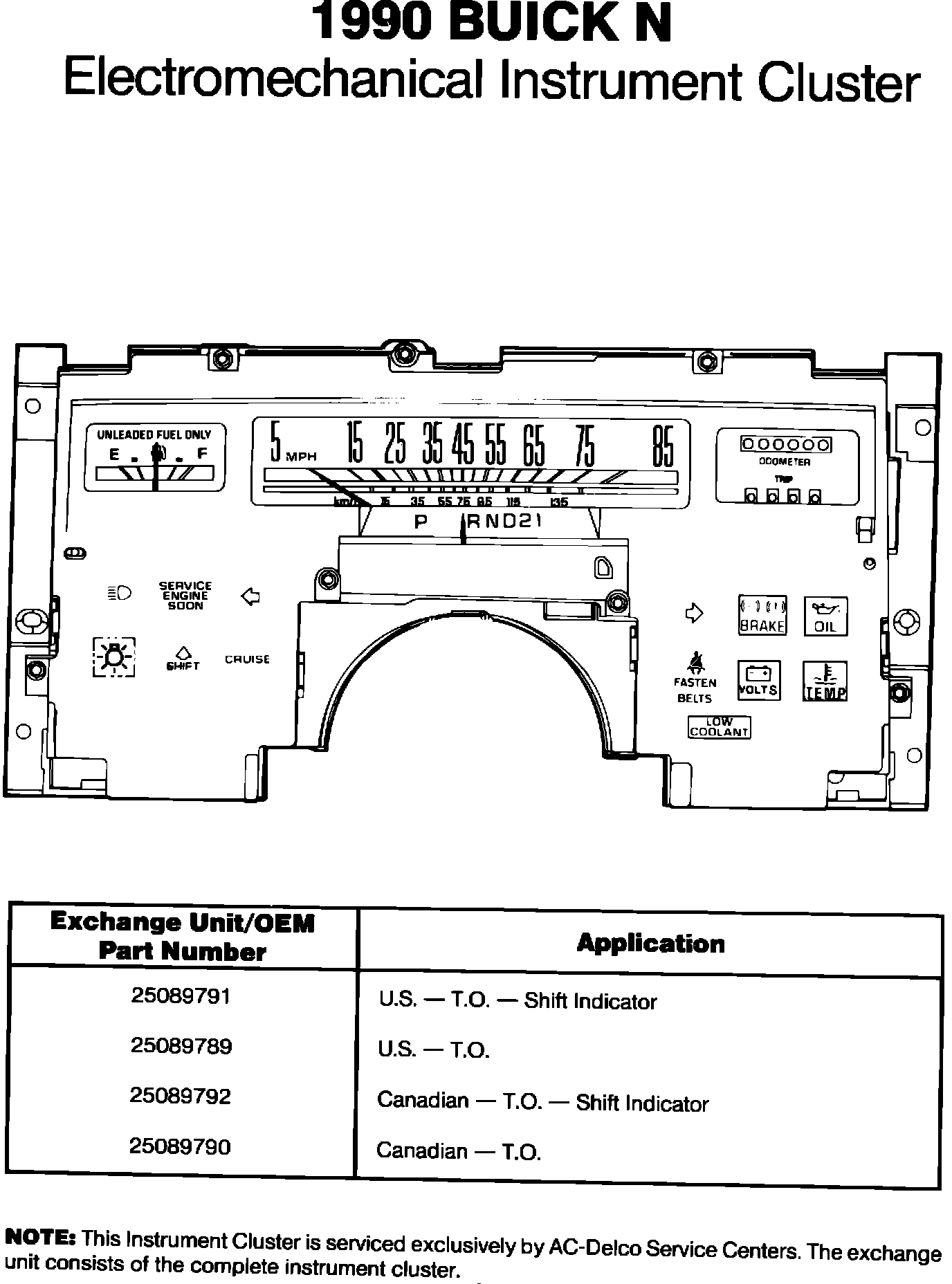

The subject program provides an Exchange/Repair program for instrument clusters used on the above listed models at a cost substantially below new replacement parts. See illustrations for part numbers and applications.

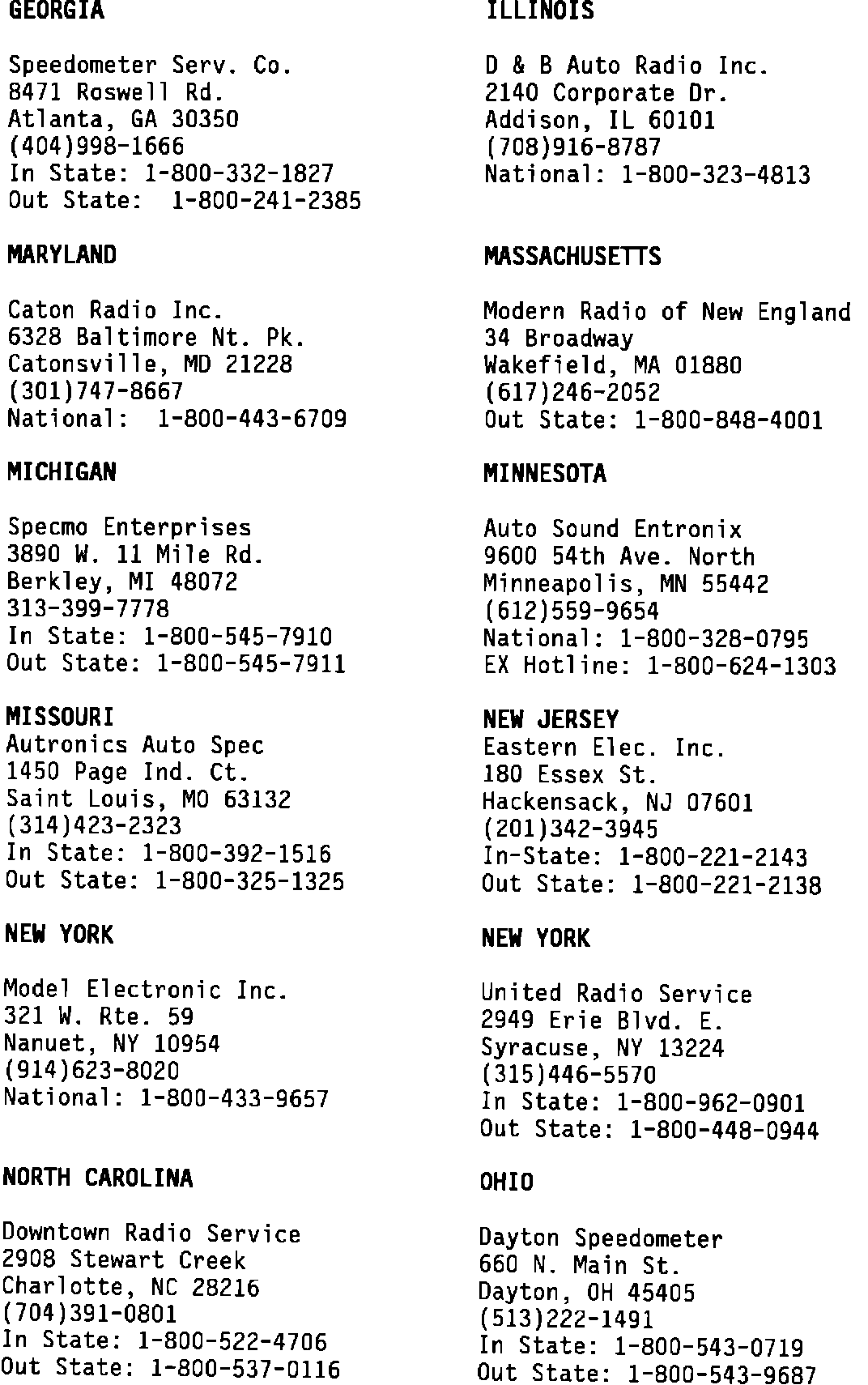

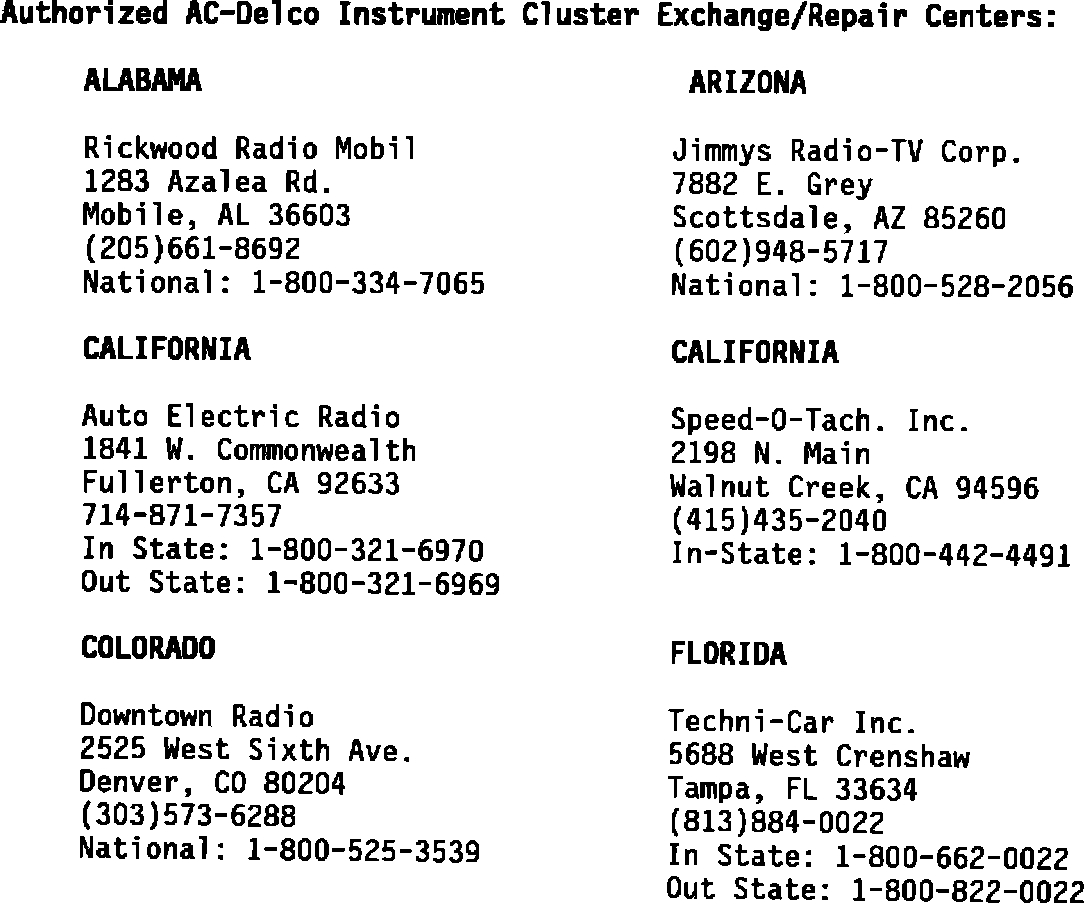

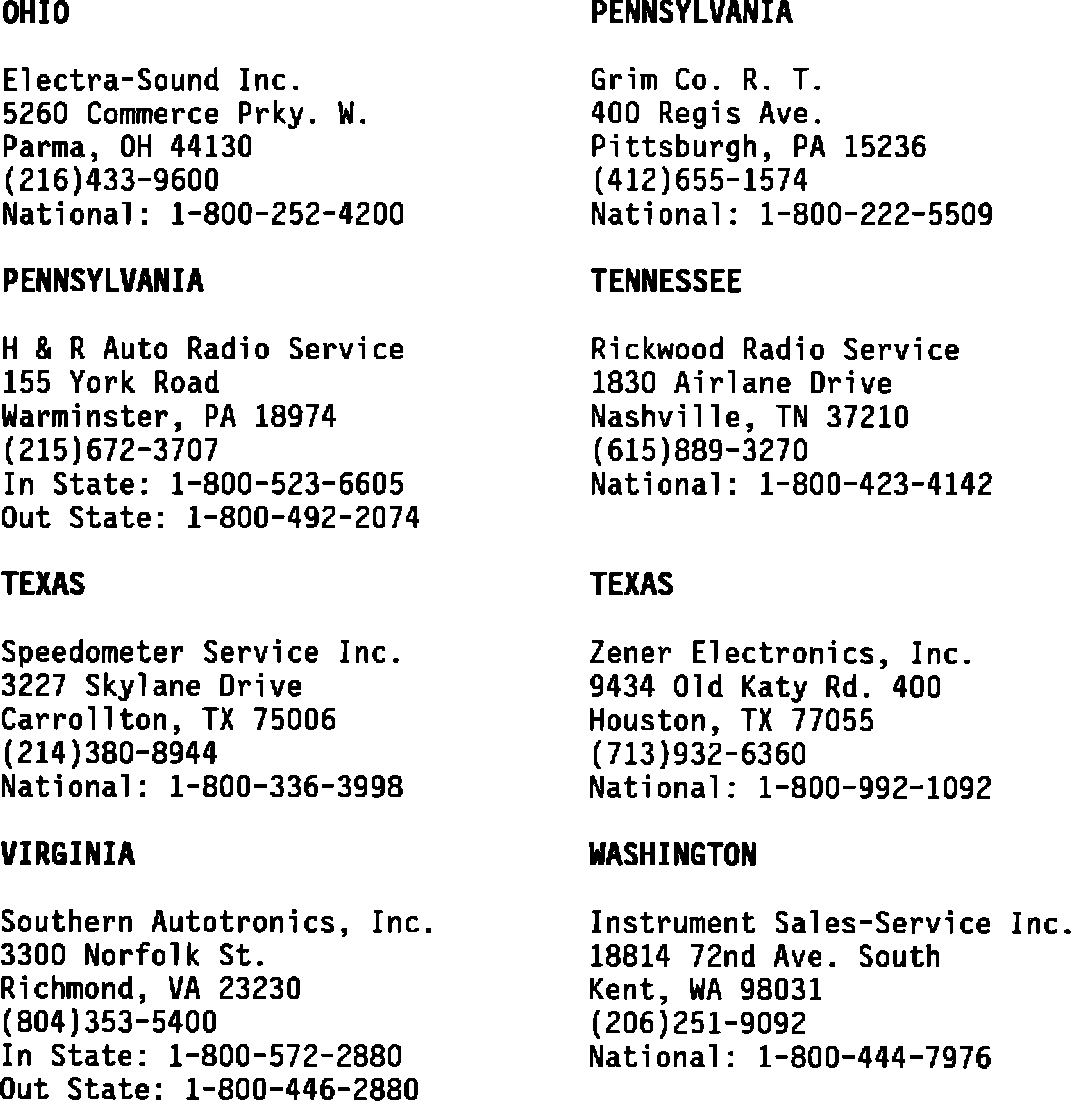

Exchange units are obtained by telephoning one of the authorized AC Delco Service centers listed in this bulletin. If your local center does not have a unit available for pre-exchange, call other centers listed. All centers are authorized to ship to any Buick dealer. Units are shipped with memo billings, via next day UPS, within 24 hours of the request. The memo billings are cancelled when the inoperative instrument cluster is received by the service center from which it was obtained.

Timely return of units for repair:

Return of units for repair in cases of pre-exchange is critical to the success of the exchange program. When dealers do not imediately return clusters, it results in local parts shortages. Technical Service could arrange to direct bill dealers who are delinquent with the return of clusters.

Please adhere to the following procedure when a vehicle requires dealer service for an inoperative instrument cluster:

1. Follow the diagnostics procedure in the Service Manual precisely and completely. Many conditions perceived by the observer to be in the instrument cluster are actually conditions with remote sensors and connectors. Proper diagnostics will identify the source of the condition and avoid unnecessary removal and shipping of functional assemblies to service centers.

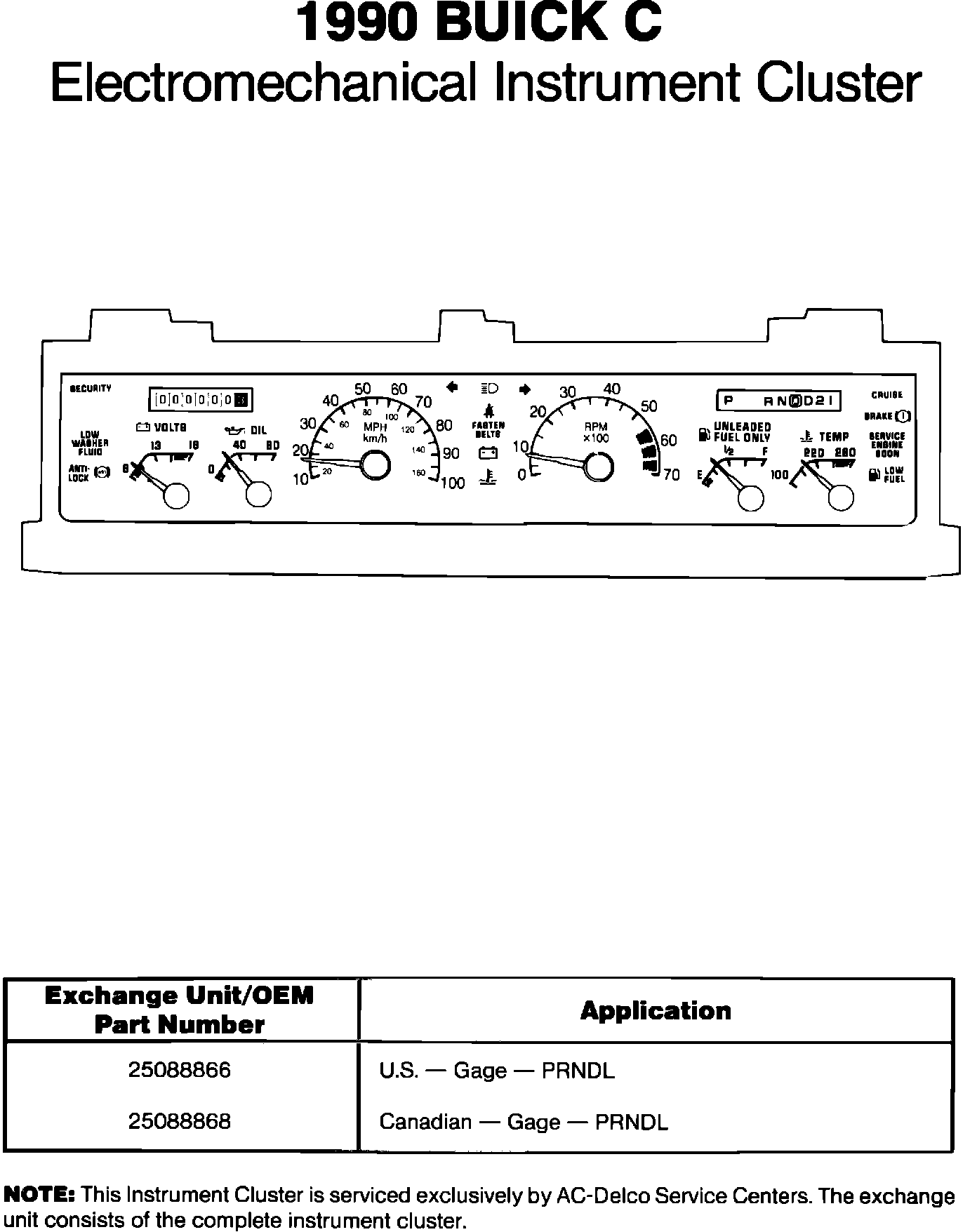

2. When the diagnostics are complete and the condition is determined to be the instrument cluster, determine which exchange is required by matching the unit to the cluster illustrations on the attached pages. If the odometer is part of the exchange unit, tell the service center the mileage to which the cluster should be set.

3. Upon receiving the exchange unit from the service center, take it to the vehicle still packed in the reusable shipping container. The container protects it from damage due to static electricity. Use care

in handling the exchange unit and the inoperative cluster. Hands must be free of dirt and grease. Avoid touching electronic components, as electrostatic discharge can degrade performance or cause failure.

4. Remove the inoperative instrument cluster and replace it with the exchange unit.

5. Include a description of the instrument cluster condition in the "Nature of Problem" area of the ACD-1078 form. Pack the inoperative instrument cluster in the reusable shipping container, together with five (5) copies of the completed ACD-1078 warranty form.

6. Enclosed in the reusable container is an addressed shipping label. Attach this label to the outside of the box and ship immediately to the service center from which you obtained the exchange unit. The dealer copy of the ACD-1078 warranty form will be returned and the memo billing cancelled upon receipt of the inoperative instrument cluster at the service center.

7. Failure to return the inoperative instrument cluster in the special reusable container, can result in a container replacement fee. Failure to return the ACD-1078 warranty form or the inoperative instrument cluster to the service center within 30 days of the date the exchange unit was shipped, can result in a repair fee or an instrument cluster replacement fee.
