Engine Specifications

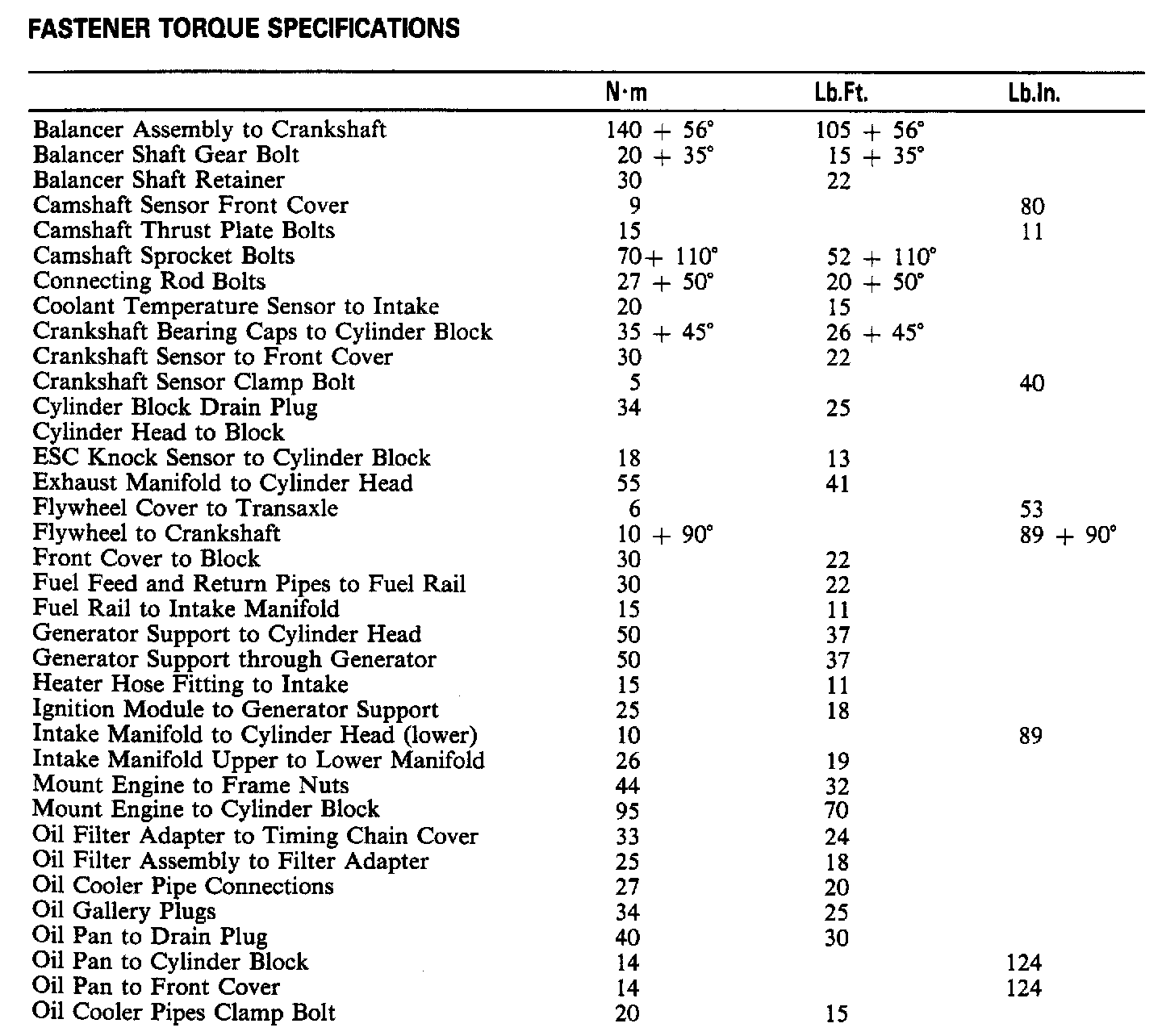

Torque Specifications:

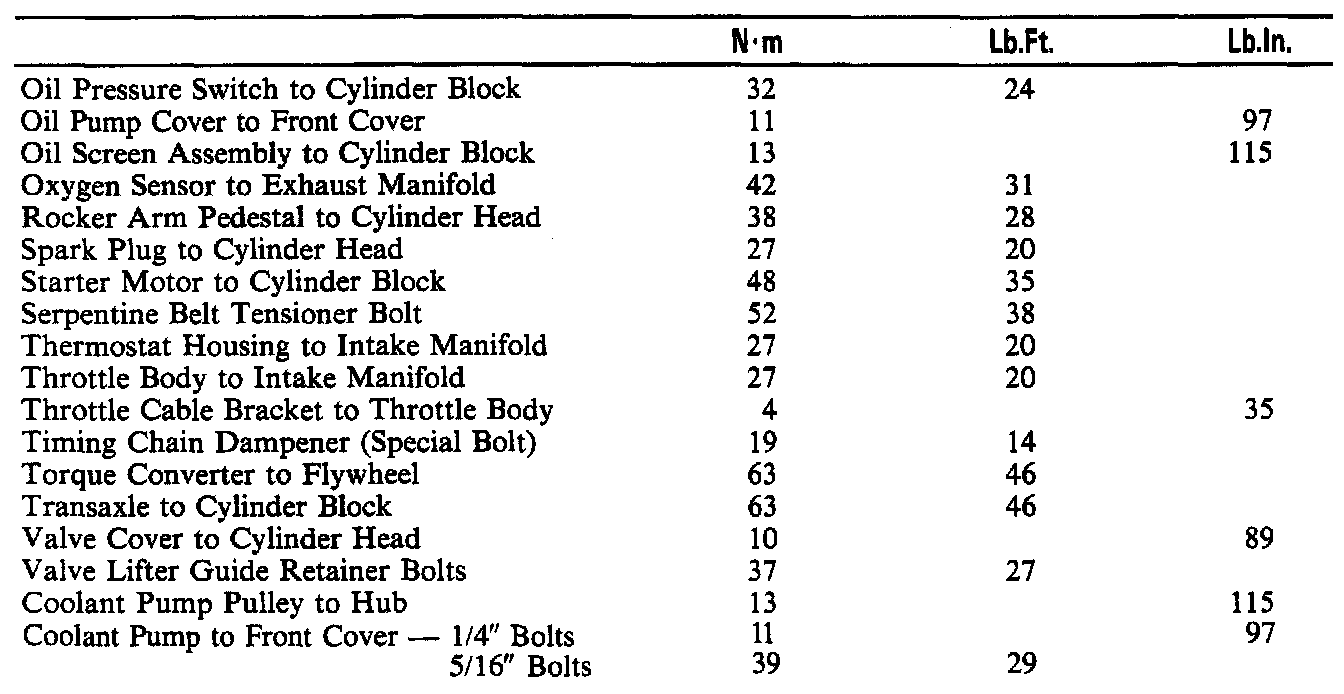

Continued Torque Specifications:

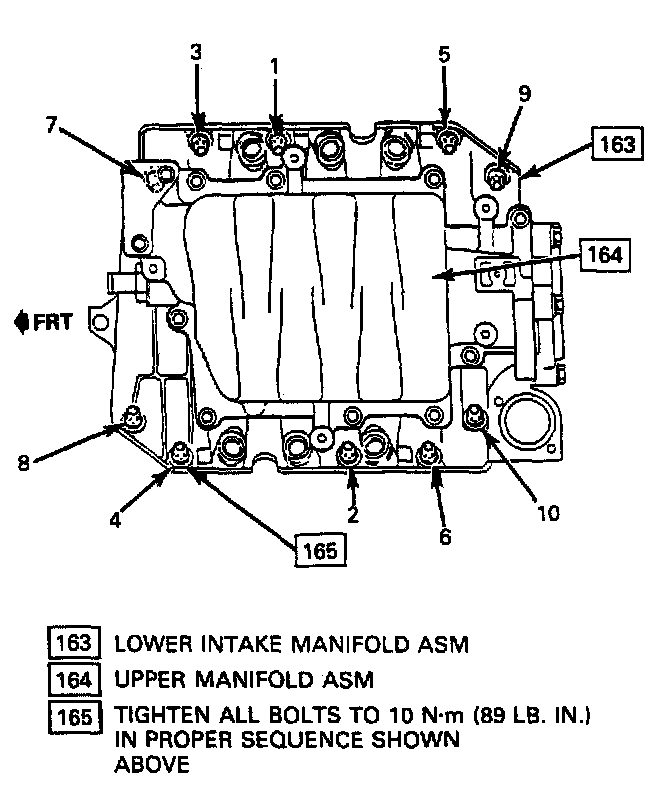

Intake Manifold Sequence:

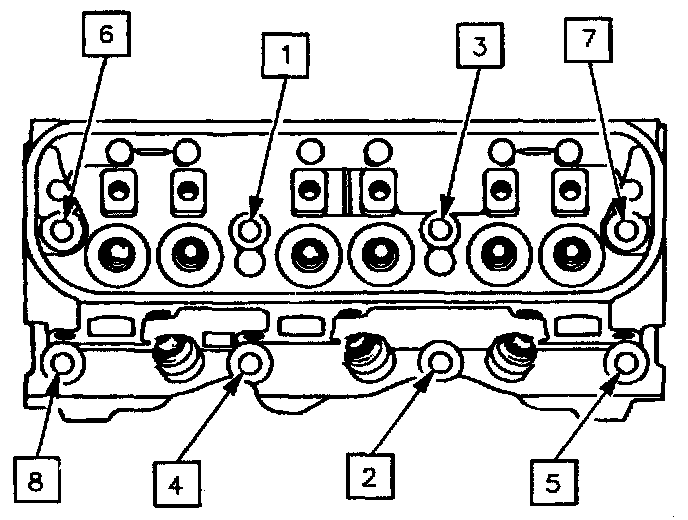

Cylinder Head Sequence:
