Installation

Shoe And Lining Assembly:

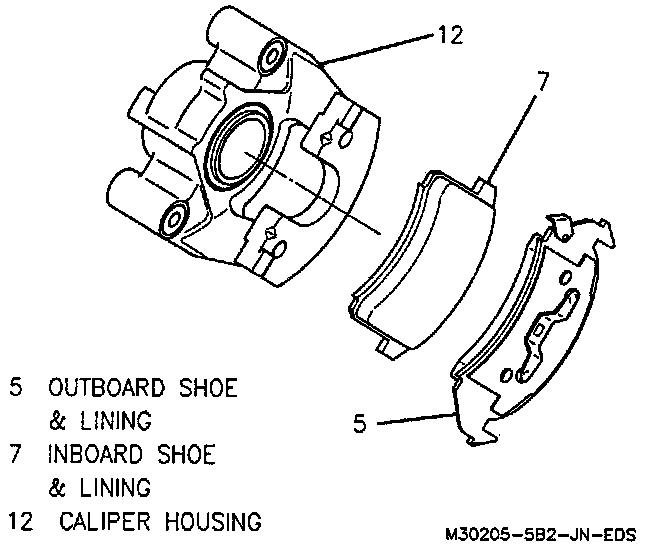

Installing Inboard Shoe And Lining:

Installing Outboard Shoe And Lining:

NOTE: Before installing new shoe and linings, use denatured alcohol to wipe outside surface of boot clean.

1. Bottom piston into caliper bore by installing a C-clamp over caliper housing. Tighten clamp slowly to drive piston into caliper bore taking care not to damage piston or piston boot with C-clamp.
2. After bottoming piston, lift inner edge of boot next to piston and press out any trapped air. Boot must lay flat. Make sure convolutions are tucked back into place.
3. Install inboard shoe and lining by snapping shoe retaining spring into piston inside diameter. Shoe retainer spring is already staked to the inboard shoe. Shoe must lay flat against piston.
4. After installing shoe and lining, check that boot is not touching the shoe. If there is contact, remove the shoe and lining and re-seat or re-position the boot.

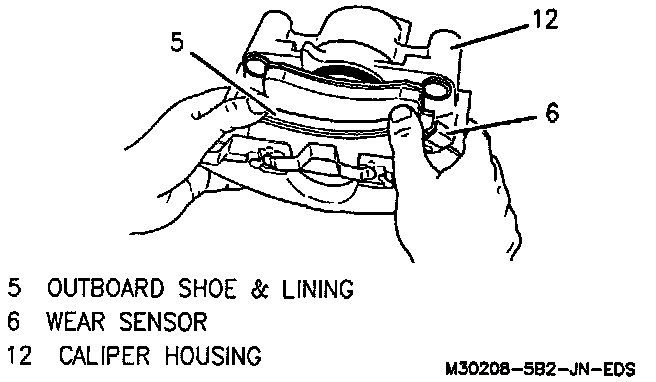

5. Install outboard shoe and lining with wear sensor at leading edge of shoe. During forward wheel rotation, the back of the shoe must lay flat against caliper.
6. Install caliper.
7. Apply a firm force three times to the brake pedal to seat the linings.
