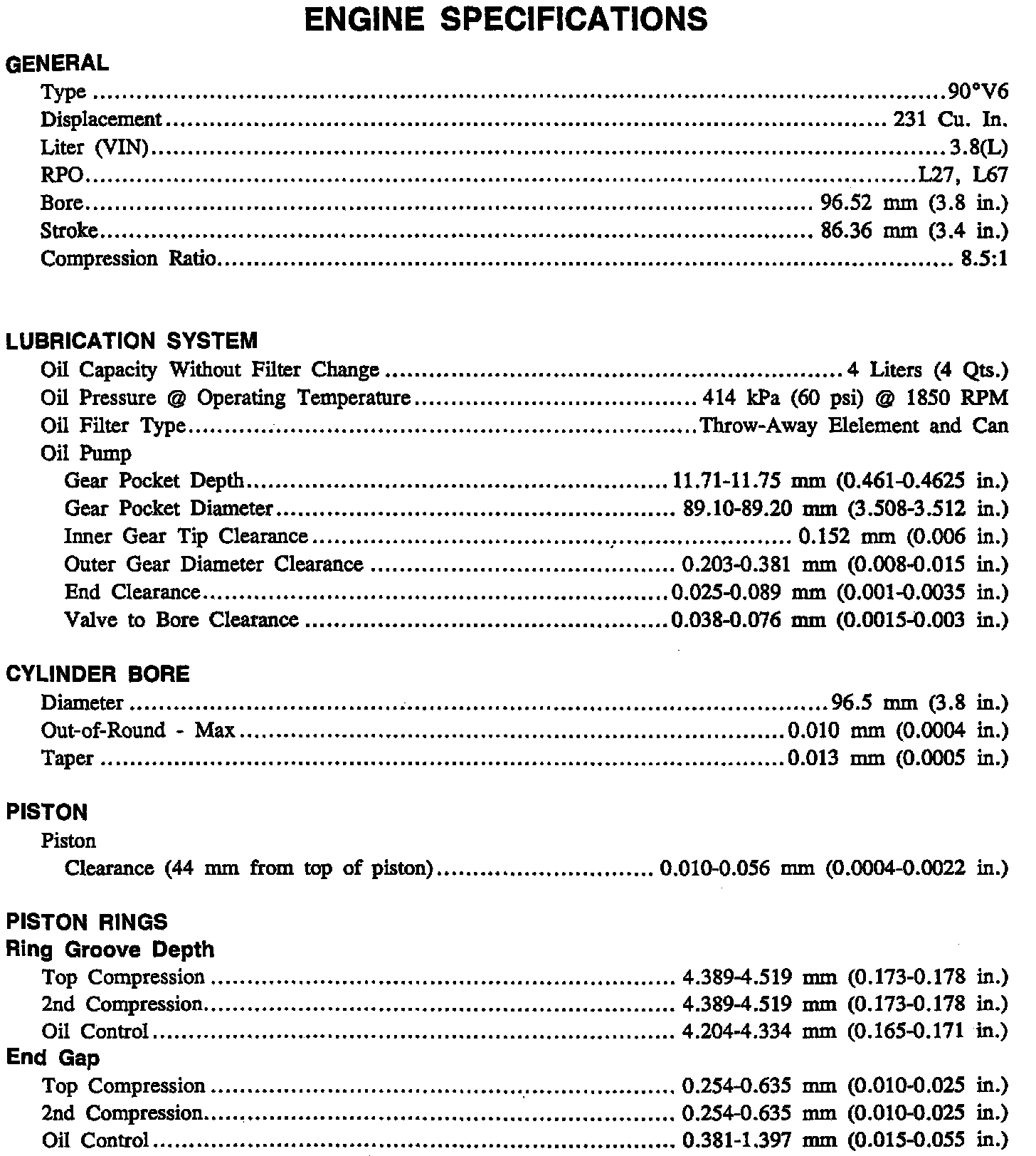

Engine Specifications




Engine Specifications (continued):




Engine Specifications (continued):

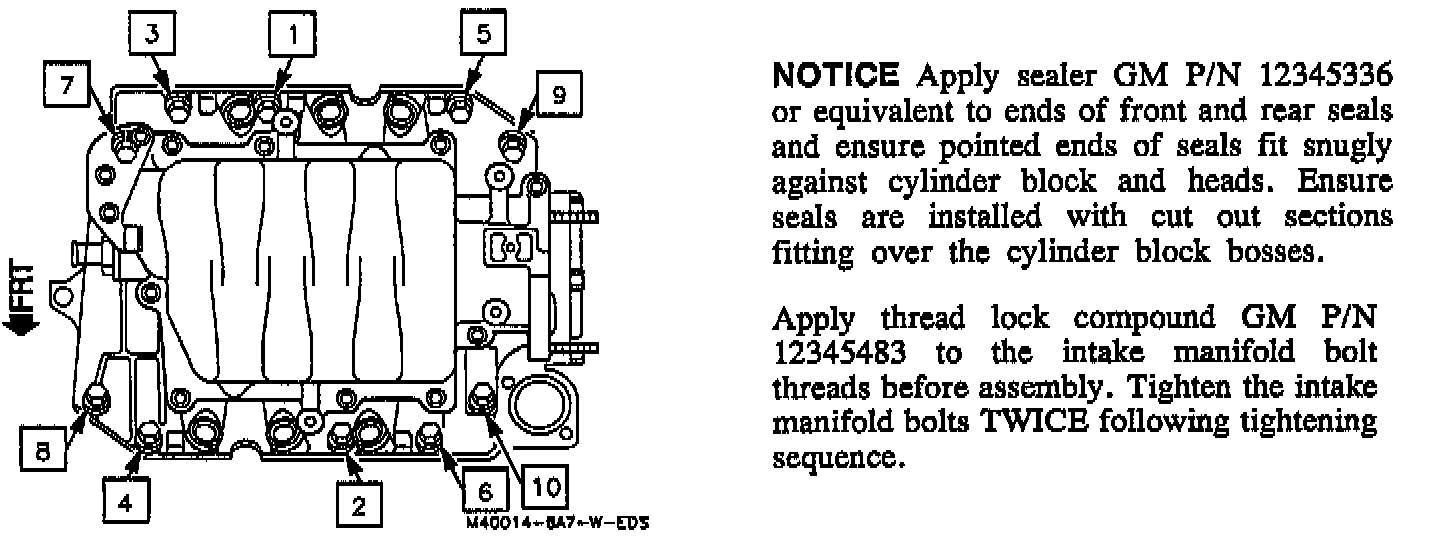

Intake Manifold Sequence:





Intake Manifold Sequence:
