Electronic Control Module (ECM)

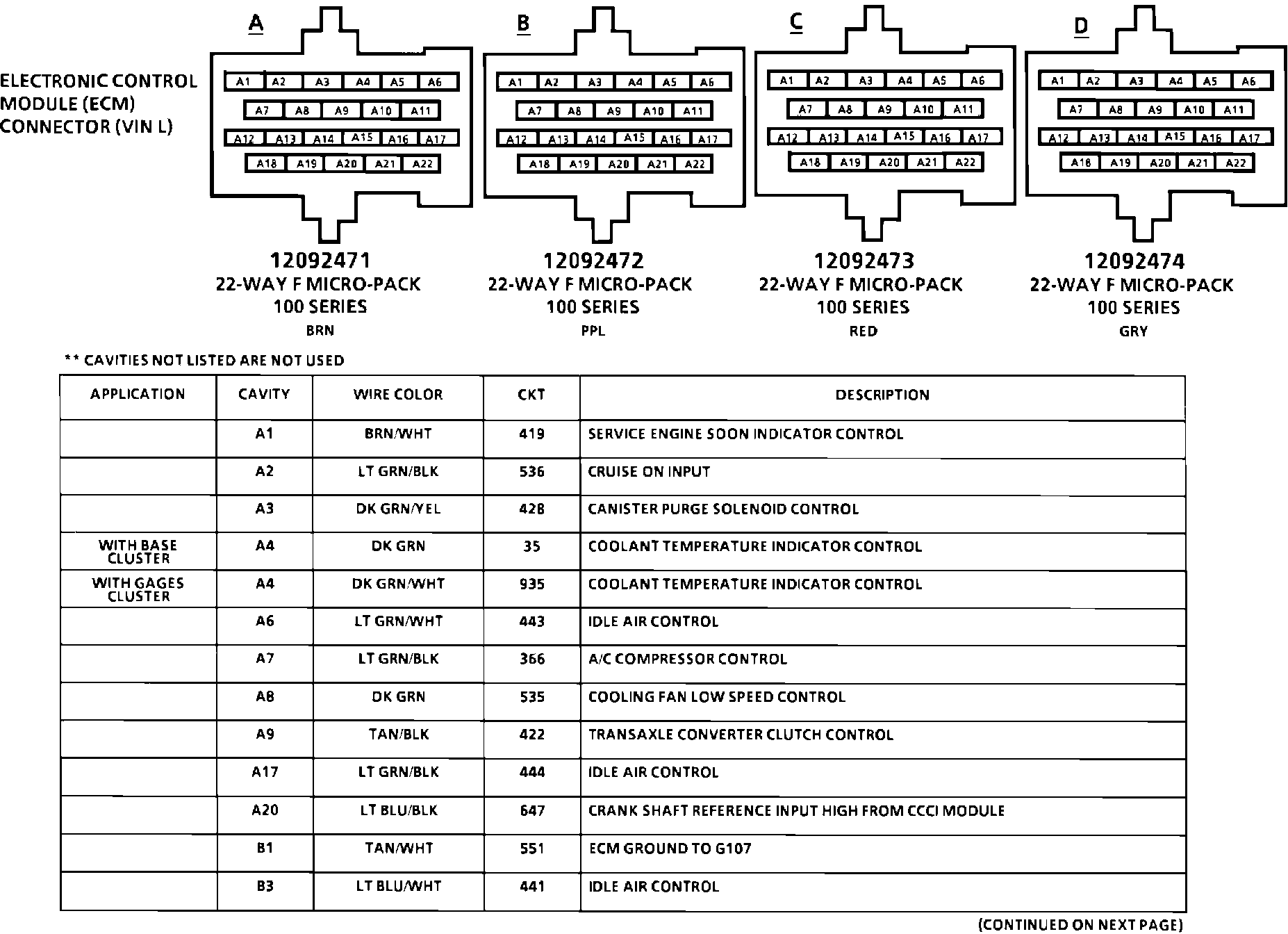

Electronic Control Module (ECM) Connector:

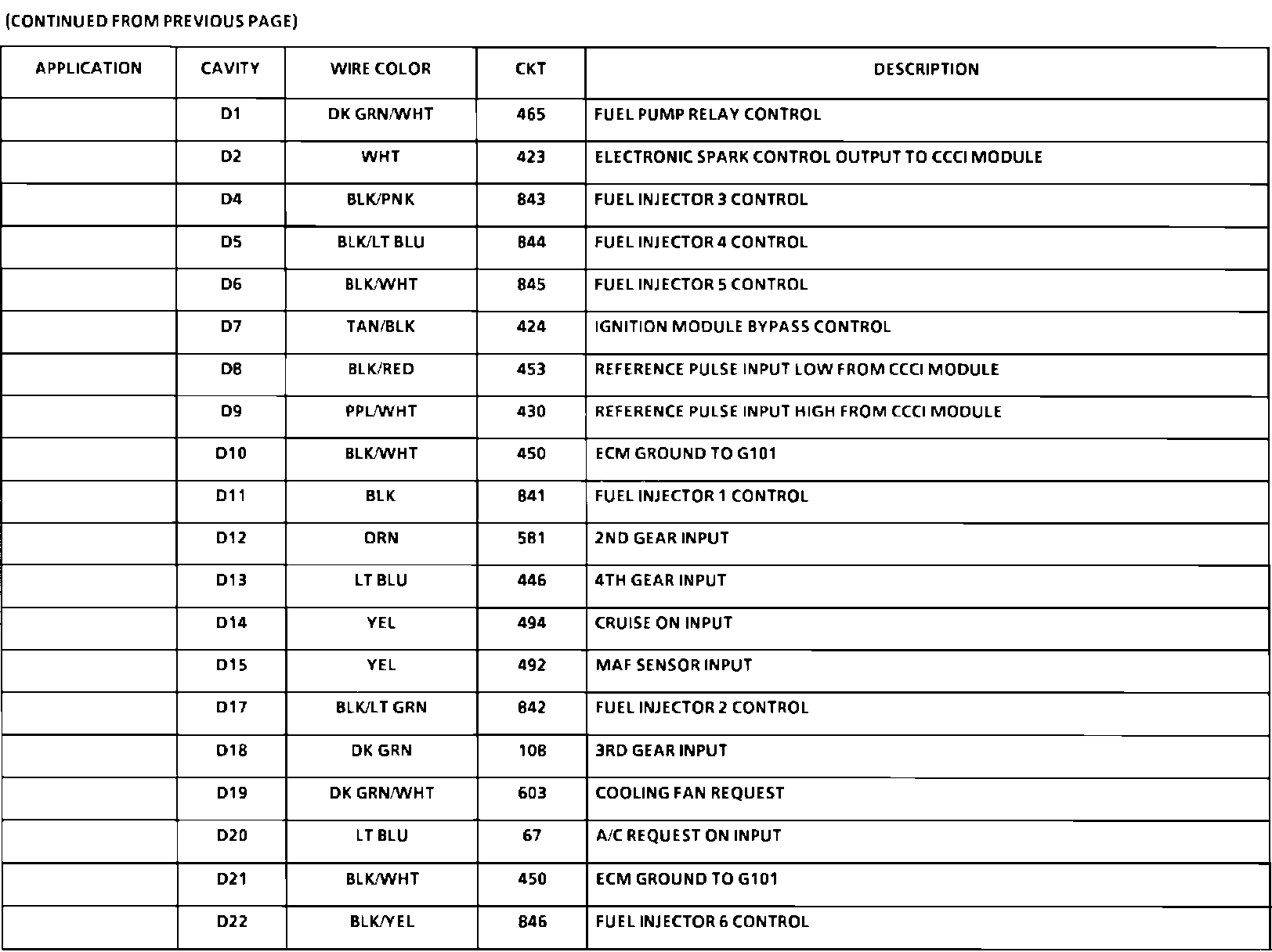

Electronic Control Module (ECM) Connector:

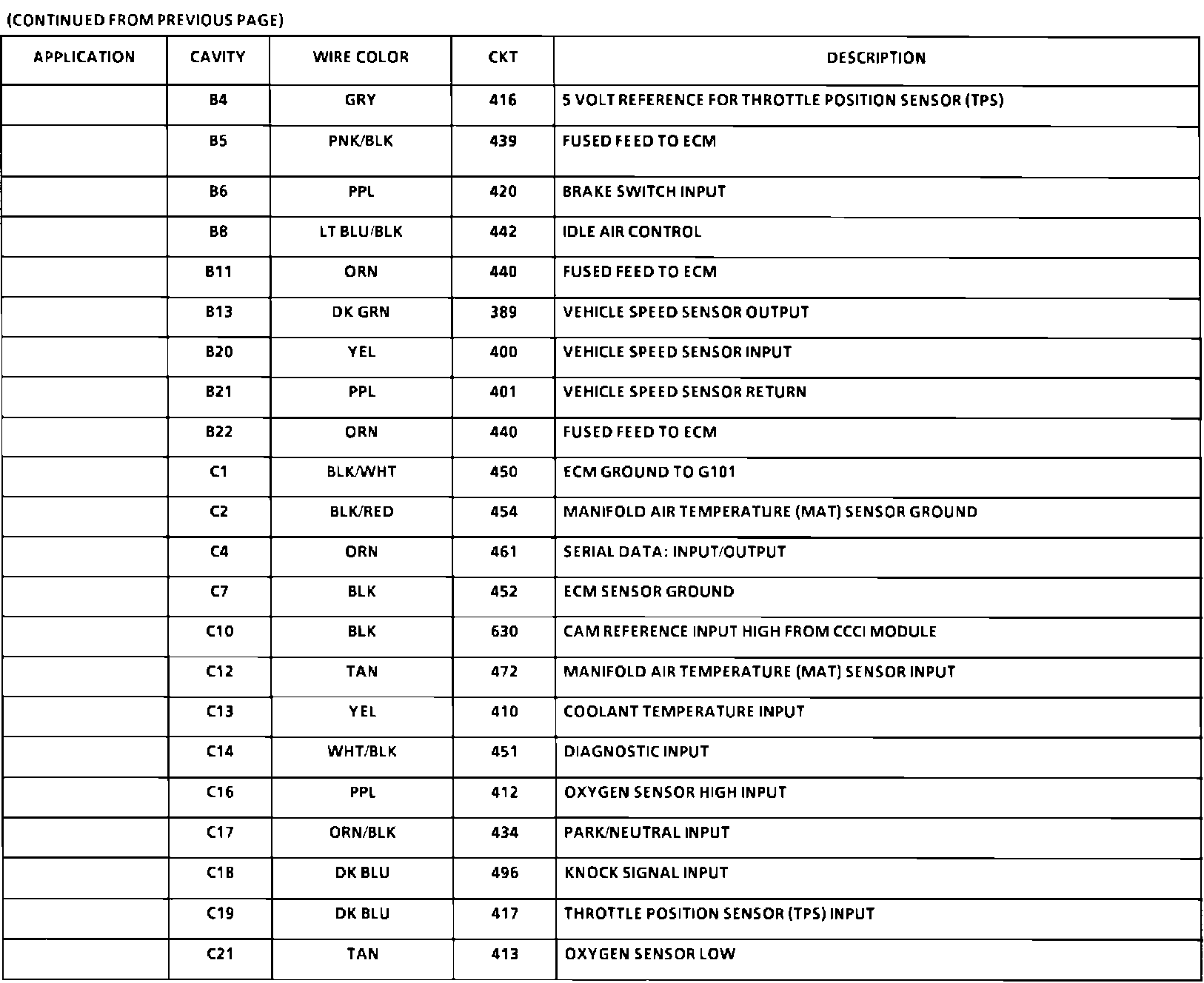

Electronic Control Module (ECM) Connector:
