Home
>>
Buick
>>
1992
>>
Riviera V6-231 3.8L VIN L SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Antitheft and Alarm Systems
>>
Alarm Module, (Vehicle Antitheft)
>>
PASS-Key Decoder Module
PASS-Key Decoder Module

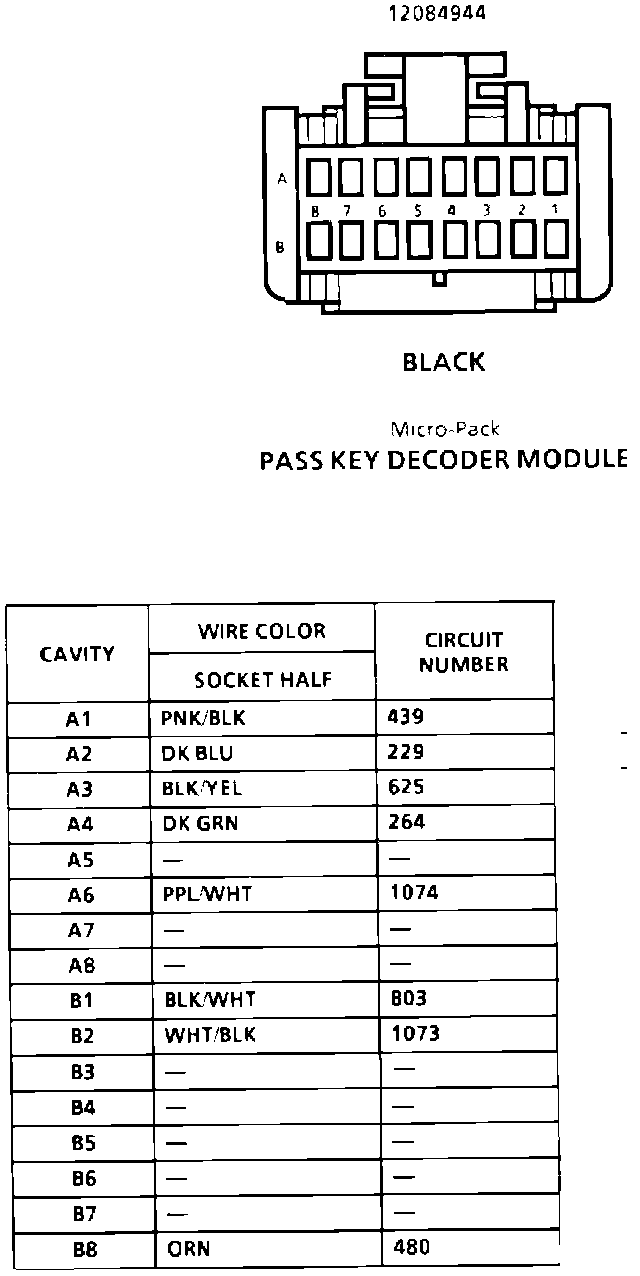

Pass Key Decoder Module Connector View:
