Home >> Buick >> 1992 >> Riviera V6-231 3.8L VIN L SFI >> Repair and Diagnosis >> Diagrams >> Connector Views >> Antitheft and Alarm Systems >> Alarm Module, (Vehicle Antitheft) >> Theft Deterrent Module

Theft Deterrent Module

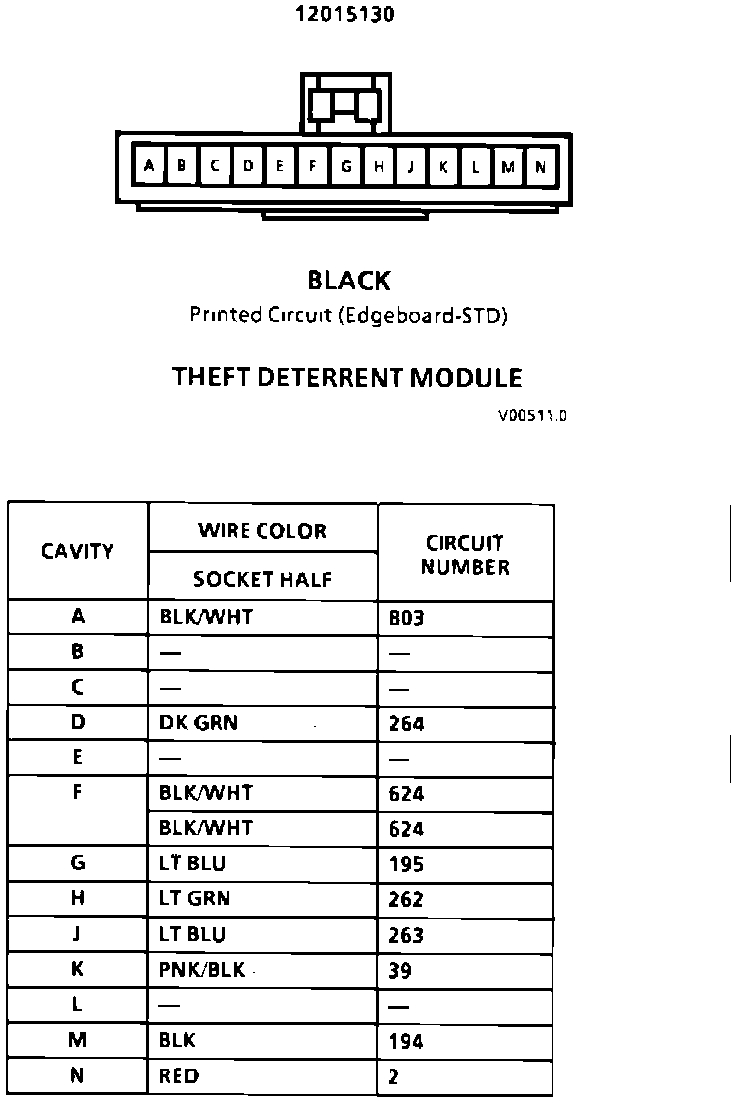

Theft Deterrent Module Connector View:
