Window Regulator

WINDOW REGULATOR

Rear Door Hardware Attachments:

Rear Door Manual Window Regulator, Electric Regulator Similar:

Typical Rear Door Hardware Service Parts:

Rear Door Hardware:

TOOL REQUIRED:
^ J 34940 Heavy Duty Rivet Gun

REMOVE OR DISCONNECT
1. Door trim panel and water deflector.

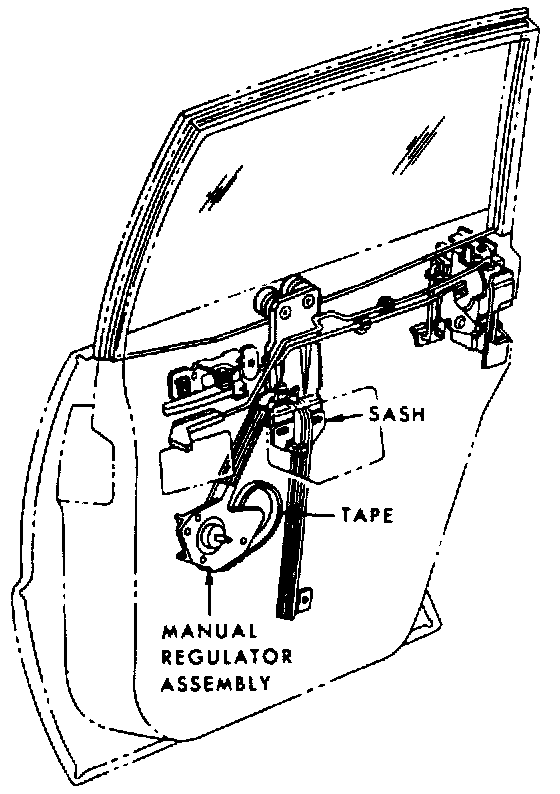

2. Tape window to frame in up position using cloth-backed tape.
3. Lower sash bolts and sash by rotating 90 degrees and pulling outboard.

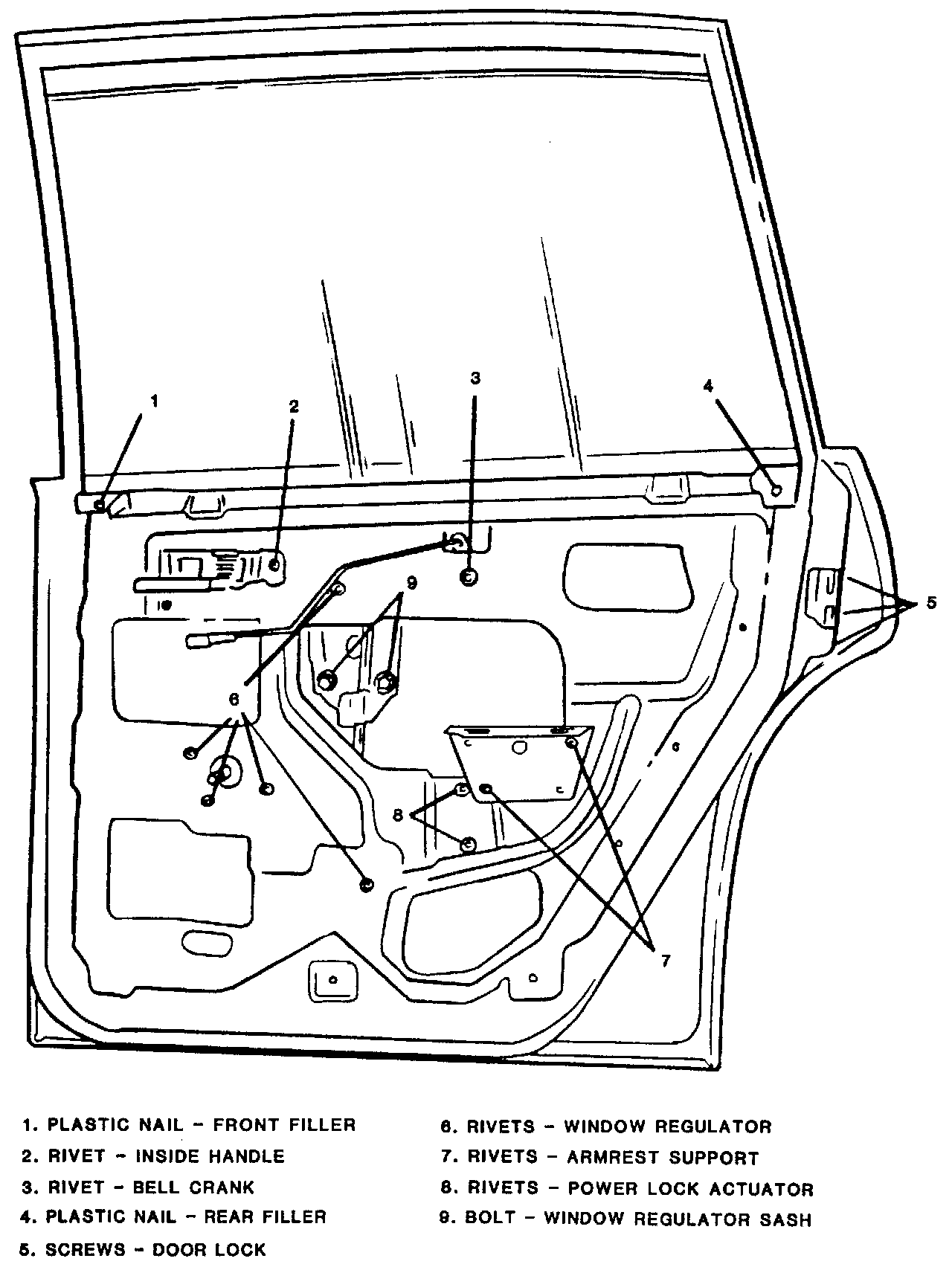

4. Punch out center pins of regulator rivets. Drill out rivets using 1/4 inch drill bit.
5. For manual regulator, remove regulator through largest access hole. For electric regulator, remove window. Move regulator and motor assembly rearward and remove electrical connector. Remove regulator and motor assembly through largest access hole.

INSTALL OR CONNECT
1. Using J 34940, rivet regulator to inner panel using 1/4 inch x 1/2 inch aluminum peel type rivets (part no. 9436175 or equivalent). If rivet tool is not available, use the following nuts and bolts method.
2. U clips on regulator at three attaching locations. Be sure to install clips with clinch nuts on outboard side of retainers.
3. Slide regulator through the largest access hole and align regulator attaching clips with holes in inner panel. Attach regulator metal retainers with M6.0 x 1 x 13 (1/4-20 x 1/2 inch) screws (part no. 9419723 or equivalent). Attach housing part of regulator with M6.0 x 1 x 13 (1/4-20 x 1/2 inch) screws into 6 mm (1/4 inch) nuts with integral washers.

TIGHTEN
^ Screws to 12 N.m (106 lb in).

4. Lower sash bolts.

TIGHTEN
^ Bolts to 7 N.m (62 lb in).

5. Tape from window, and check window operation.
6. Water deflector and door trim panel.
