Engine Control Module
>>
Harness Connector
Harness Connector

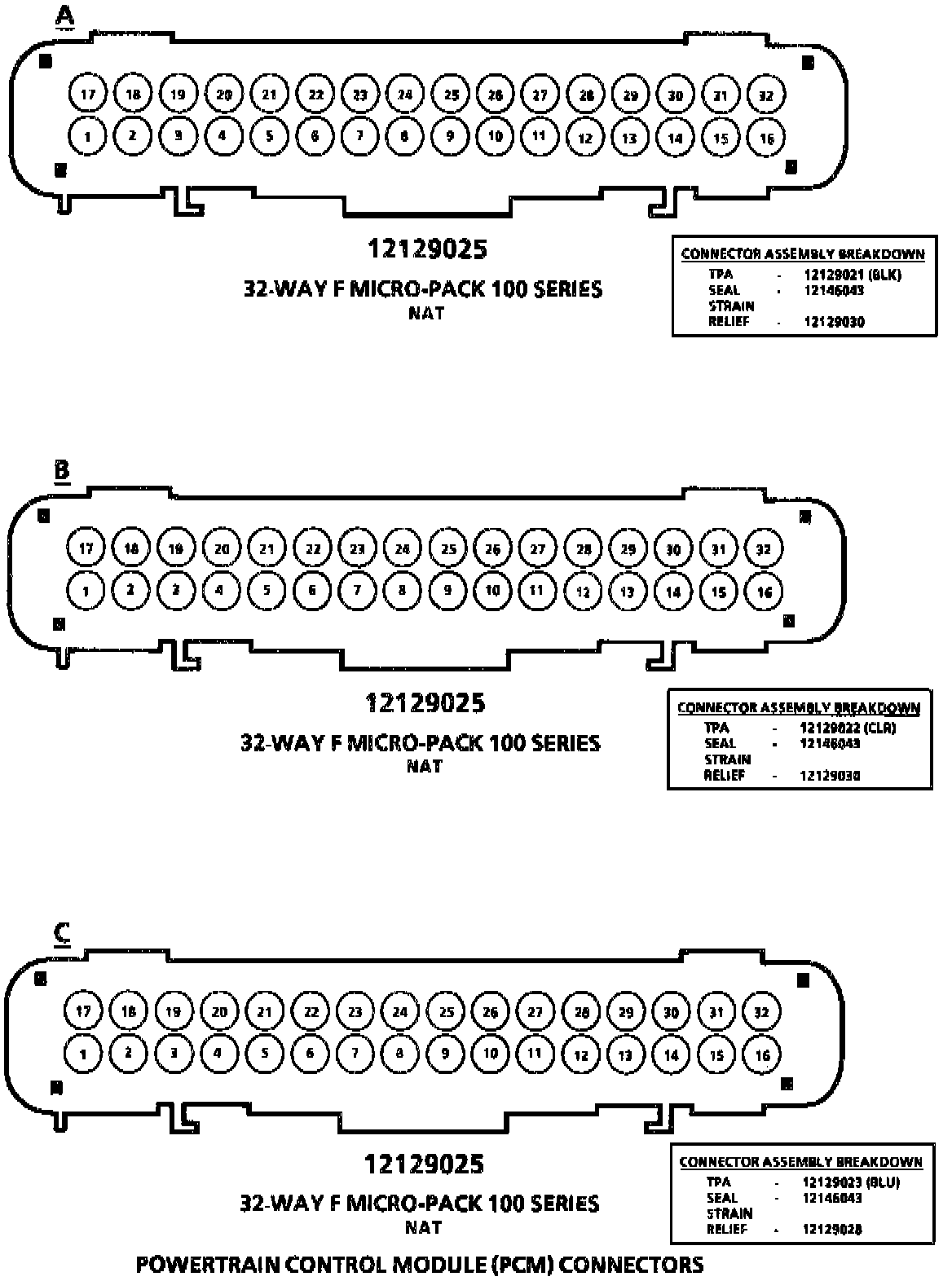

Powertrain Control Module (PCM) Connectors: A, B & C:
