Ignition Control Module

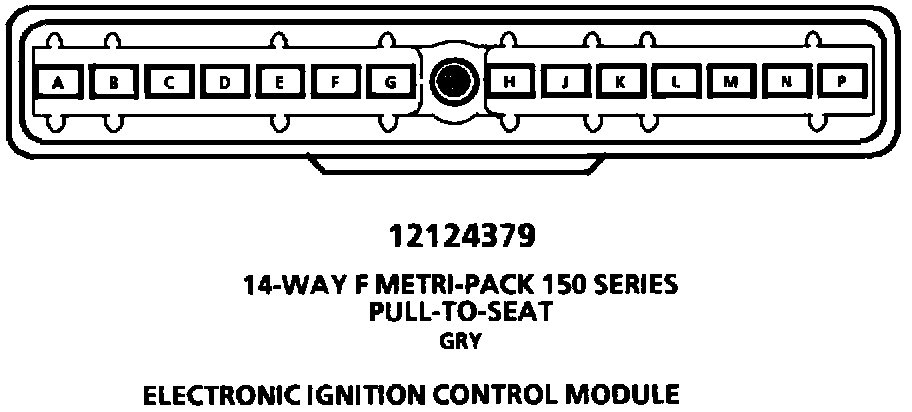

Electronic Ignition Control Module:

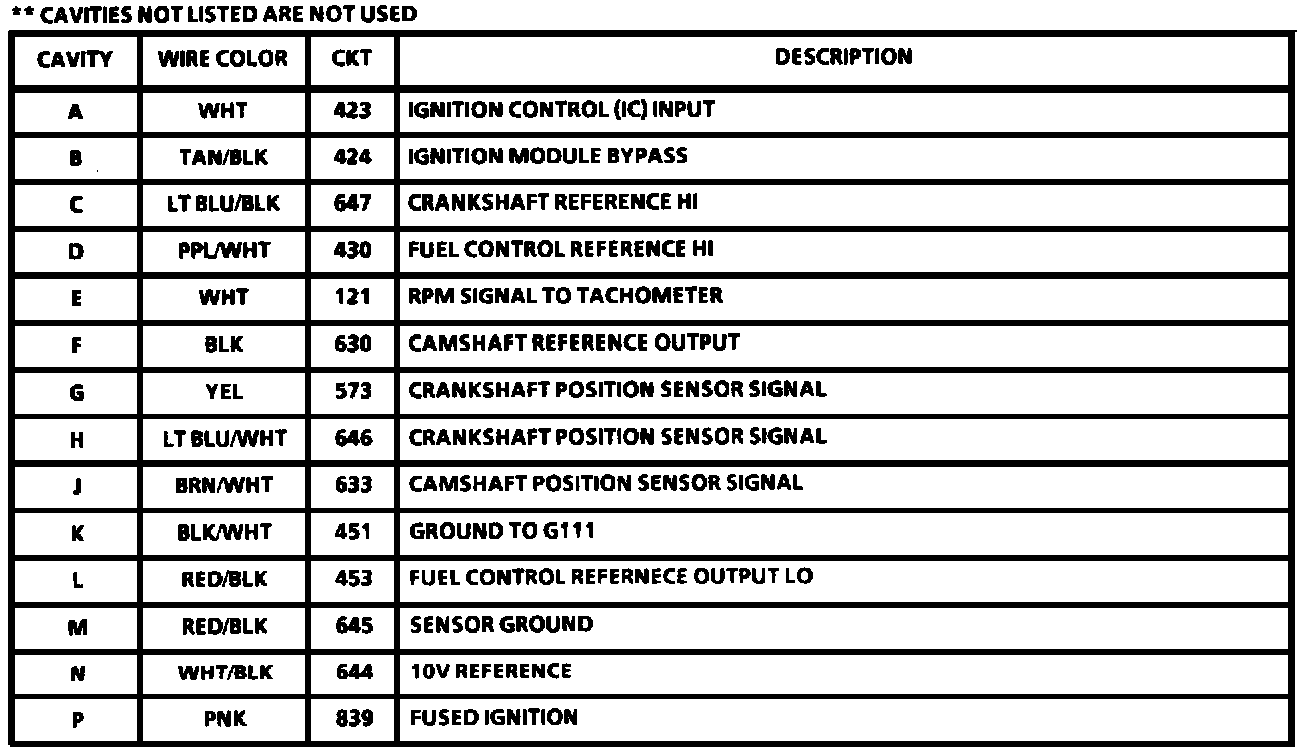

Electronic Ignition Control Module:

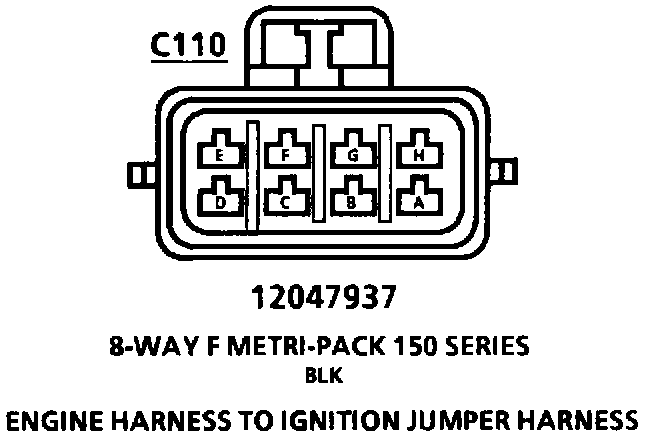

Engine Harness To Ignition Jumper Harness: C110:
