Electronic/Powertrain Control Module (ECM/PCM)

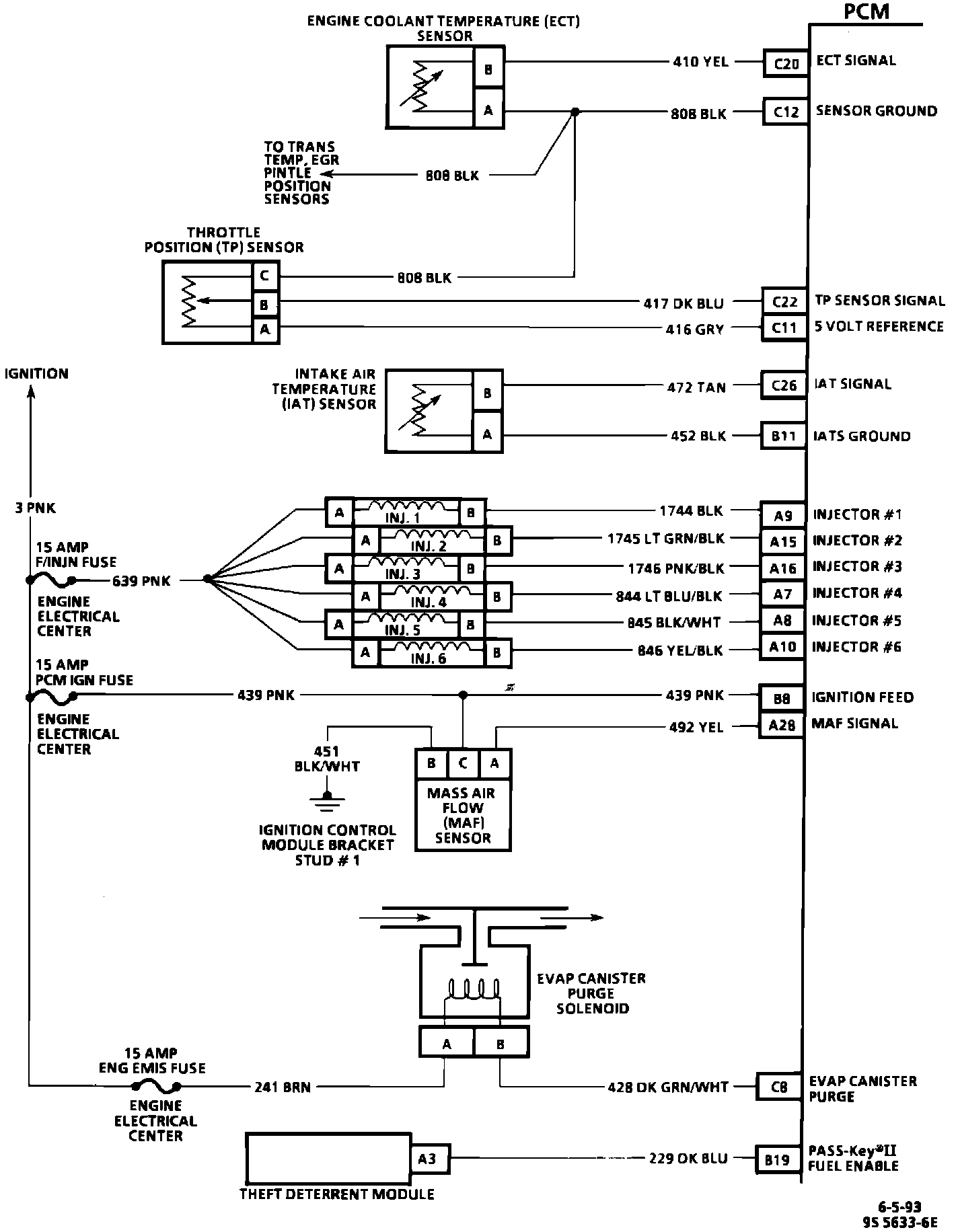

Engine Management Circuit Schematic (1 Of 4):

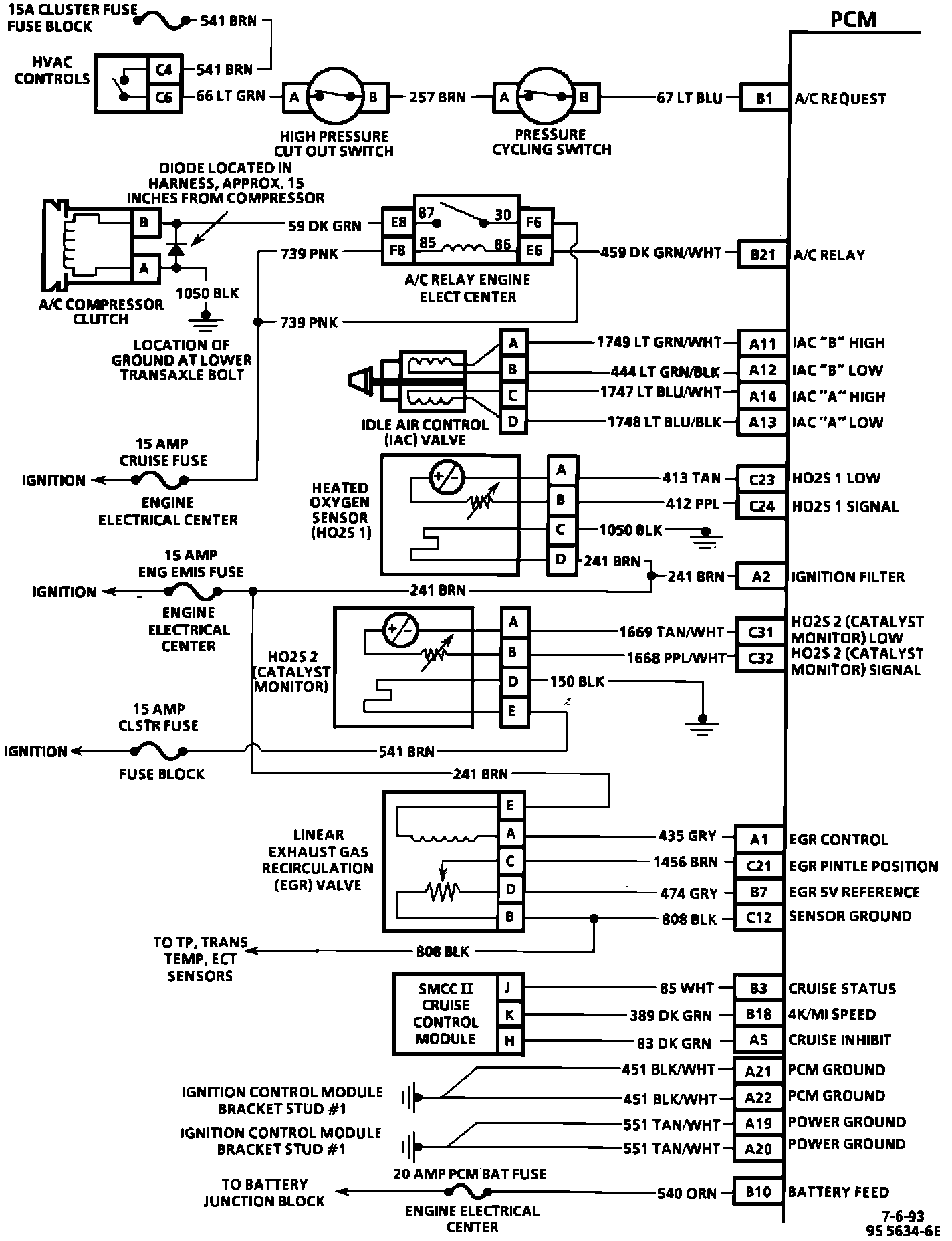

Engine Management Circuit Schematic (2 Of 4):

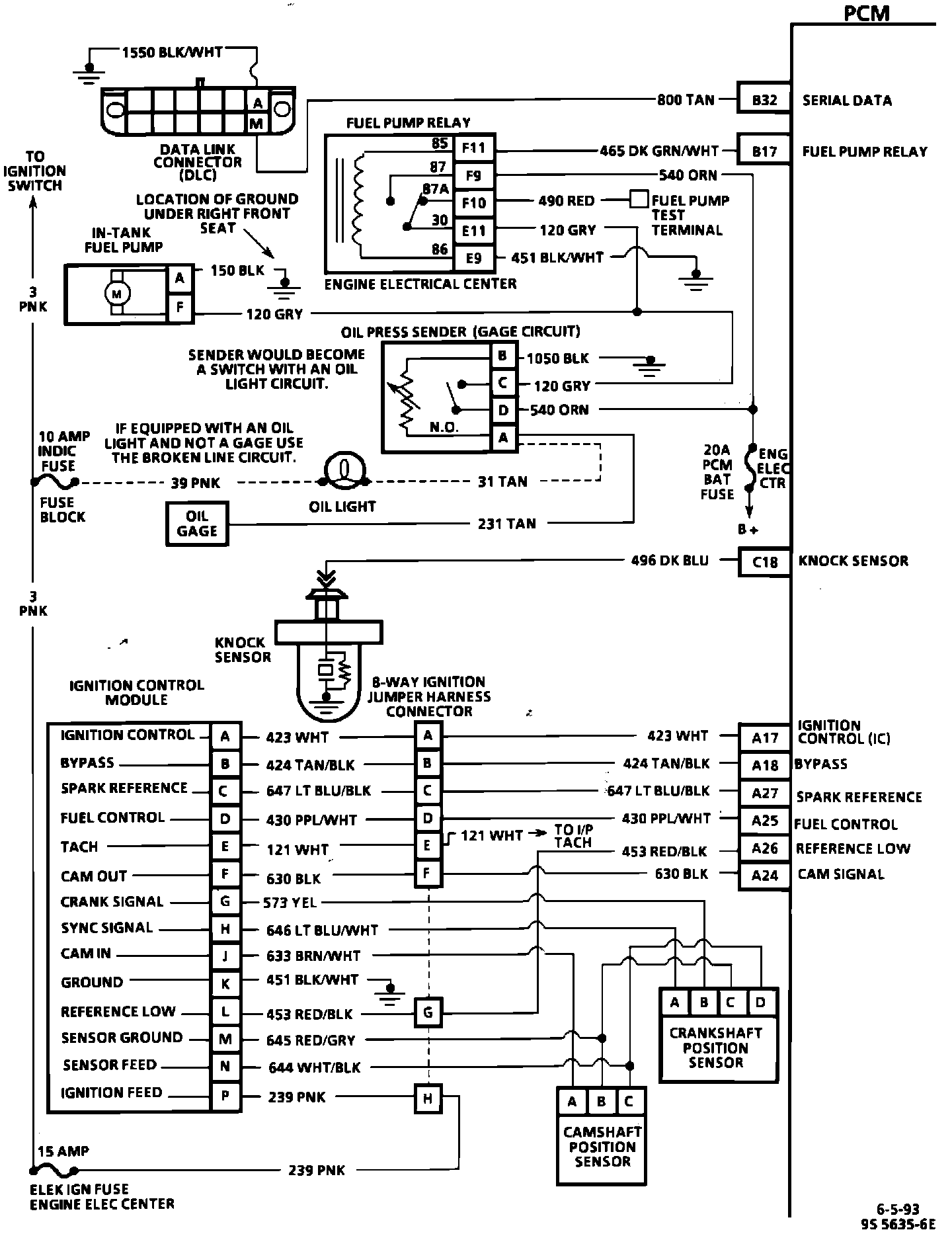

Engine Management Circuit Schematic (3 Of 4):

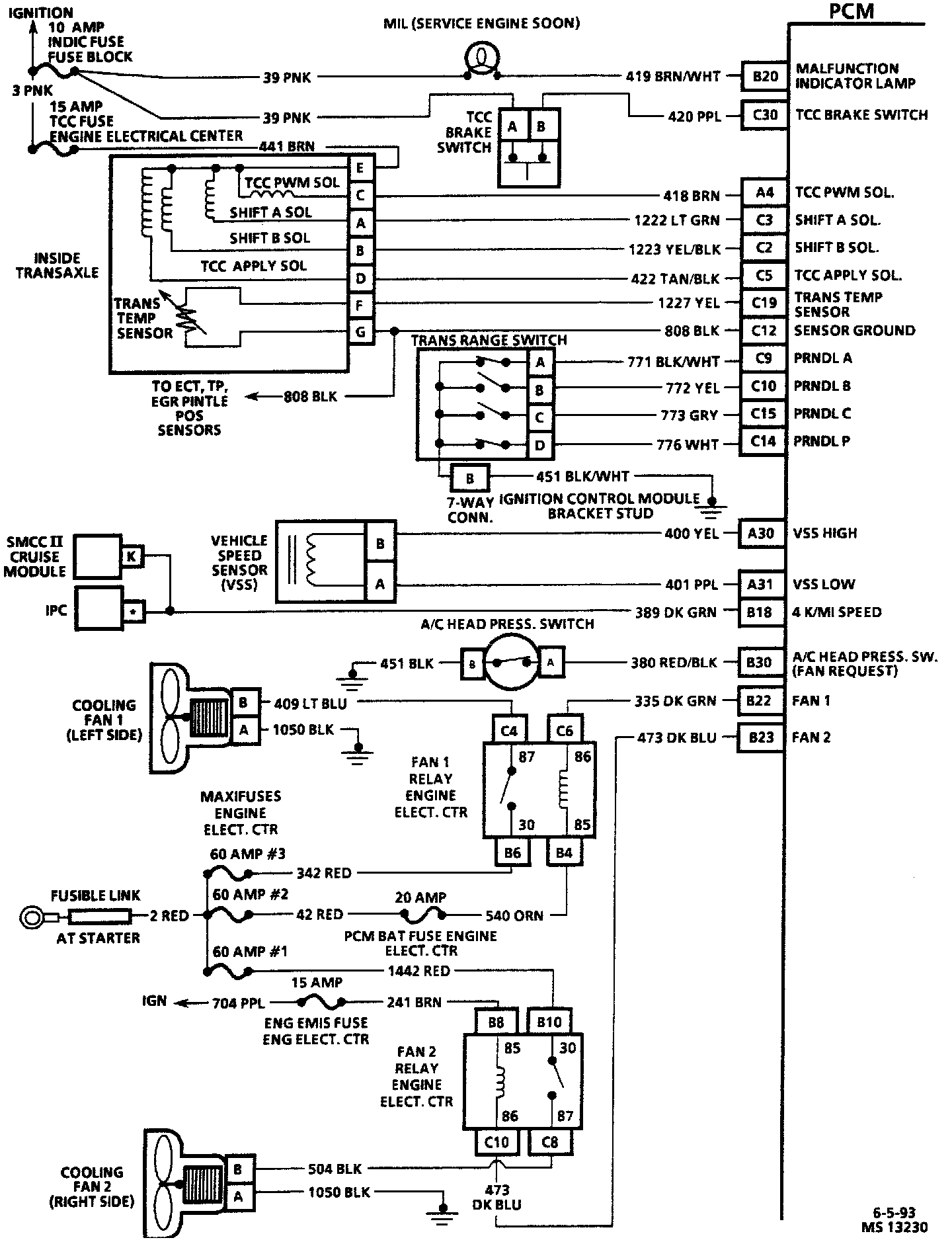

Engine Management Circuit Schematic (4 Of 4):
