System Specifications

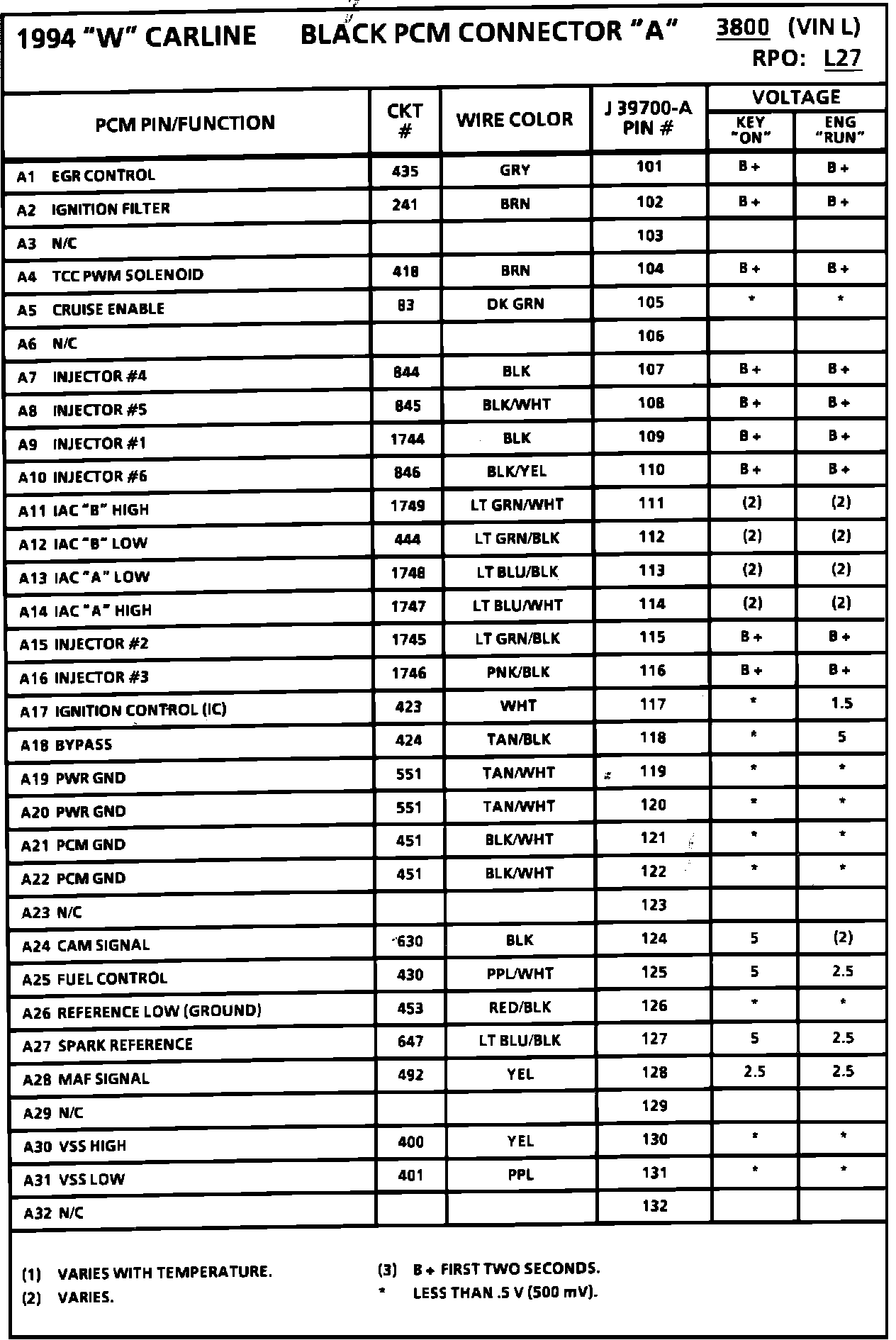

PCM Connector ID And Terminal/Voltage Reference Chart (1 Of 3):

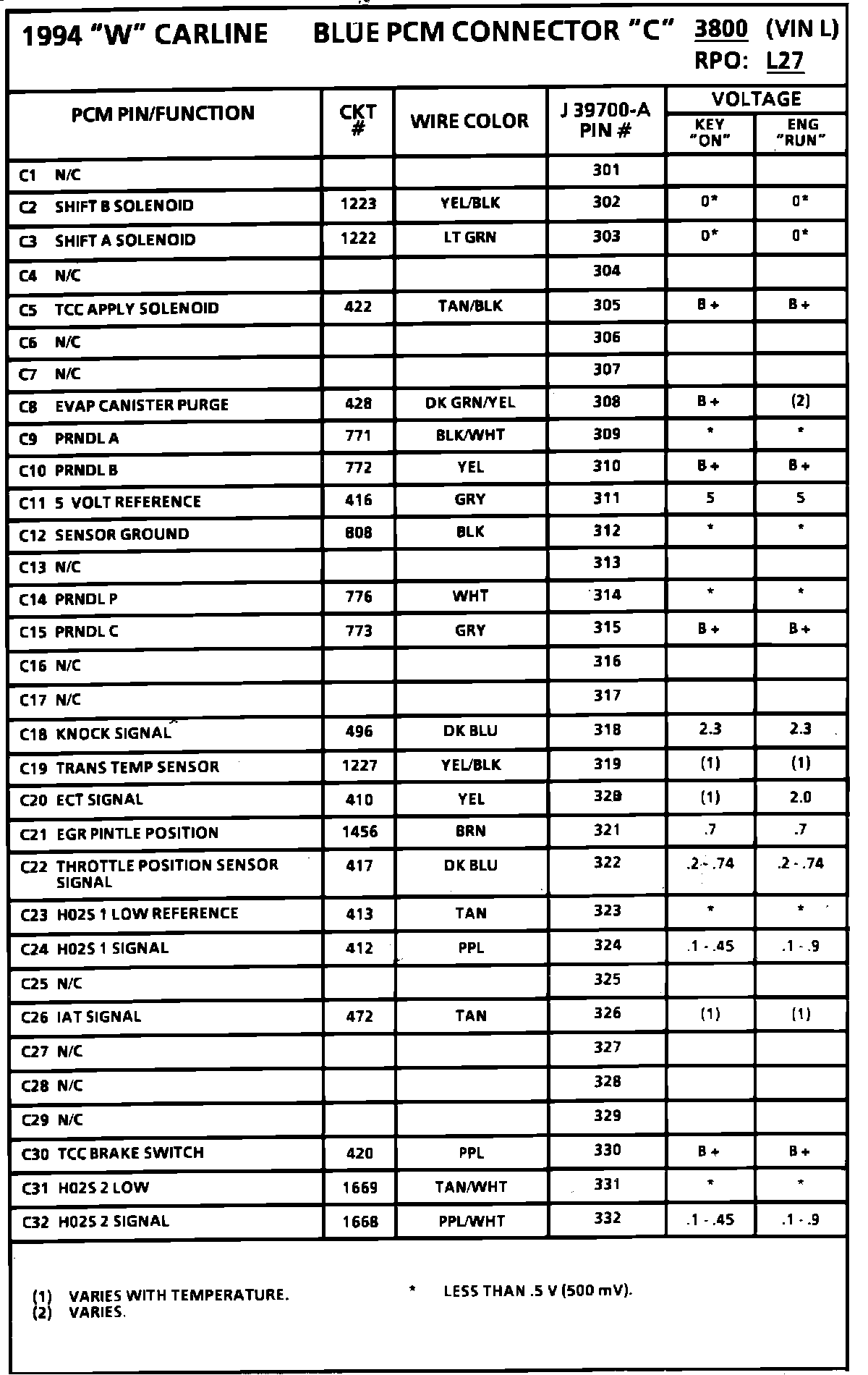

PCM Connector ID And Terminal/Voltage Reference Chart (2 Of 3):

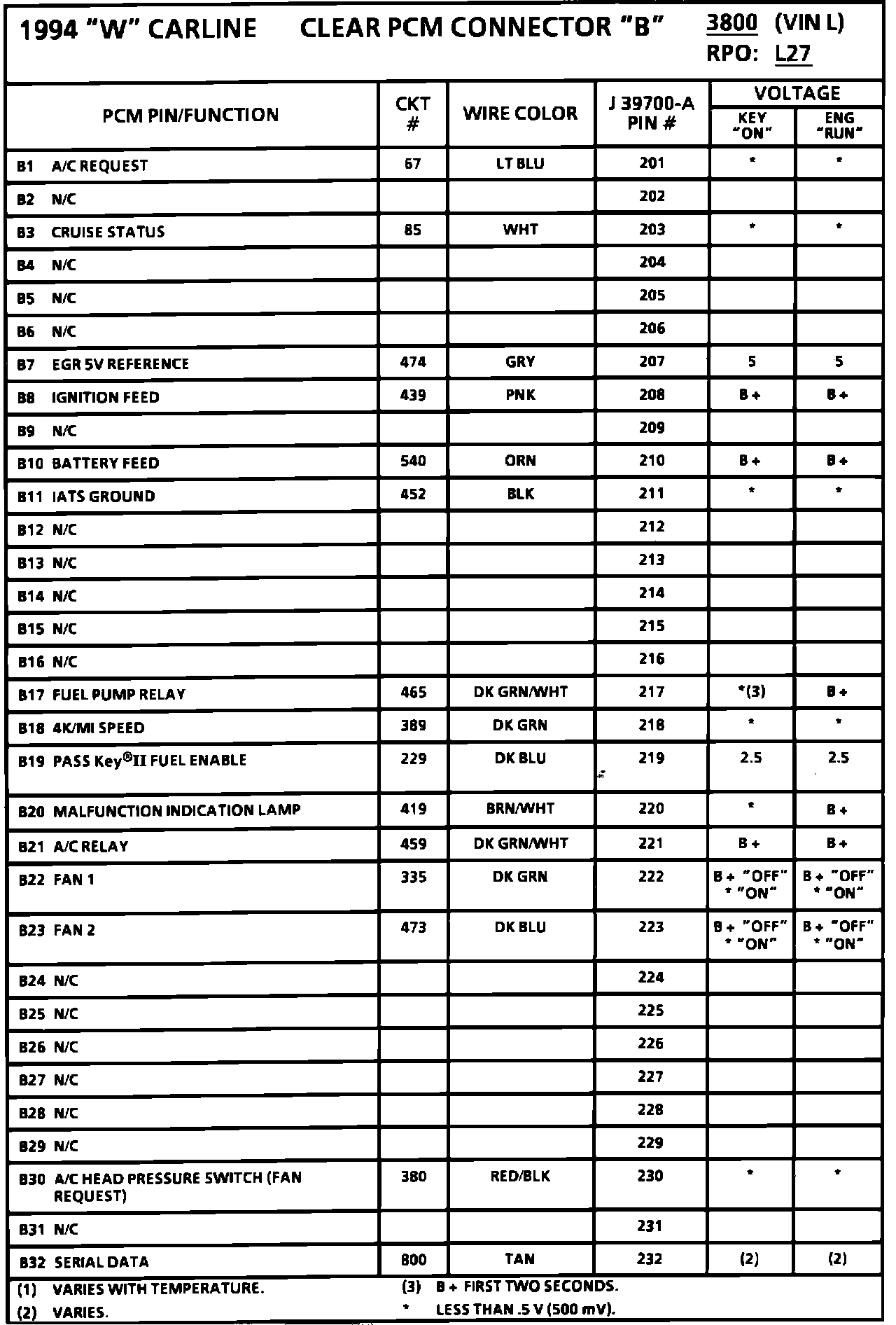

PCM Connector ID And Terminal/Voltage Reference Chart (3 Of 3):
