System Diagram
System Diagram

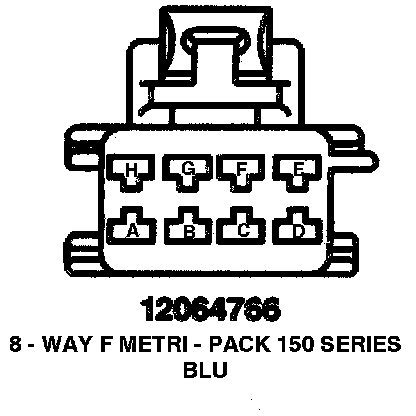

8-way F Metri-pack 150 Series (BLU):

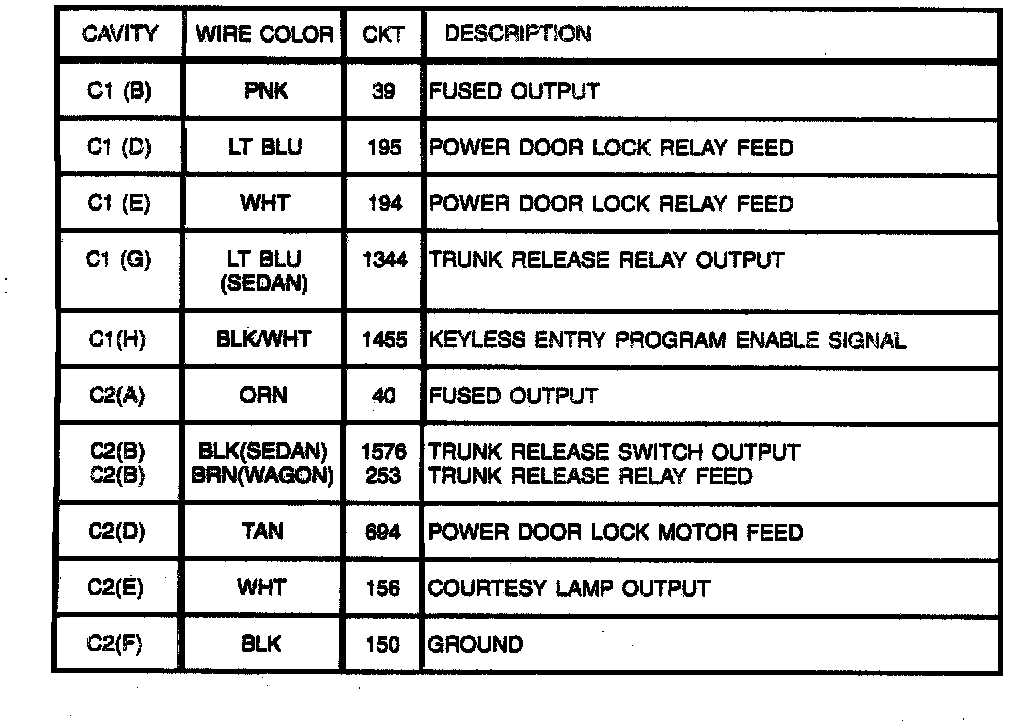

Remote Keyless Entry Module (RKE) Connectors (Description):

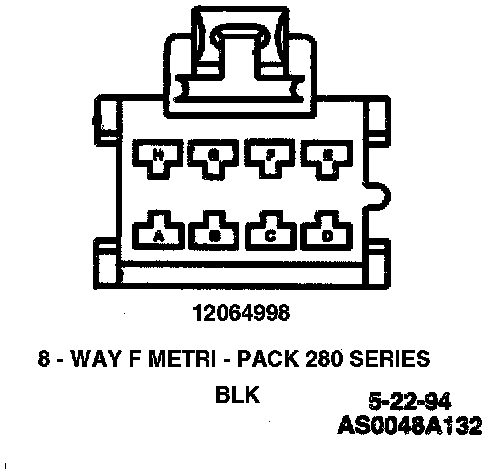

8-way F Metri-pack 280 Series (BLK):
