Home >> Buick >> 1995 >> Century L4-2.2L VIN 4 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Window Switch >> Sedan >> Master Switch Assembly >> C2

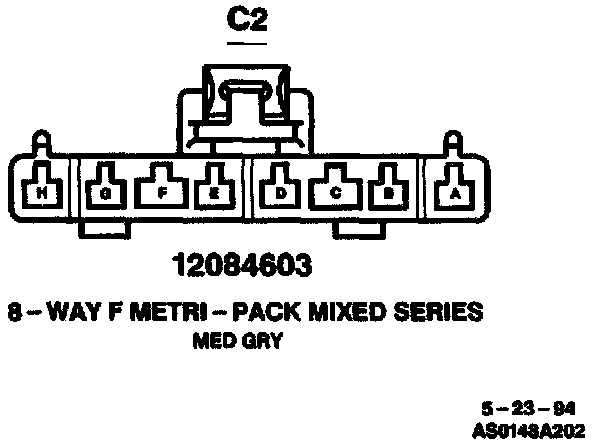

C2

8-Way F Metri-pack Mixed Series MED GRY:

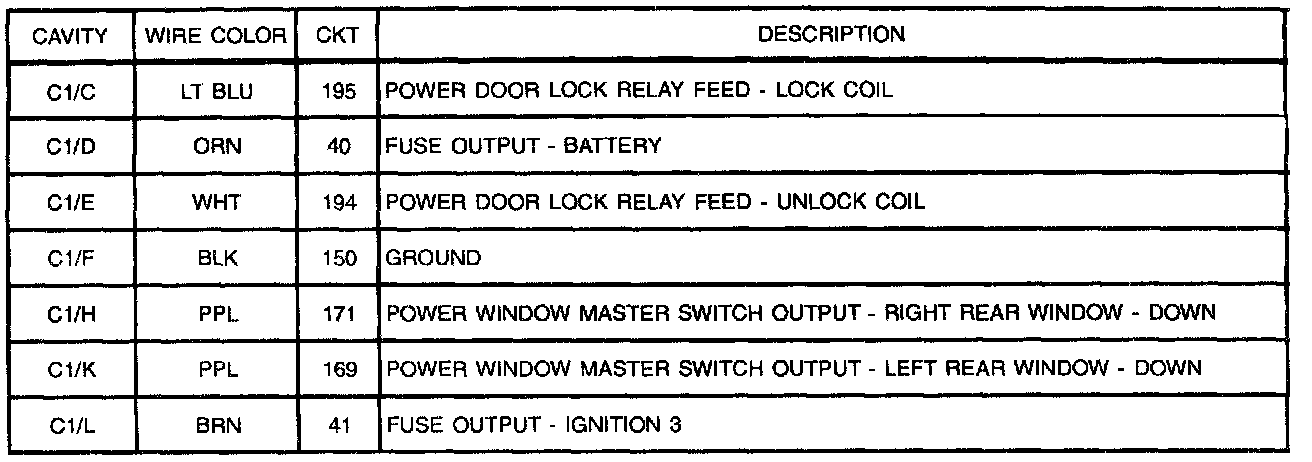

Master Switch Assembly:

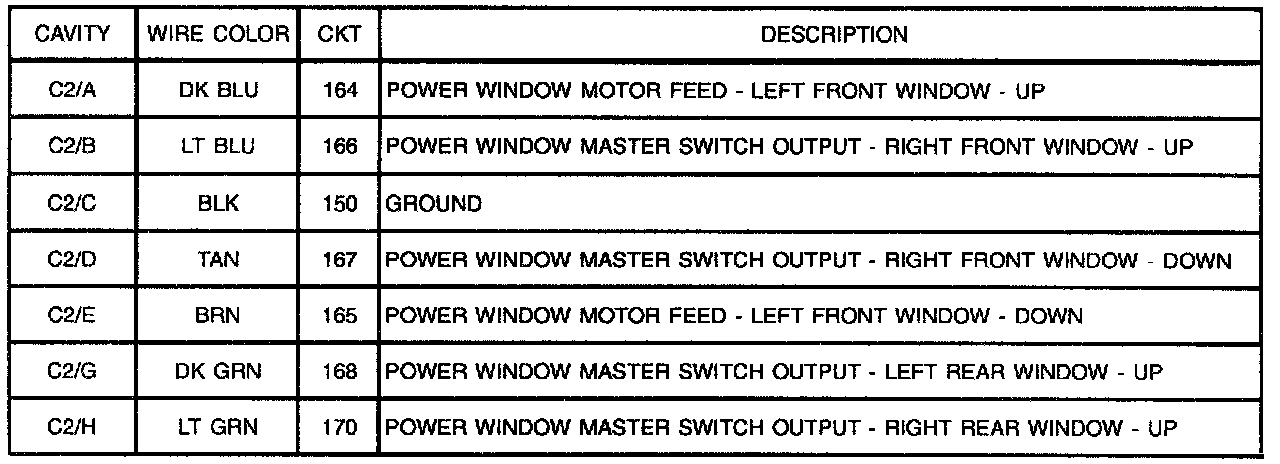

Master Switch Assembly:
