Pin Assignment - Data Link Connector (DLC)
Pin Assignment - Data Link Connector (DLC)

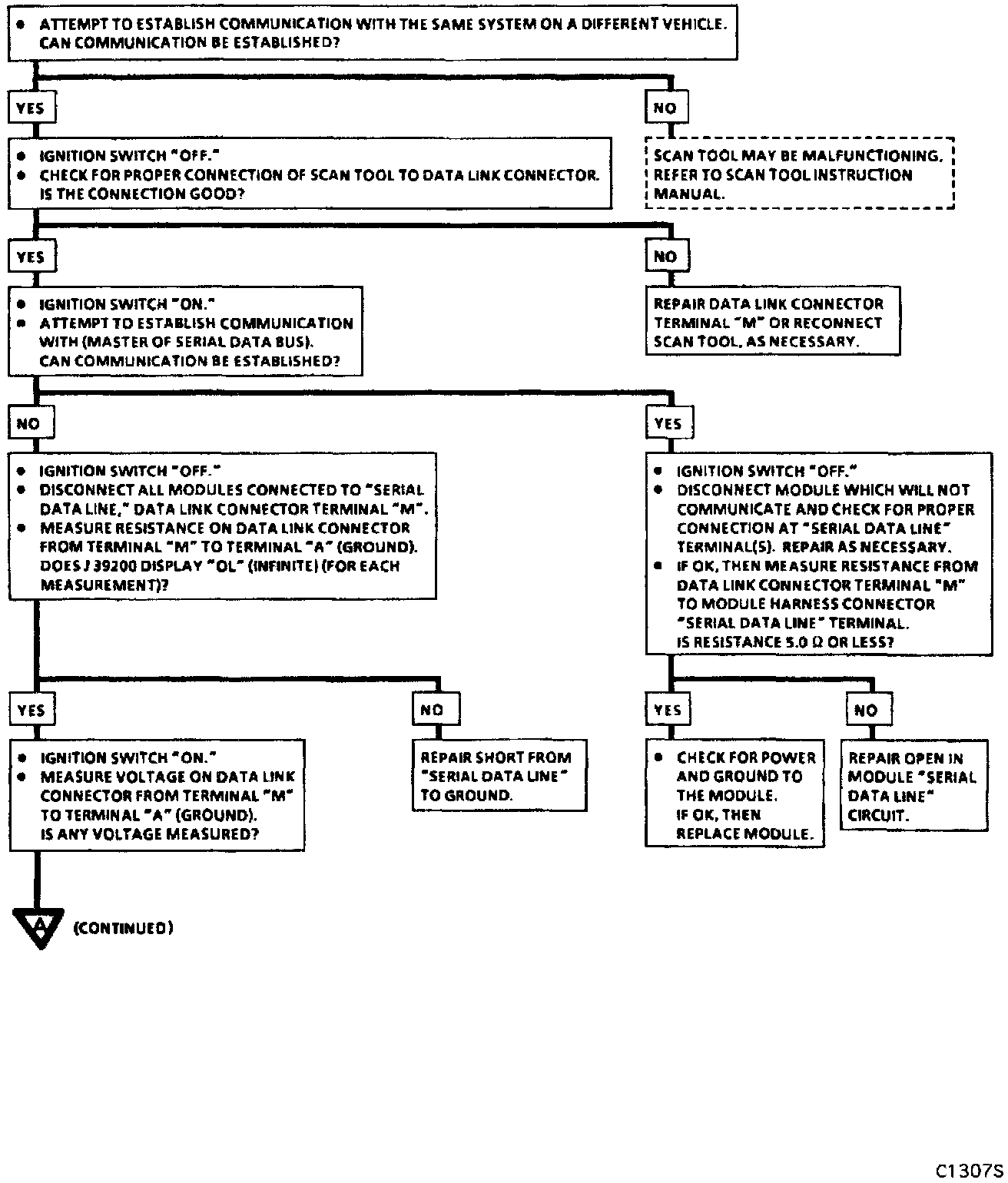

Chart Part 1 Of 2:

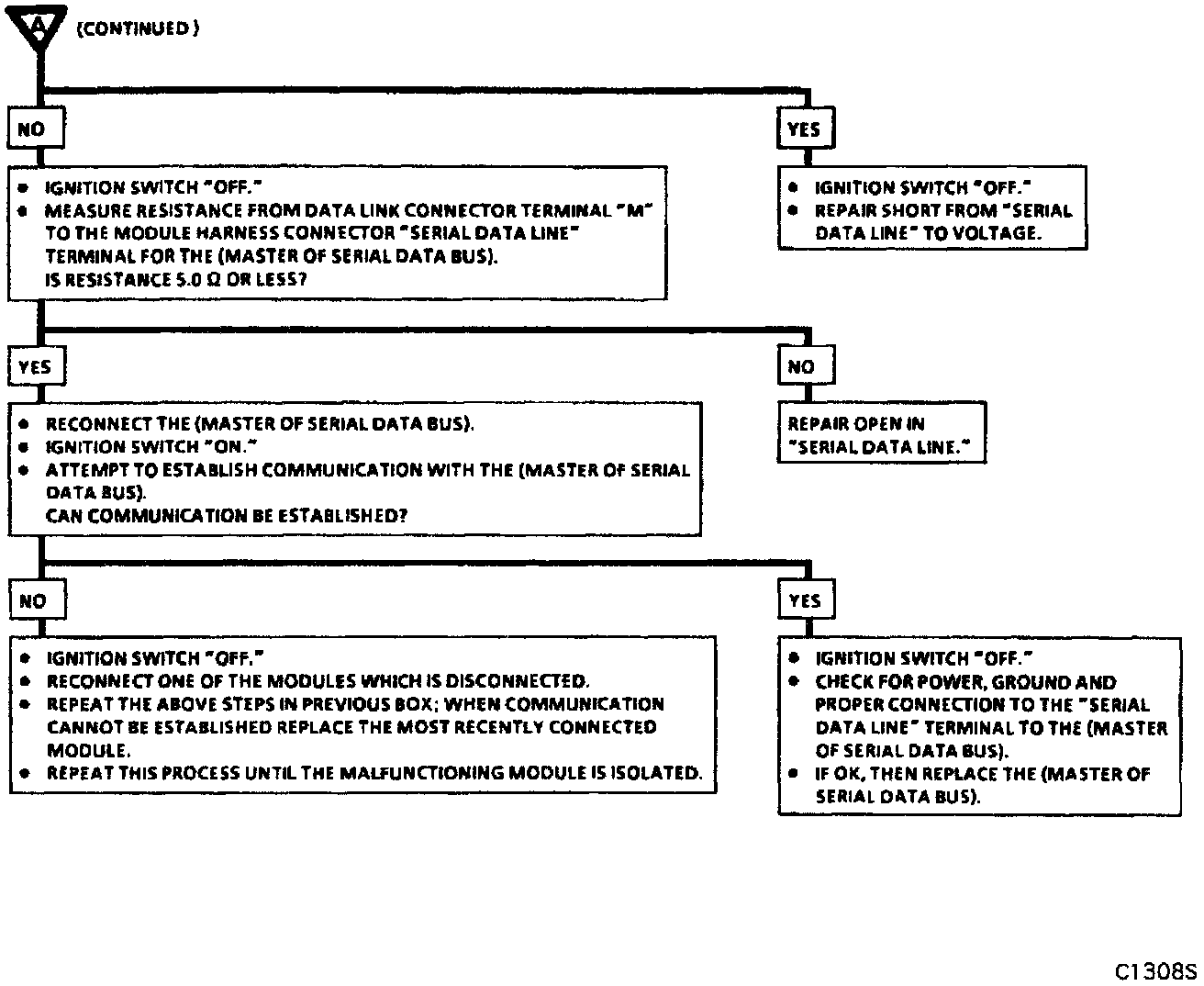

Chart Part 2 Of 2:
