Home >> Buick >> 1995 >> Century L4-2.2L VIN 4 >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinout Values and Diagnostic Parameters >> Connector BD

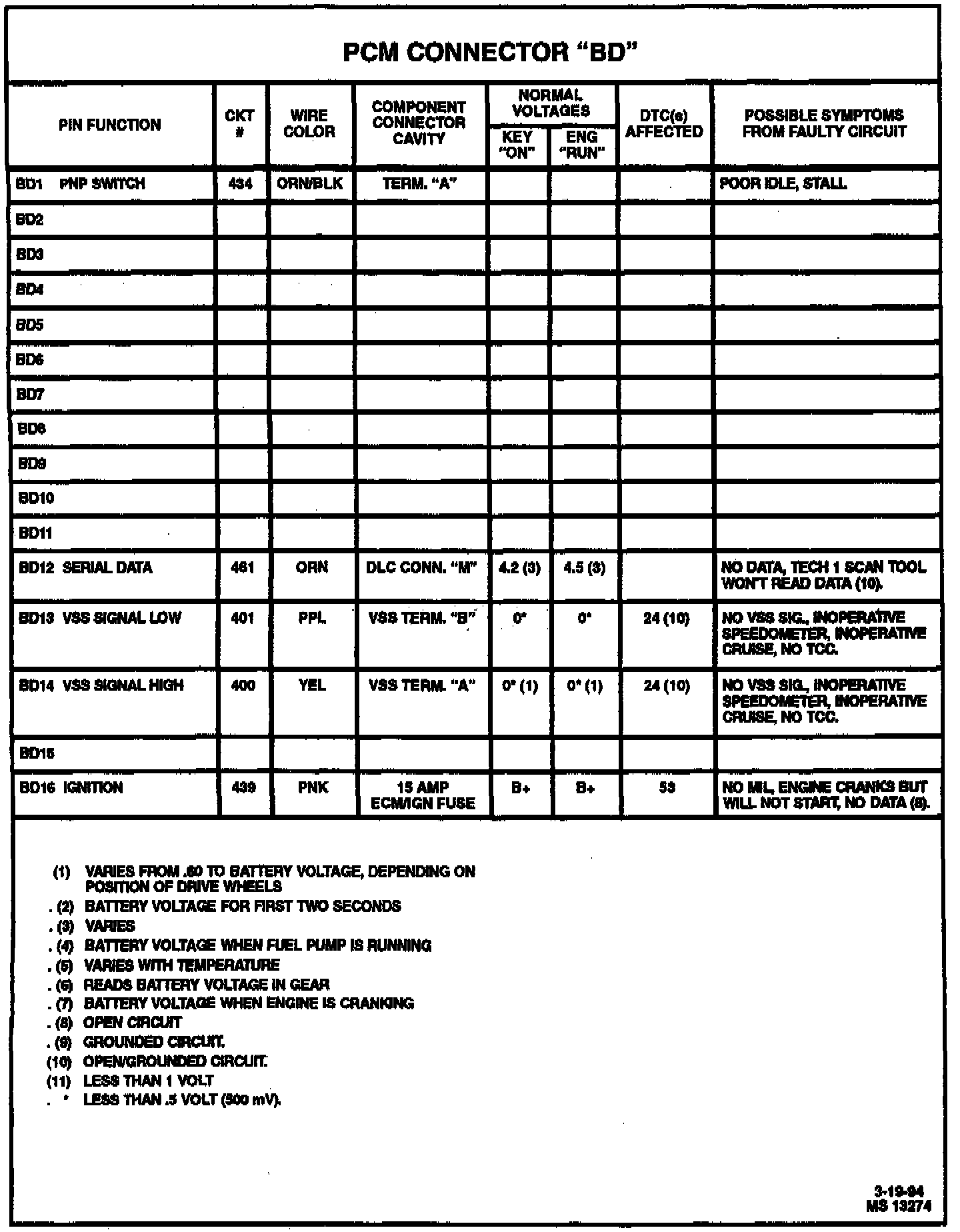

Connector BD

PCM Symptom Chart (Blue D1- D16):
