Operation CHARM: Car repair manuals for everyone.
Home >> Buick >> 1995 >> Century L4-2.2L VIN 4 >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinout Values and Diagnostic Parameters >> Connector PA

Connector PA

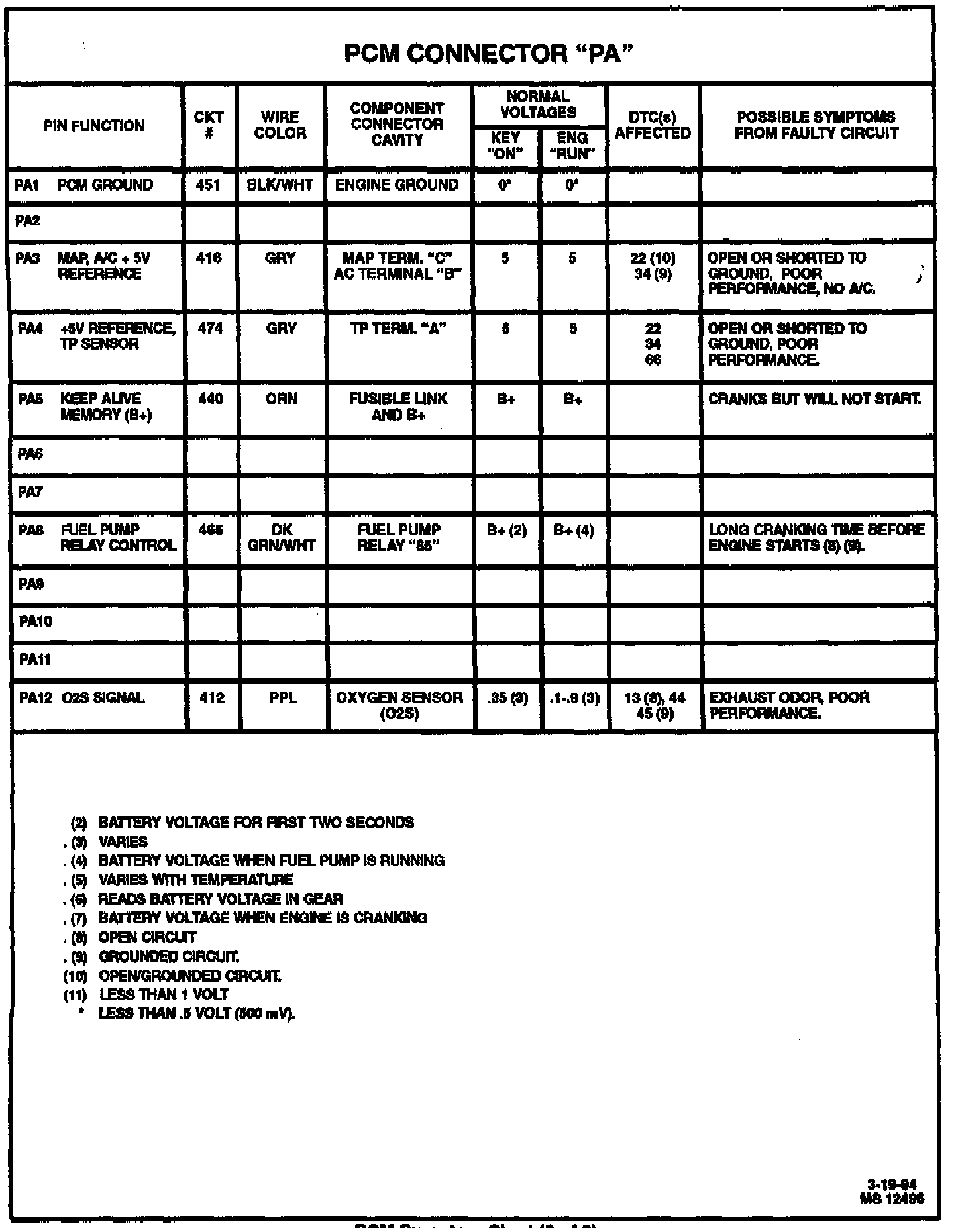

PCM Symptom Chart (Pink A1- A12):
