Fuel Controls

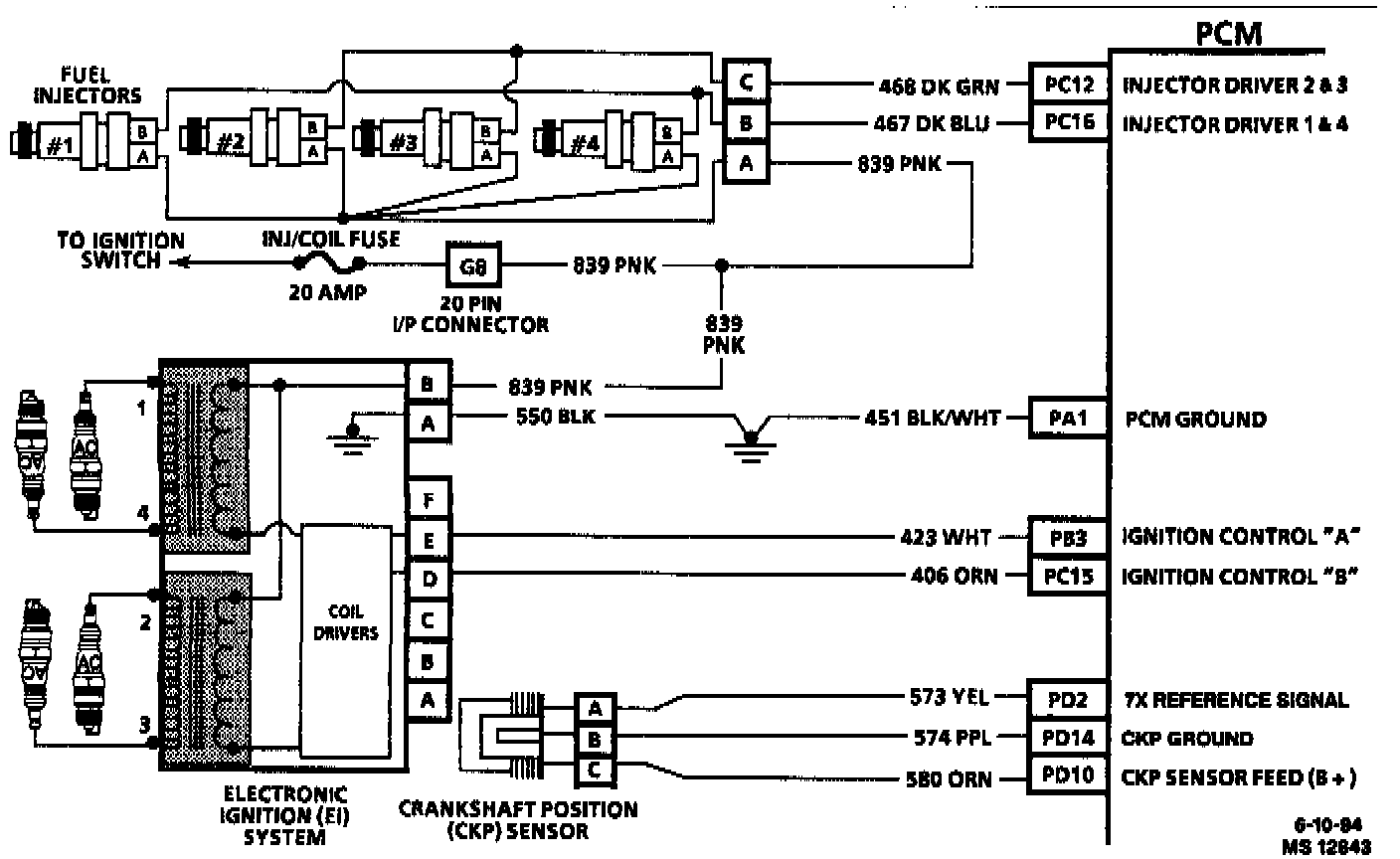

Fuel Injector & Ignition System Circuits:

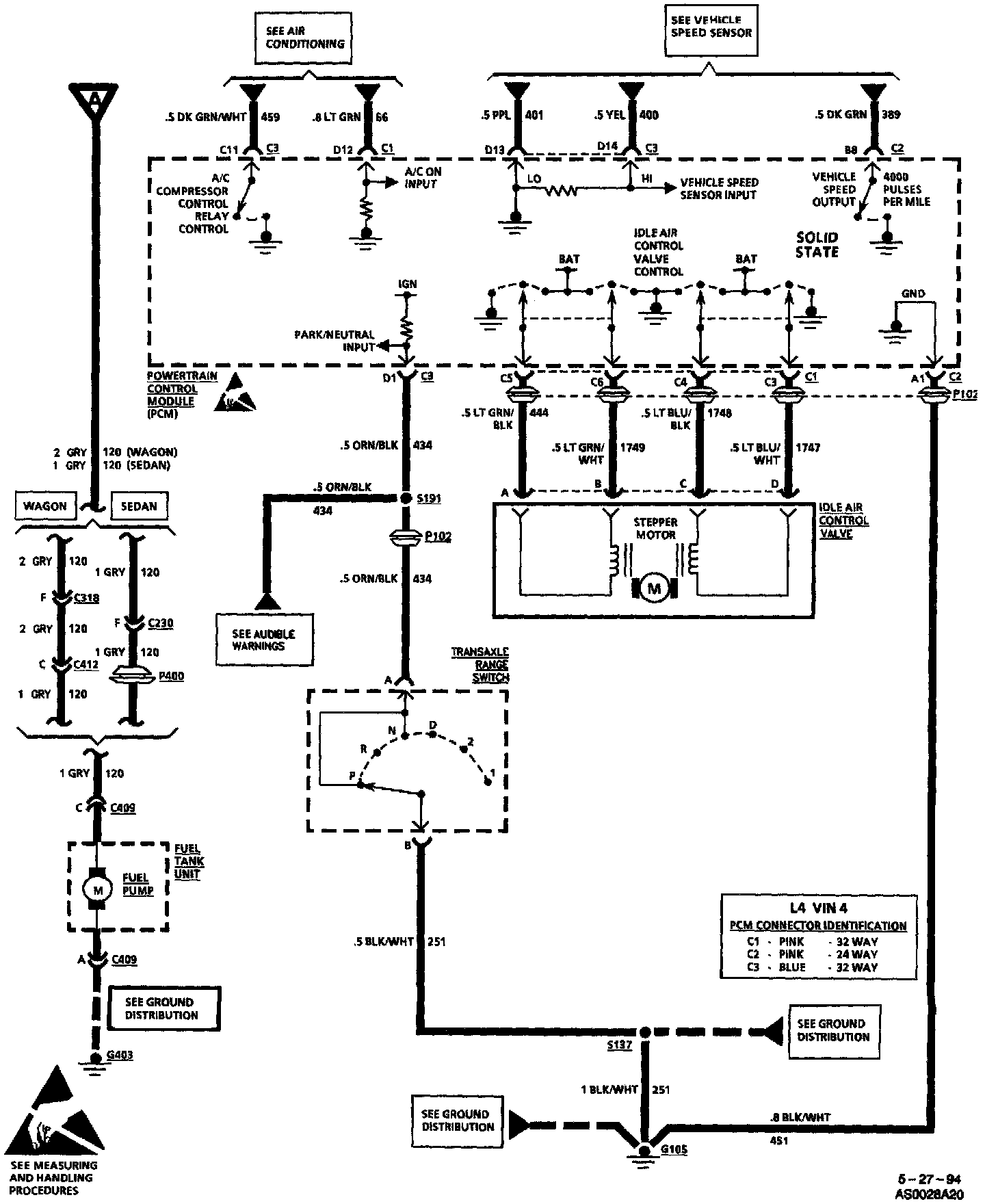

Power, ground And Fuel Control:

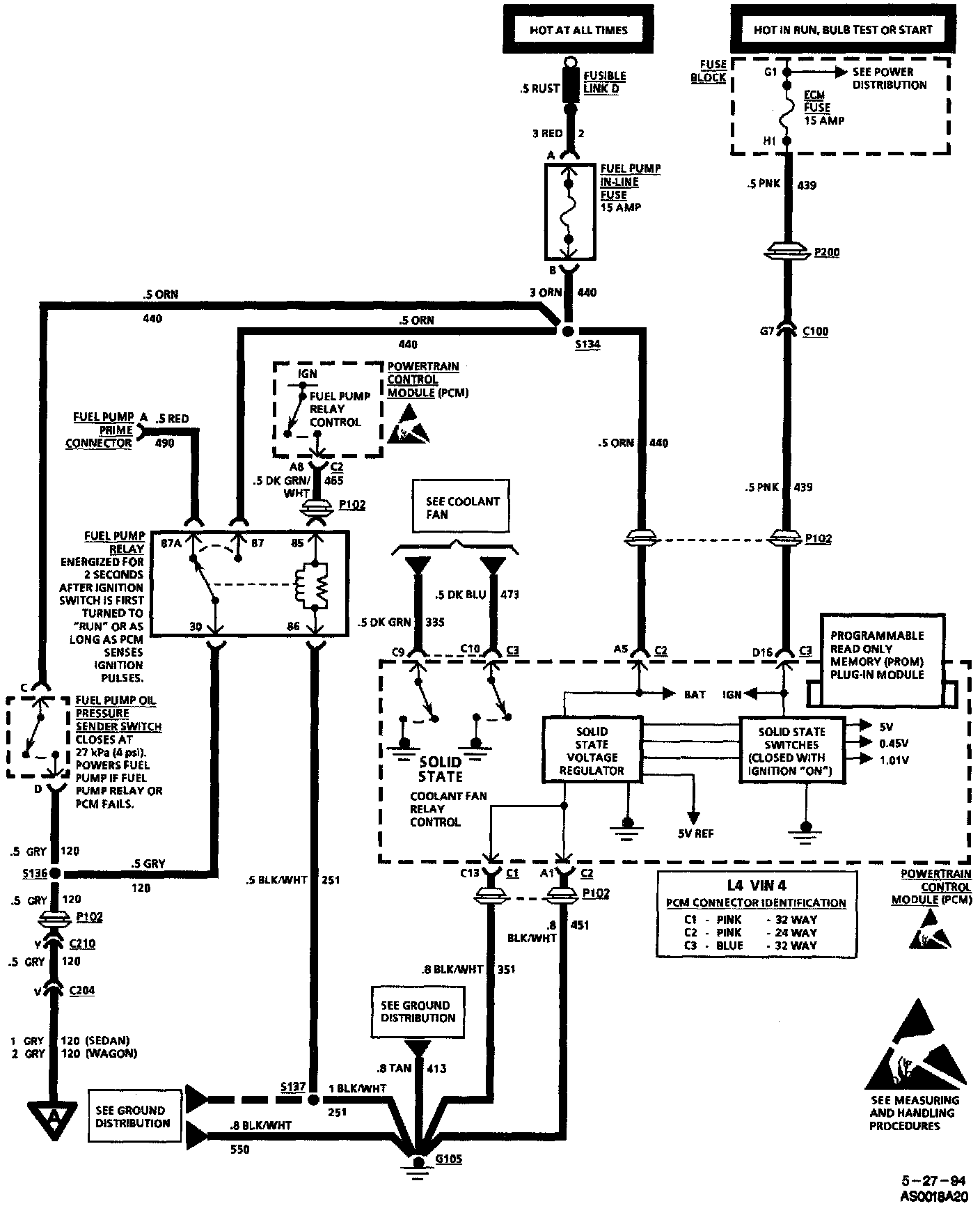

Power, ground And Fuel Control:
