Accessory Signal: Service and Repair

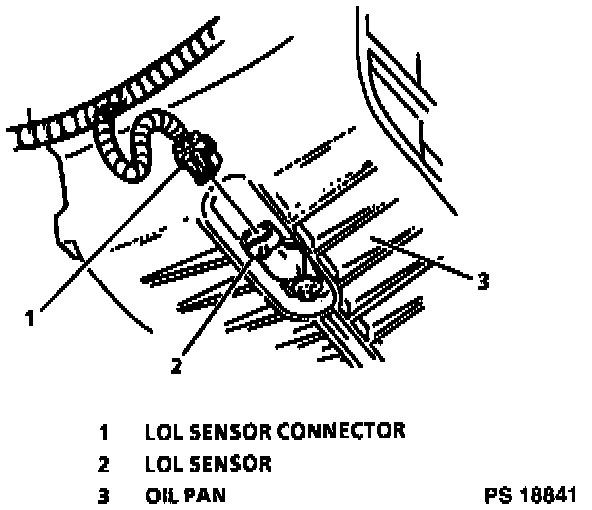

Engine Oil Level:

REMOVE
1. Drain engine oil.
2. Sensor electrical connector.
3. Bolt / Screw.
4. Oil level sensor / switch.

INSTALL
1. Sensor into oil pan.
2. Bolt / Screw and fasten securely.
3. Sensor electrical connector.
4. Oil drain plug.
5. Fill engine with the proper quantity of clean oil.
6. Run engine and check for leaks.
