Buick
>>
1995
>>
Regal V6-231 3.8L VIN L SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Engine Control Module
>>
Blue Connector "C"
Blue Connector "C"

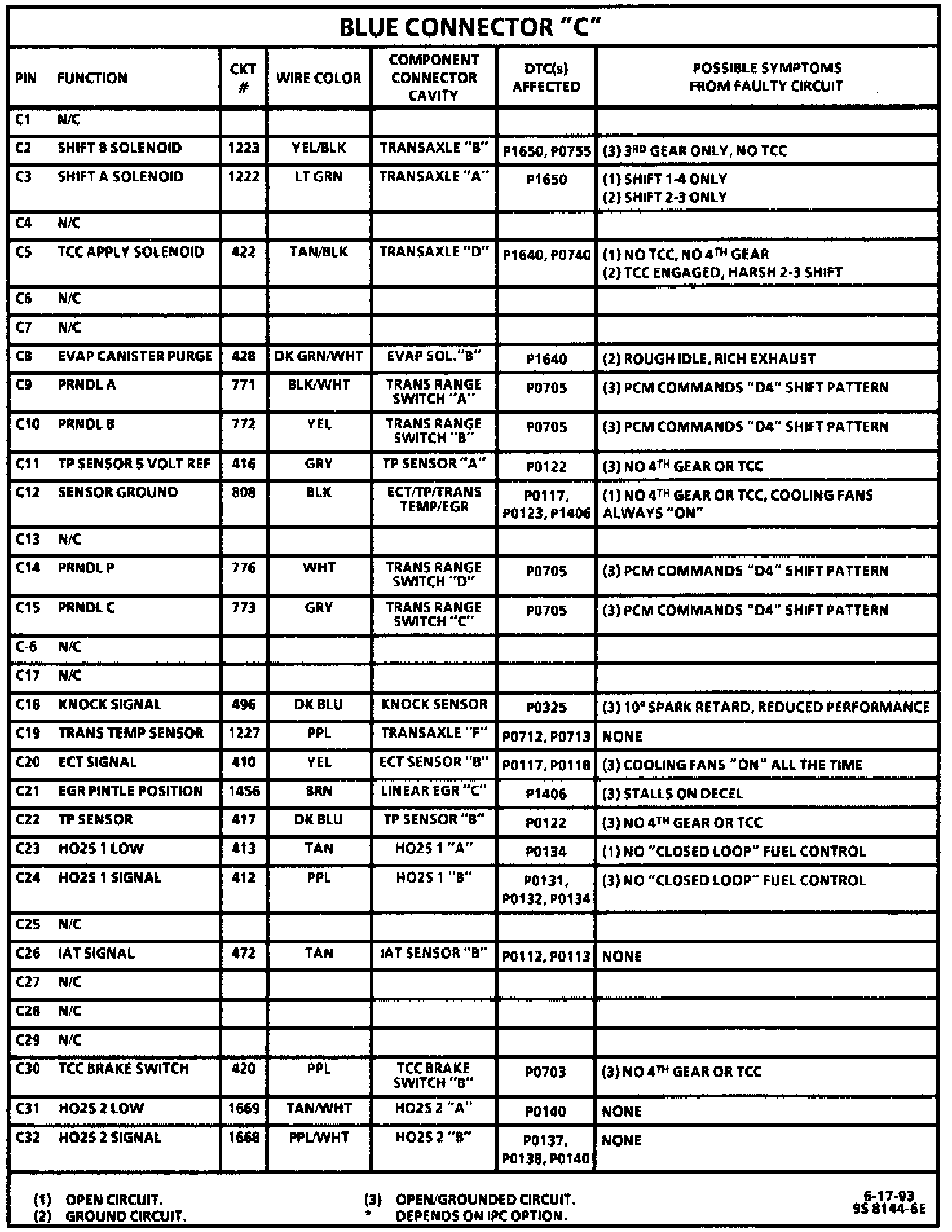

PCM Connector Circuit Failure/Symptom Chart (Blue Connector "C"):
