C1, C2 & C3
>>
Pinout Description
Pinout Description

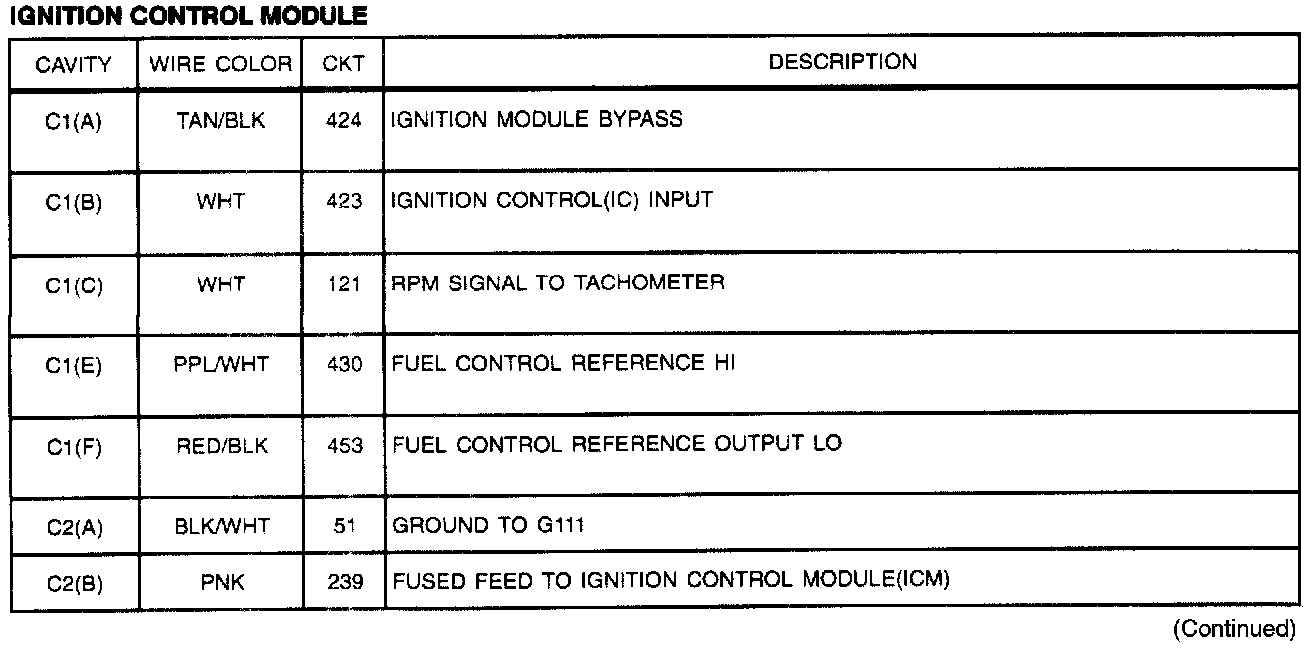

C1, C2 & C3: Ignition Control Module (Part 1 Of 2):

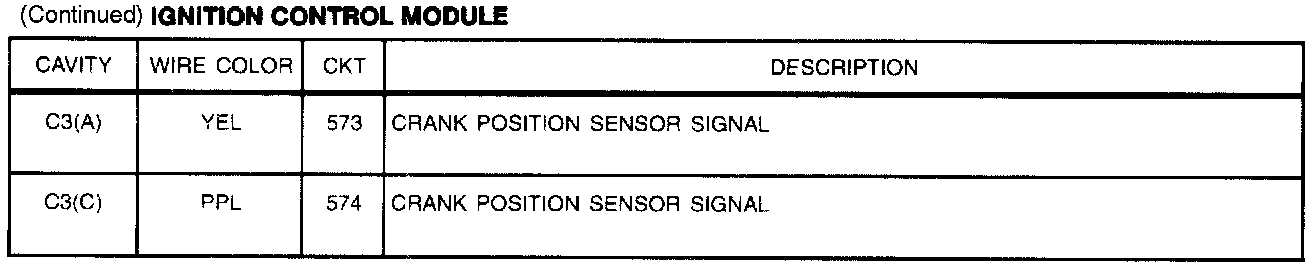

C1, C2 & C3: Ignition Control Module (Part 2 Of 2):
