Knock Sensor: Service and Repair

Knock Sensor:

REMOVE OR DISCONNECT
1. Knock sensor wiring harness connector from knock sensor.
2. Knock sensor from engine block.

INSTALL OR CONNECT

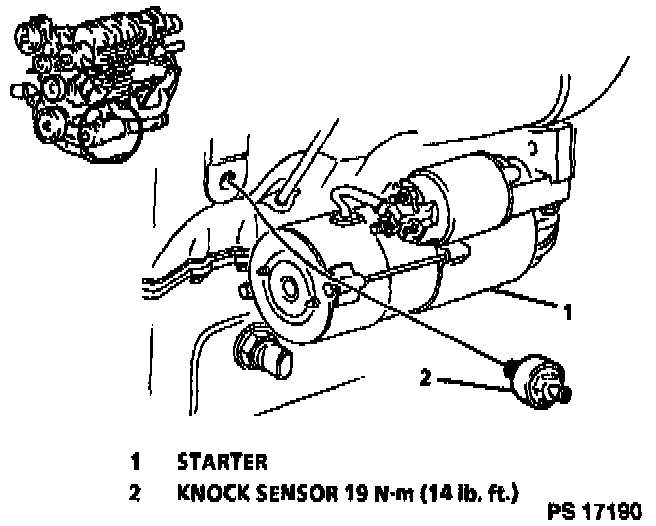

1. Knock sensor into engine block. Be sure threads are clean. Tighten to 19 Nm (14 ft lb).

CAUTION: Overtorquing can damage the knock sensor.

2. Knock sensor wiring harness connector to the knock sensor.
