Home >> Buick >> 1995 >> Regal V6-231 3.8L VIN L SFI >> Repair and Diagnosis >> Specifications >> Electrical Specifications >> Engine Control Module >> PCM Connector "A" (Black)

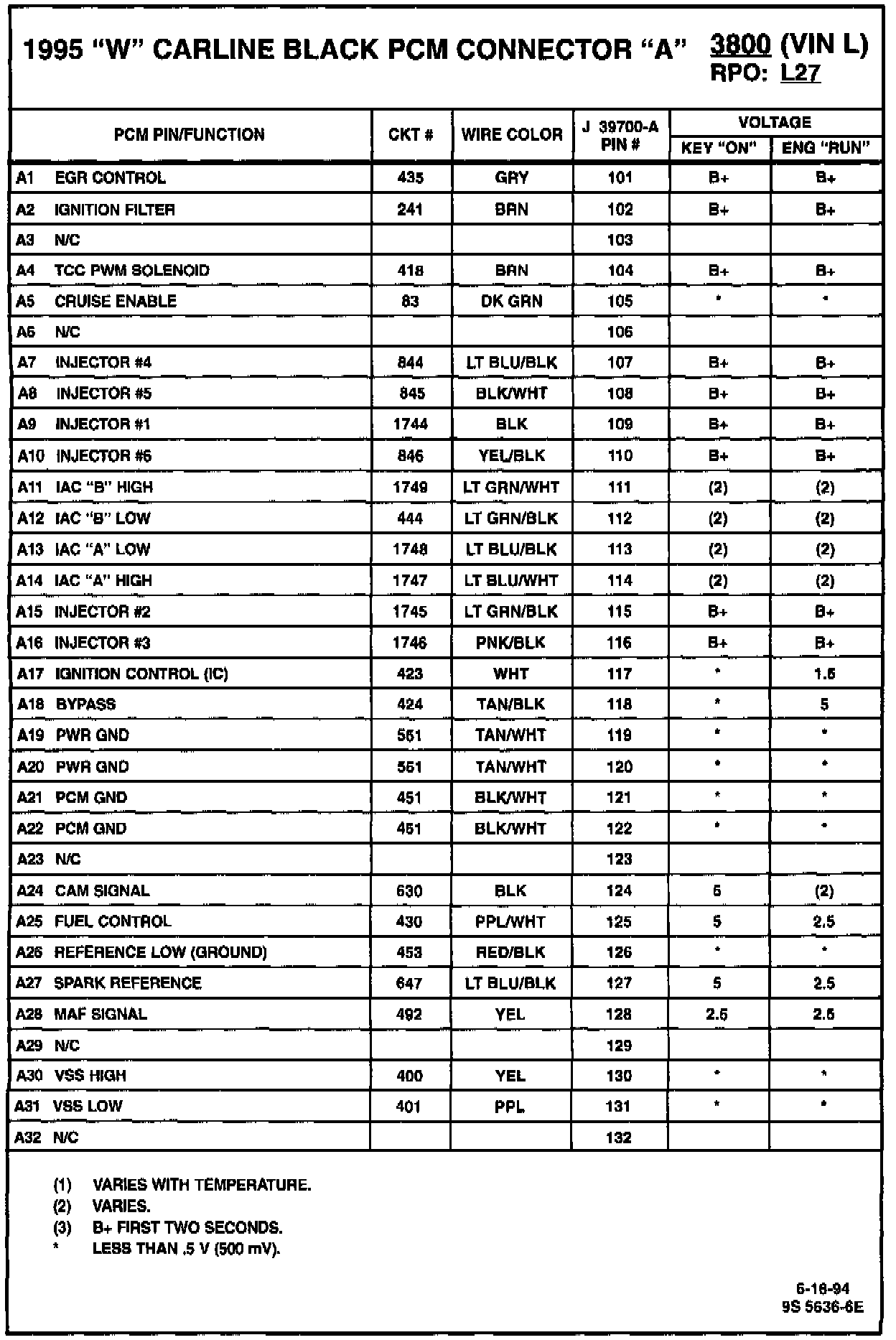

PCM Connector "A" (Black)

PCM Connector Details:
