Home
>>
Buick
>>
1995
>>
Riviera V6-3.8L SC VIN 1
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Impact Sensor
Impact Sensor

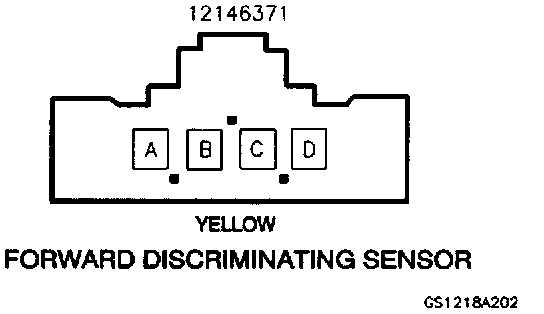

Forward Discriminating Sensor:

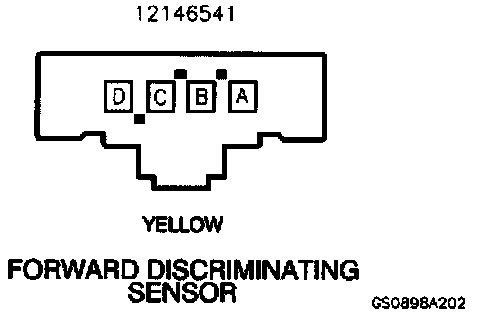

Forward Discriminating Sensor:

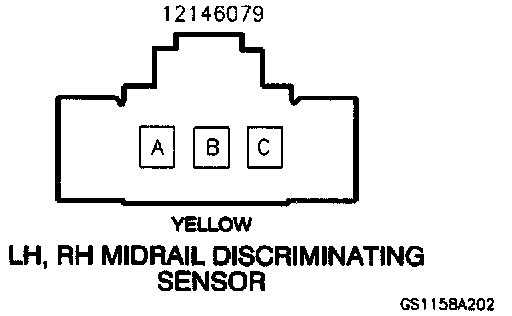

LH, RH Midrail Discriminating Sensor:

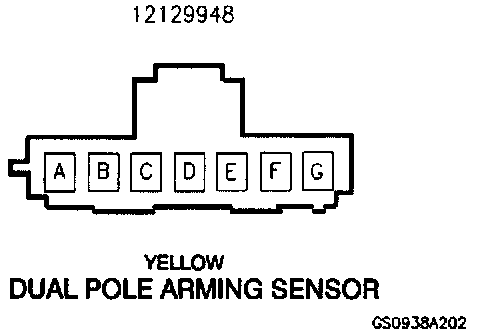

Dual Pole Arming Sensor:
