Audible Warning Device Control Module
>>
Diagrams
>>
Connector Views
Connector Views

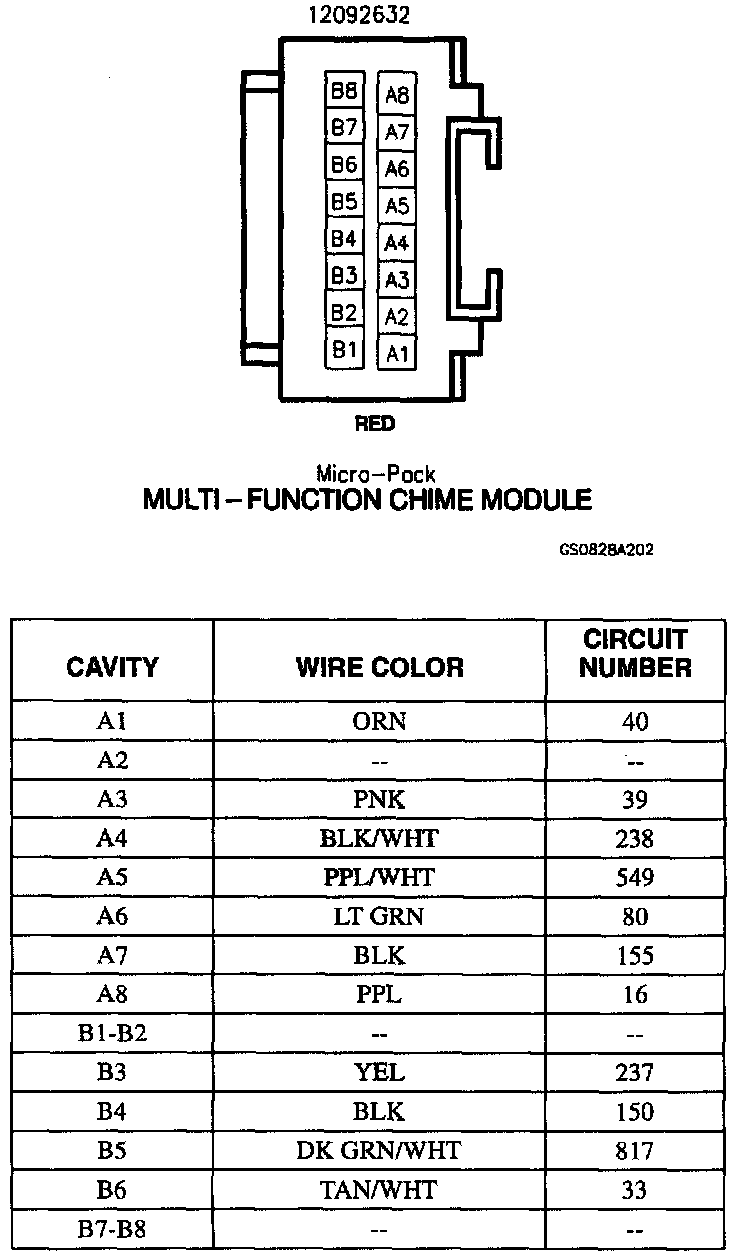

Multi_Function Chime Module:
