Home >> Buick >> 1997 >> LeSabre V6-3.8L VIN K >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Assembly, HVAC >> HVAC Controller CONN

HVAC Controller CONN

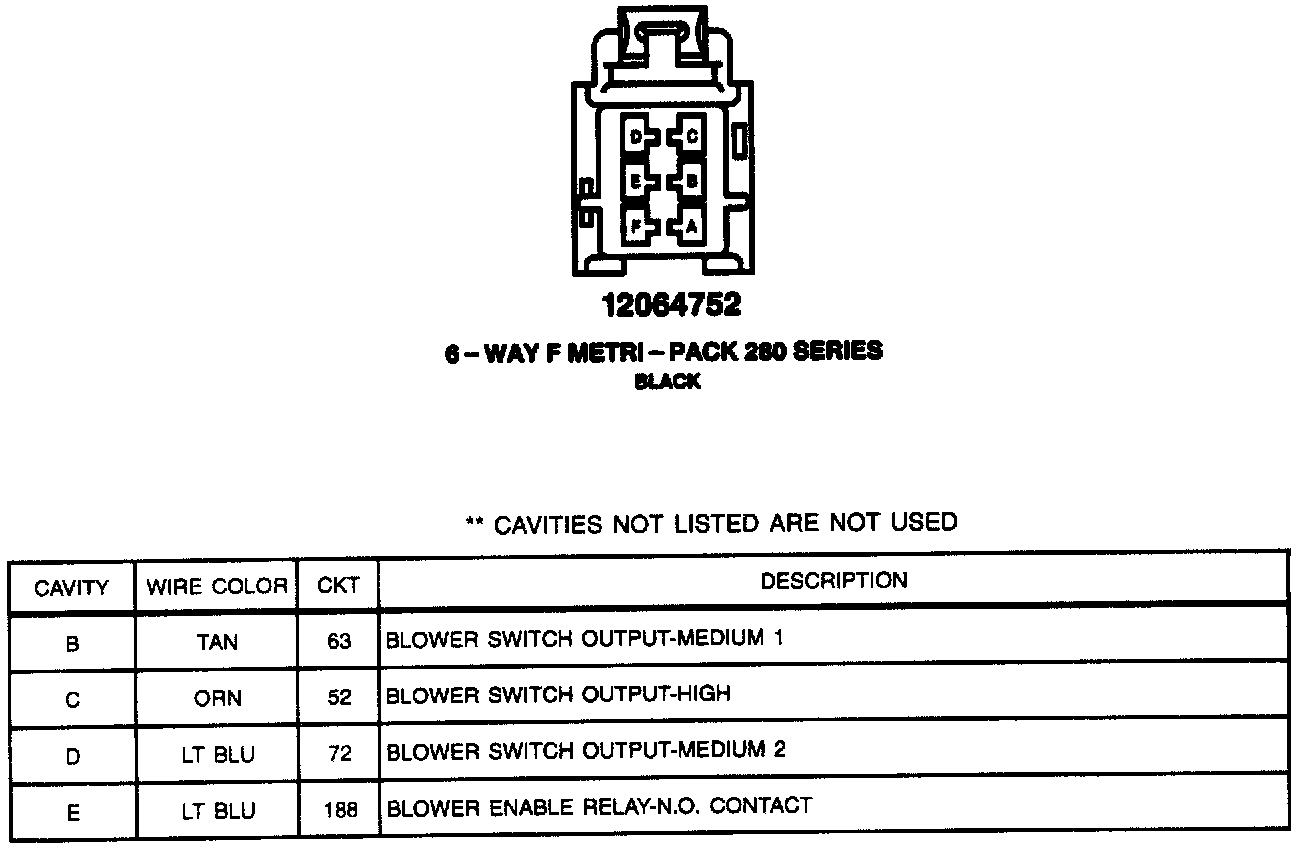

HVAC Controller (With C67 CONN C1):
