Rear Wheel Alignment

Important: Make left and right rear toe adjustments separately, per wheel, using the following procedure.

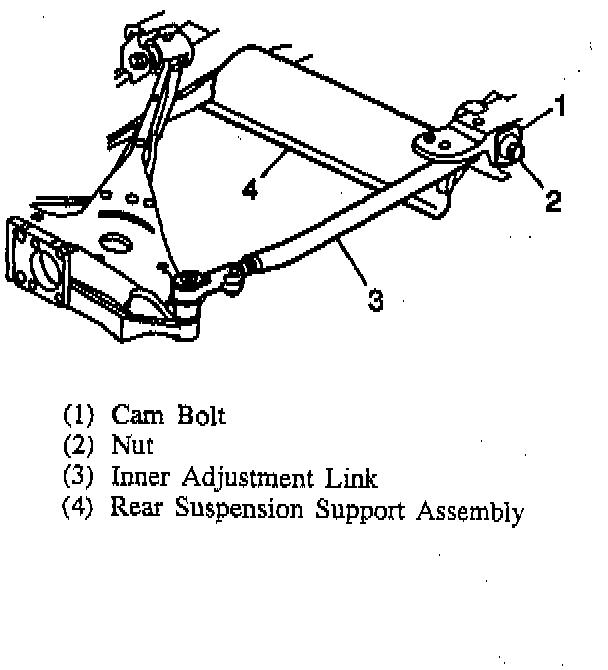

1. Loosen the inner adjustment link cam nut.
2. To adjust toe, rotate the cam bolt using an 18 mm socket. Refer to "SPECIFICATIONS."
^ Tighten cam nut to 75 Nm (55 ft. lbs.).
