Operation CHARM
: Car repair manuals for everyone.
Home
>>
Buick
>>
1997
>>
Riviera V6-3.8L SC VIN 1
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Fuse Block
>>
Relay Block #1
Relay Block #1

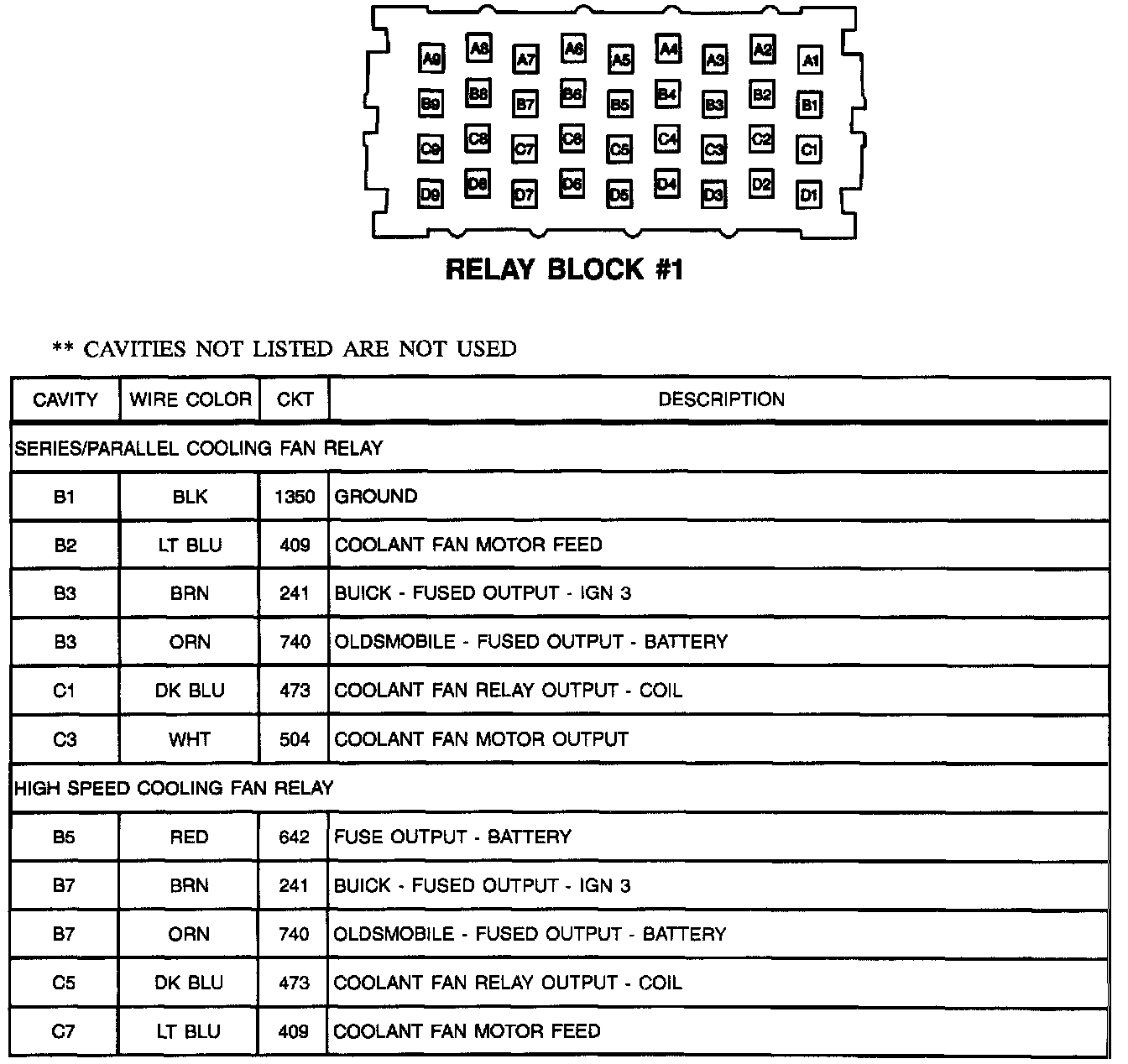

Relay Center Details: Relay Block #1:

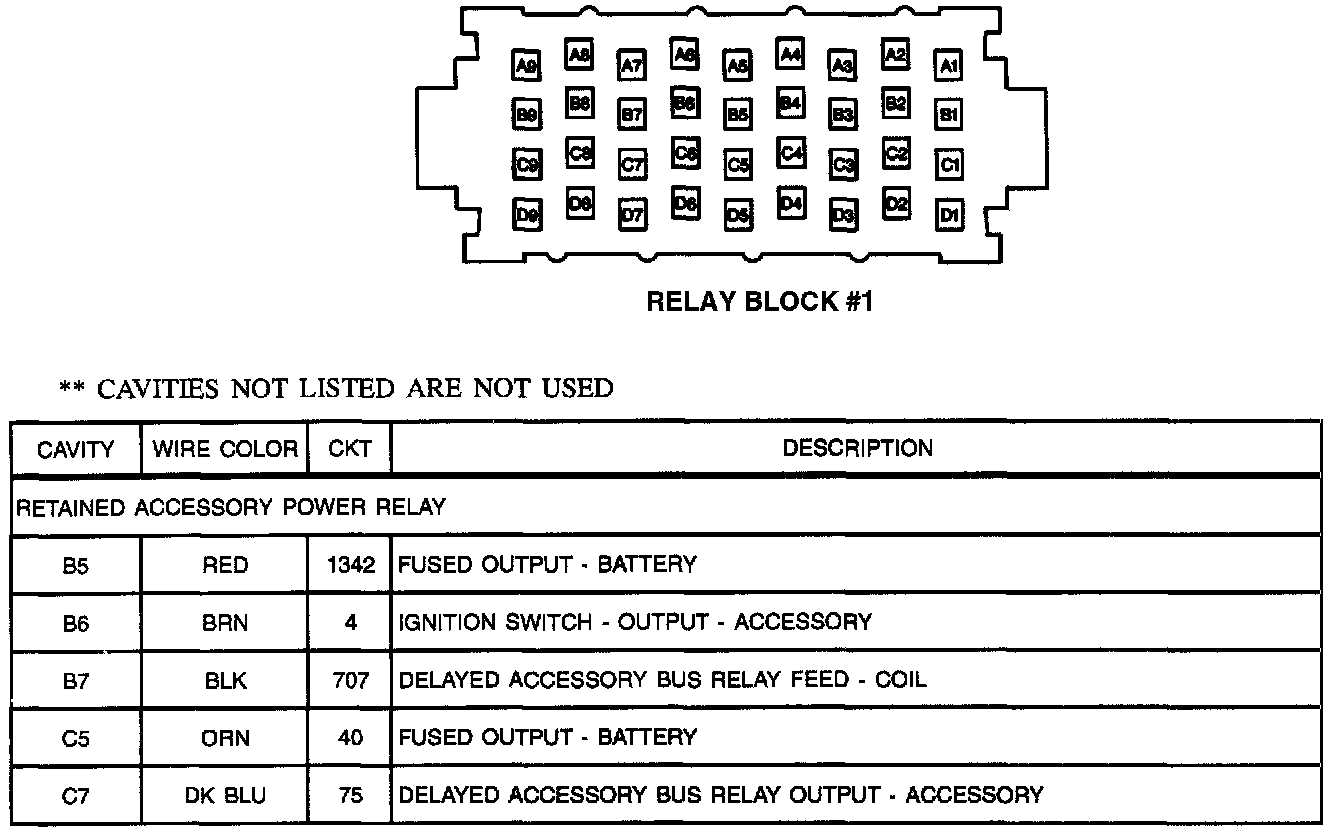

Relay Center Details: Relay Block #1:
