Connector Views
>>
Fuse Block
>>
Relay Block #2
Relay Block #2

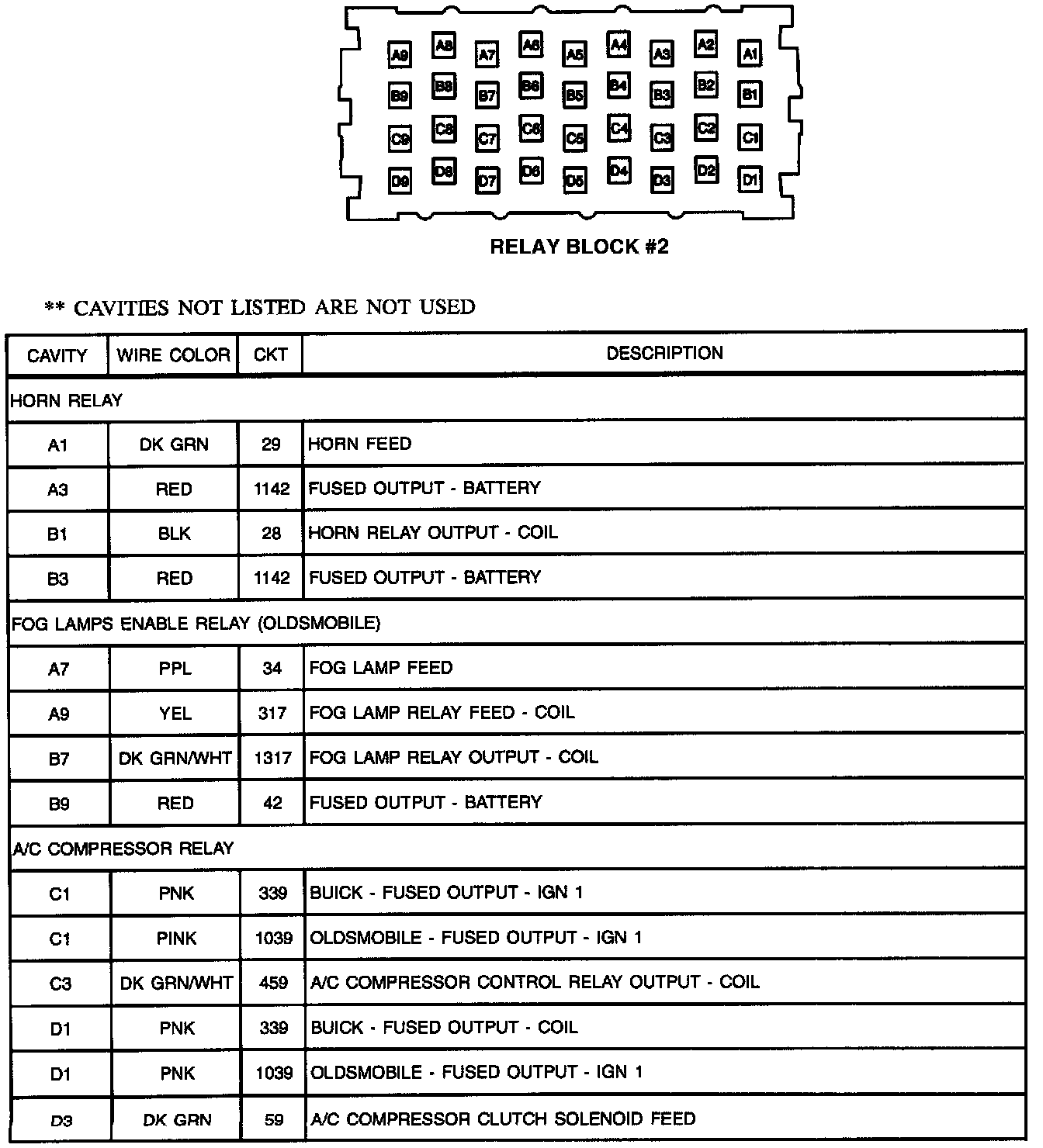

Relay Center Details: Relay Block #2:

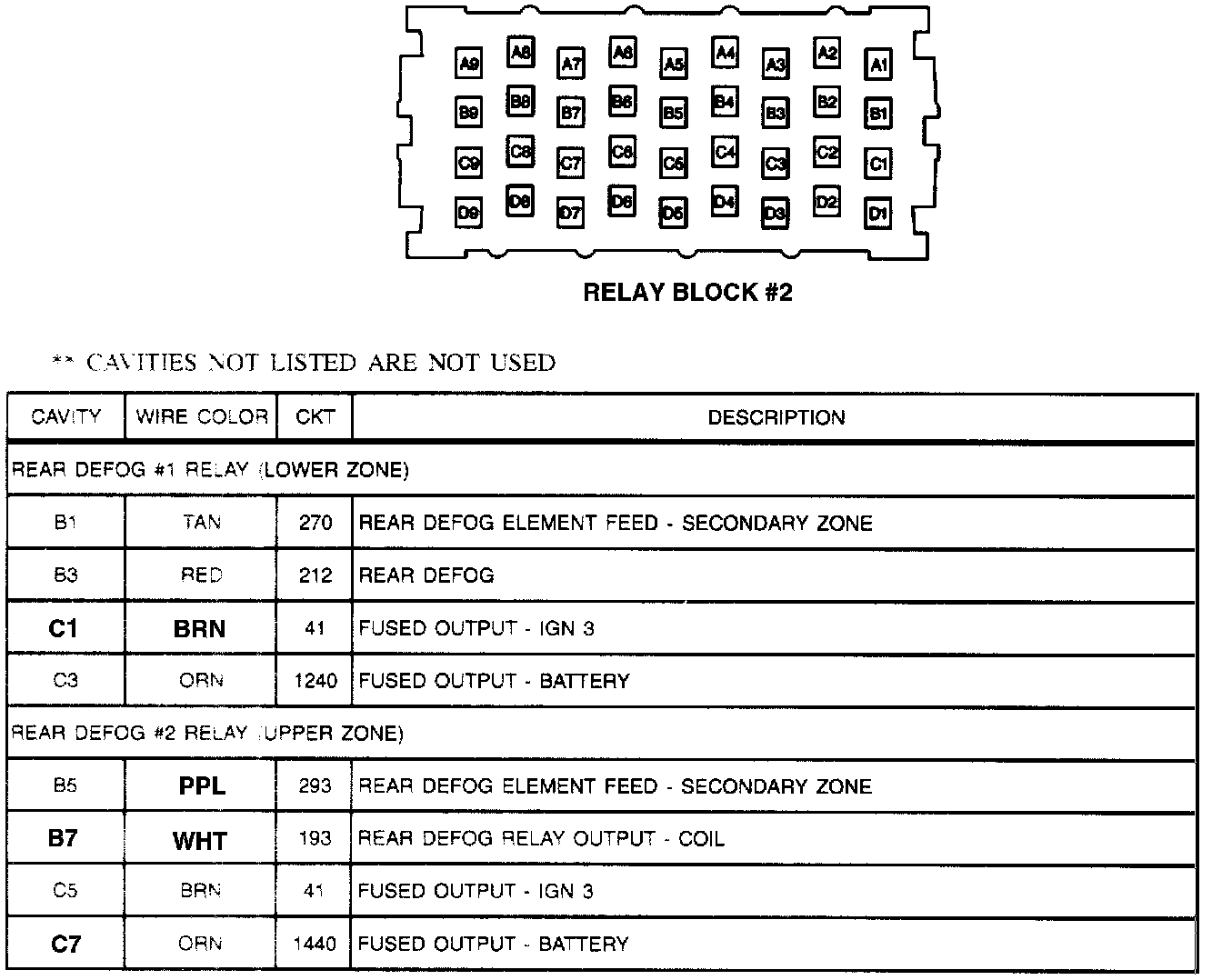

Relay Center Details: Relay Block #2:
