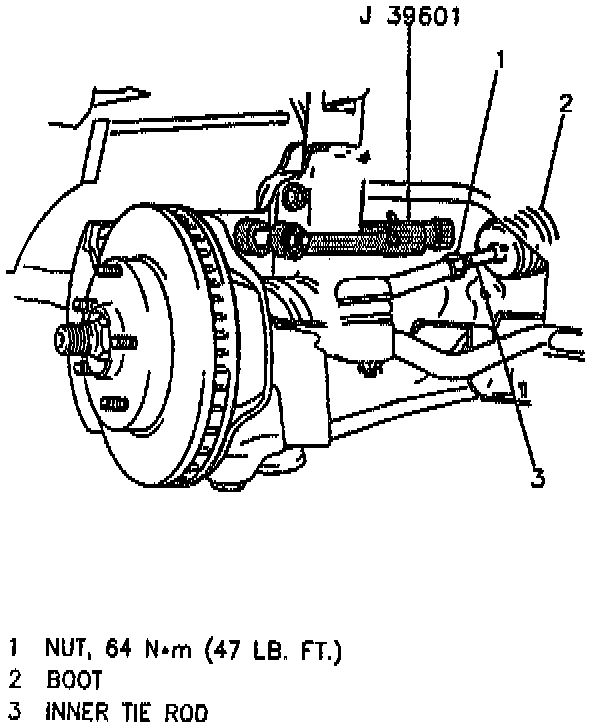

Front Toe Adjustment

1. Loosen the lock nuts on the tie rod.

CAUTION: Care must be taken that the boots are not twisted when rotating the inner tie rod, or damage to the boots may result.

2. Rotate the inner tie rod to adjust toe.
^ Tighten lock nuts to 64 Nm (47 ft. lbs.).
3. Adjust the boots as needed to prevent damage.
