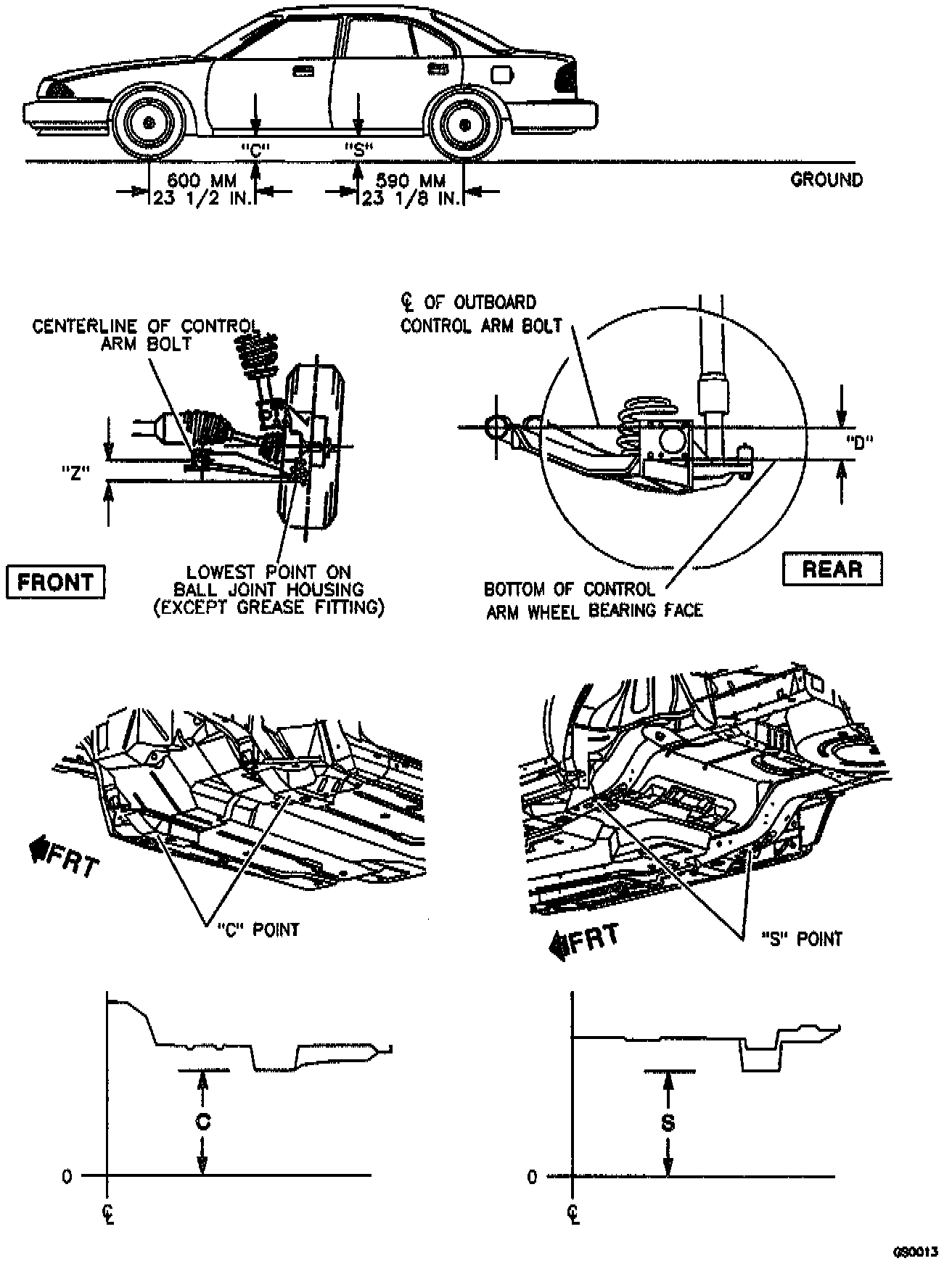

Vehicle Ride (Trim) Height Specifications

^ D - 76 - 96 mm (3 - 3 3/4 in.)
^ Z - 30 - 50 mm (1 3/16 - 2 in.)
^ C - 164 - 184 mm (6 7/16 - 7 1/4 in.)
^ S - 213 - 233 mm (8 3/8 - 9 3/16 in.)

Maximum variation side-to-side and front-to-rear is 19 mm (3/4 inch).
