Battery Cable: Service and Repair

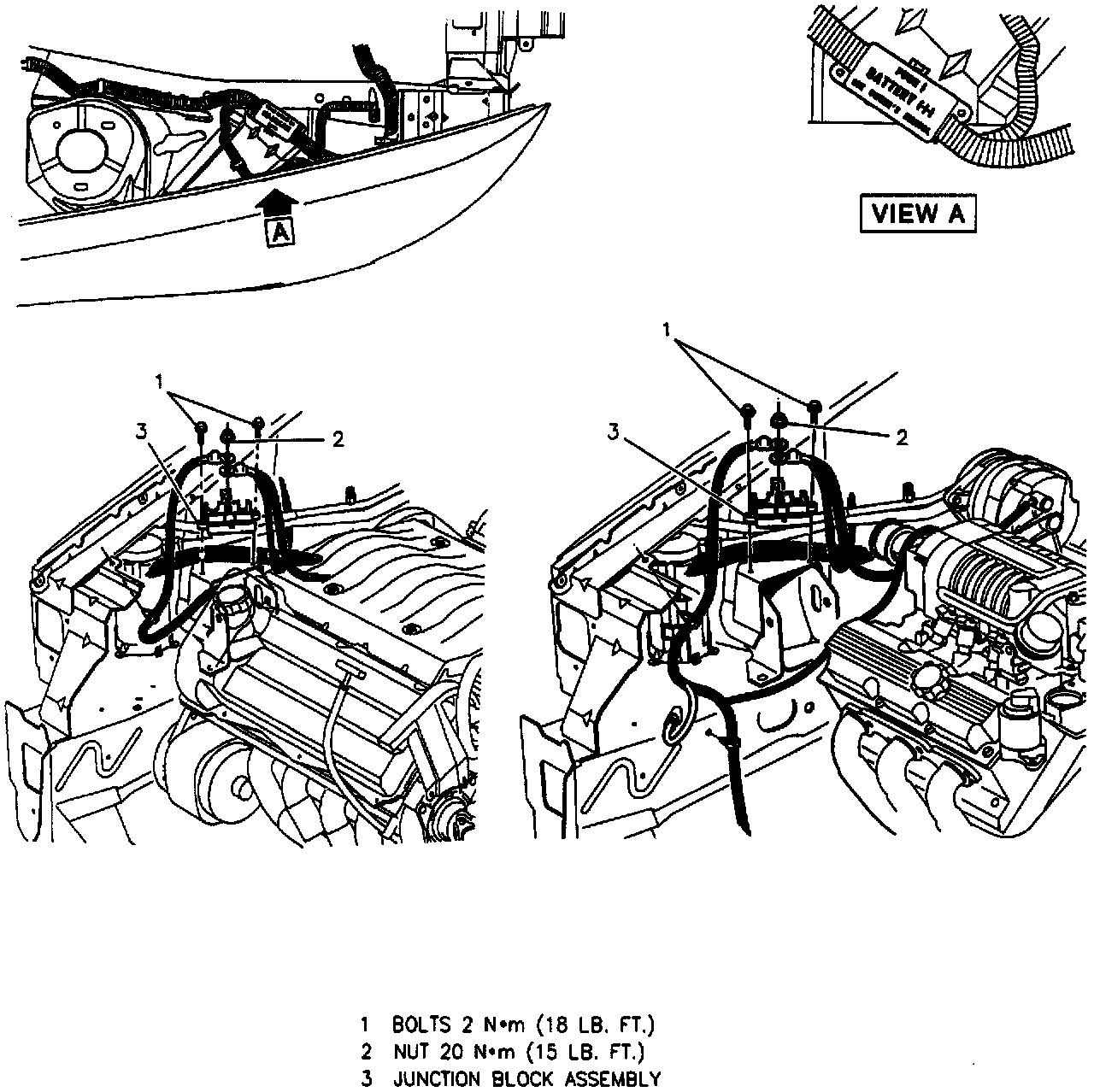

Junction Block Assembly:

Additional ground straps are used to connect the body frame to the engine and transaxle. Always connect all ground straps to make a good ground path to the battery from all electrical components.
