Home >> Buick >> 1998 >> LeSabre V6-3.8L VIN K >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Assembly, HVAC >> Heater & A/C Control Assembly >> With C67 >> C1

C1

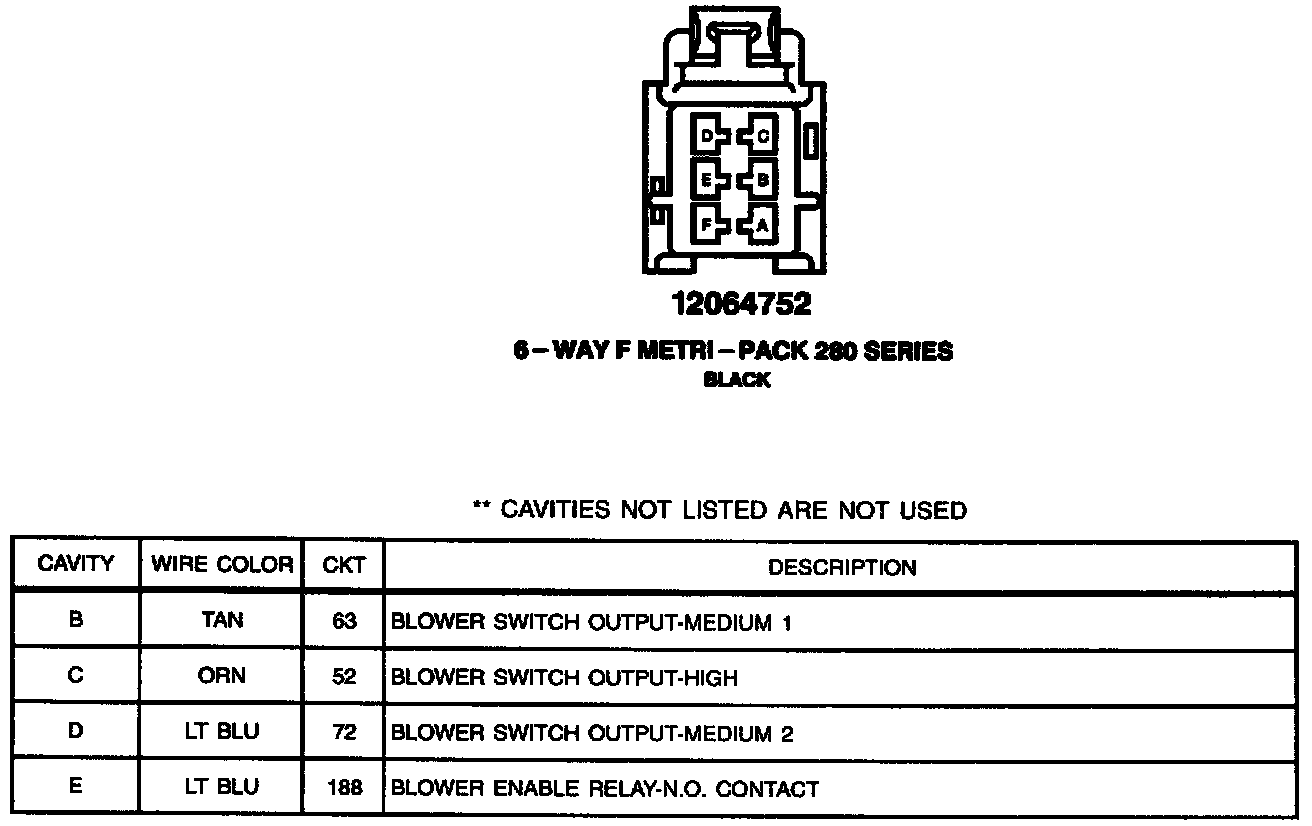

Heater & A/C Control Assembly: C1 - With C67:
