Control Assembly: Service and Repair

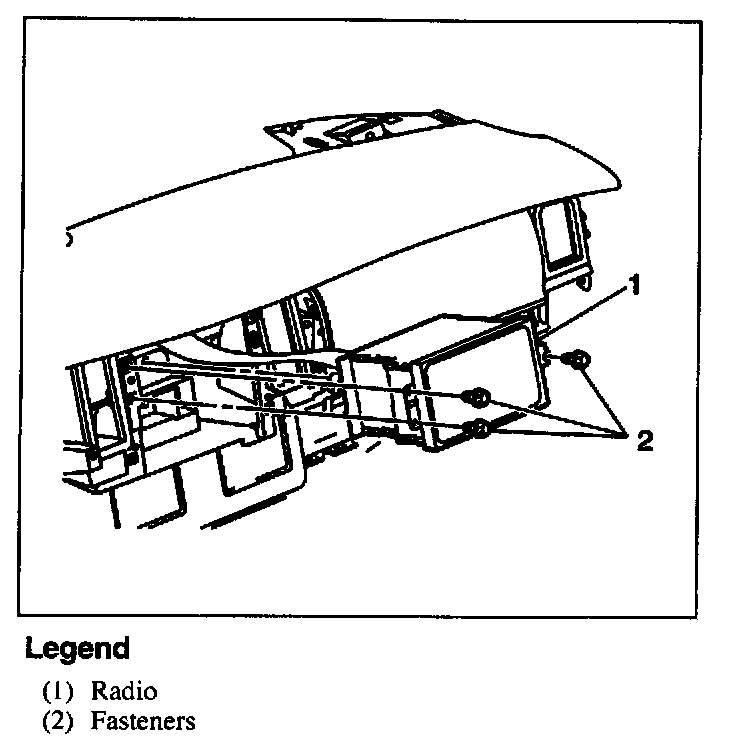

Radio Removal:

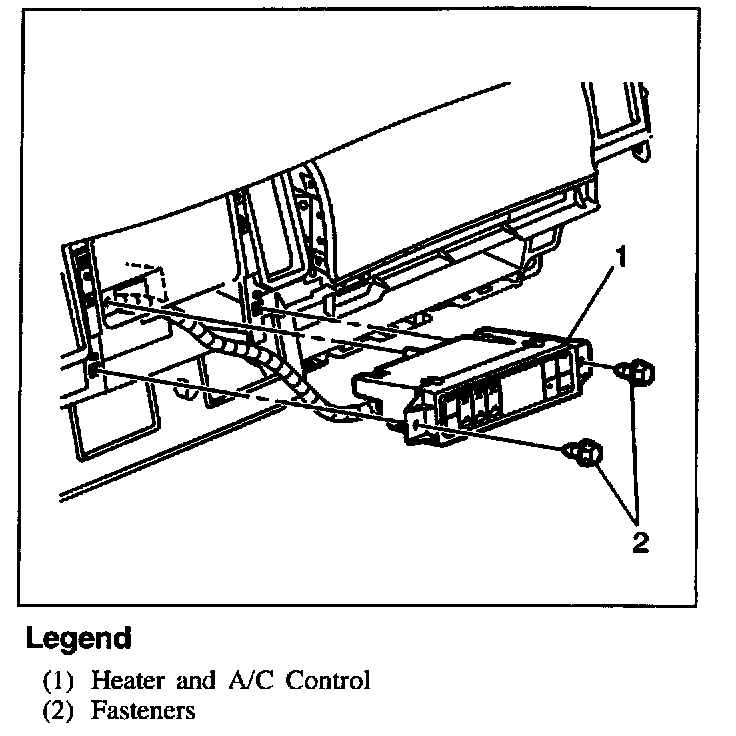

Heater And A/C Controls Removal:

REMOVE OR DISCONNECT
1. IP cluster trim plate.
2. Fasteners securing radio or heater and A/C control.
3. Pull rearward.
4. Electrical connector(s) and/or antenna lead.
^ Transfer radio mounting bracket if radio is being replaced.

INSTALL OR CONNECT
1. Electrical connector(s) and/or antenna lead.
2. Radio or heater and A/C control.
3. Fasteners.

Tighten
Fasteners to 1.8 N.m (16 lb in).

4. IP cluster trim plate.
